3186 Dual Stacked LPDA Antenna
ETS-Lindgren's Model 3186 is a dual stacked log periodic dipole array antenna (LPDA), each of the two separate LPDAs comprising the dual array are 100 Ω antennas. When assembled in parallel, the results are a 50 Ω input impedance array.






ETS-Lindgren's Model 3186 is a dual stacked log periodic dipole array antenna (LPDA), each of the two separate LPDAs comprising the dual array are 100 Ω antennas. When assembled in parallel, the results are a 50 Ω input impedance array. This array provides increased gain when compared to a single LPDA. The arrangement of the two LPDA in the arrays provides a very constant pattern across the entire frequency range.

This antenna is ideal as a receive antenna for CISPR emissions testing above 1 GHz. It is also ideal when performing the site VSWR test as per CISPR 16.

Key Product Information


​​Frequency Range

The antenna covers a frequency range of 1 GHz to 18 GHz, making it ideal as a receive antenna for CISPR 16 based testing above 1 GHz. This antenna can be used with ETS-Lindgren’s Model 3183 for performing the site VSWR chamber validation method per CISPR 16.

Low VSWR

The typical VSWR for the model 3186 is less than 2:1.

Low Input Power

This antenna is mainly a receive antenna, with a maximum input power of 20W continuous wave and a peak power of 30W.

Constant Beamwidth and Flat Directivity

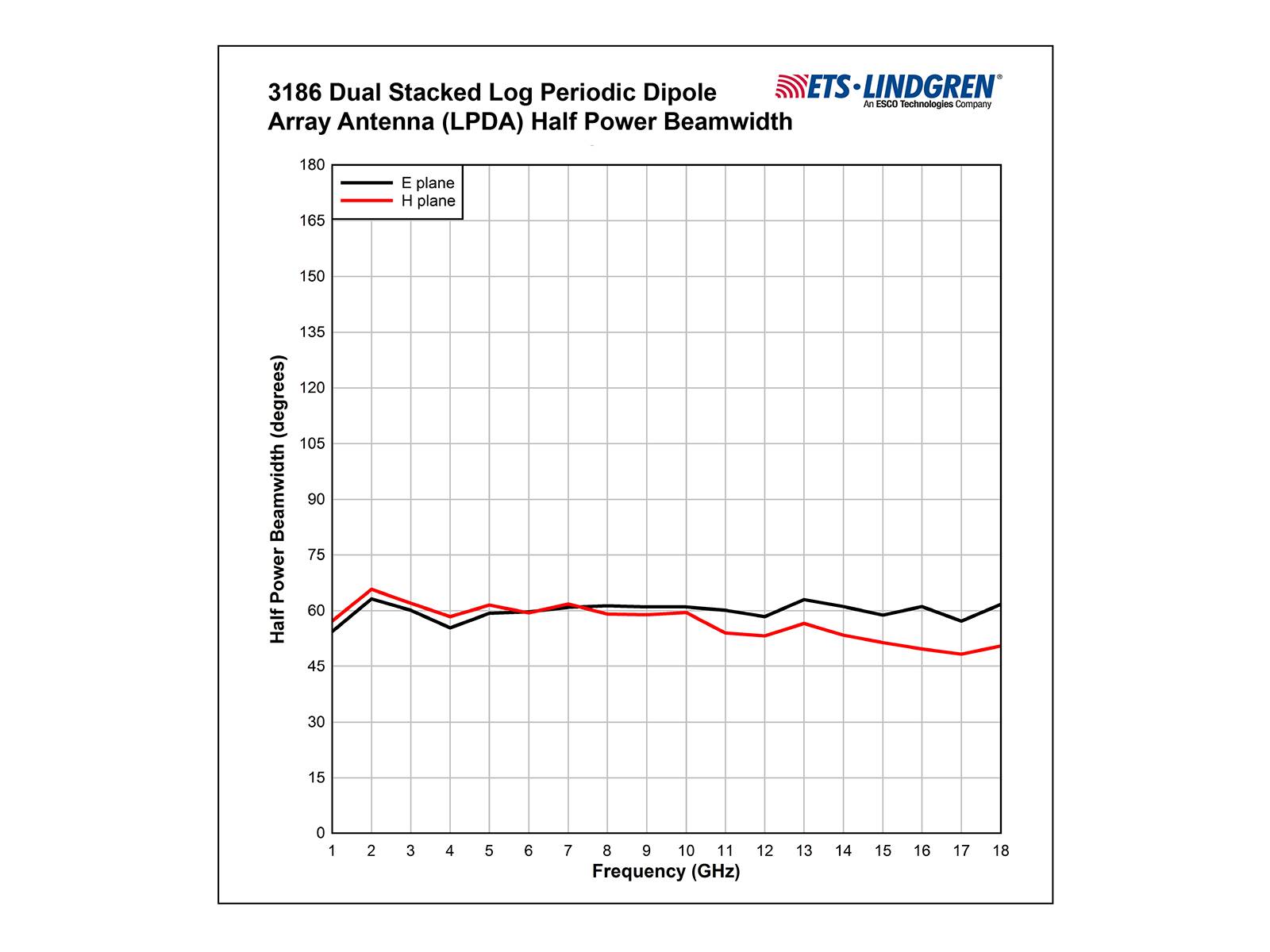

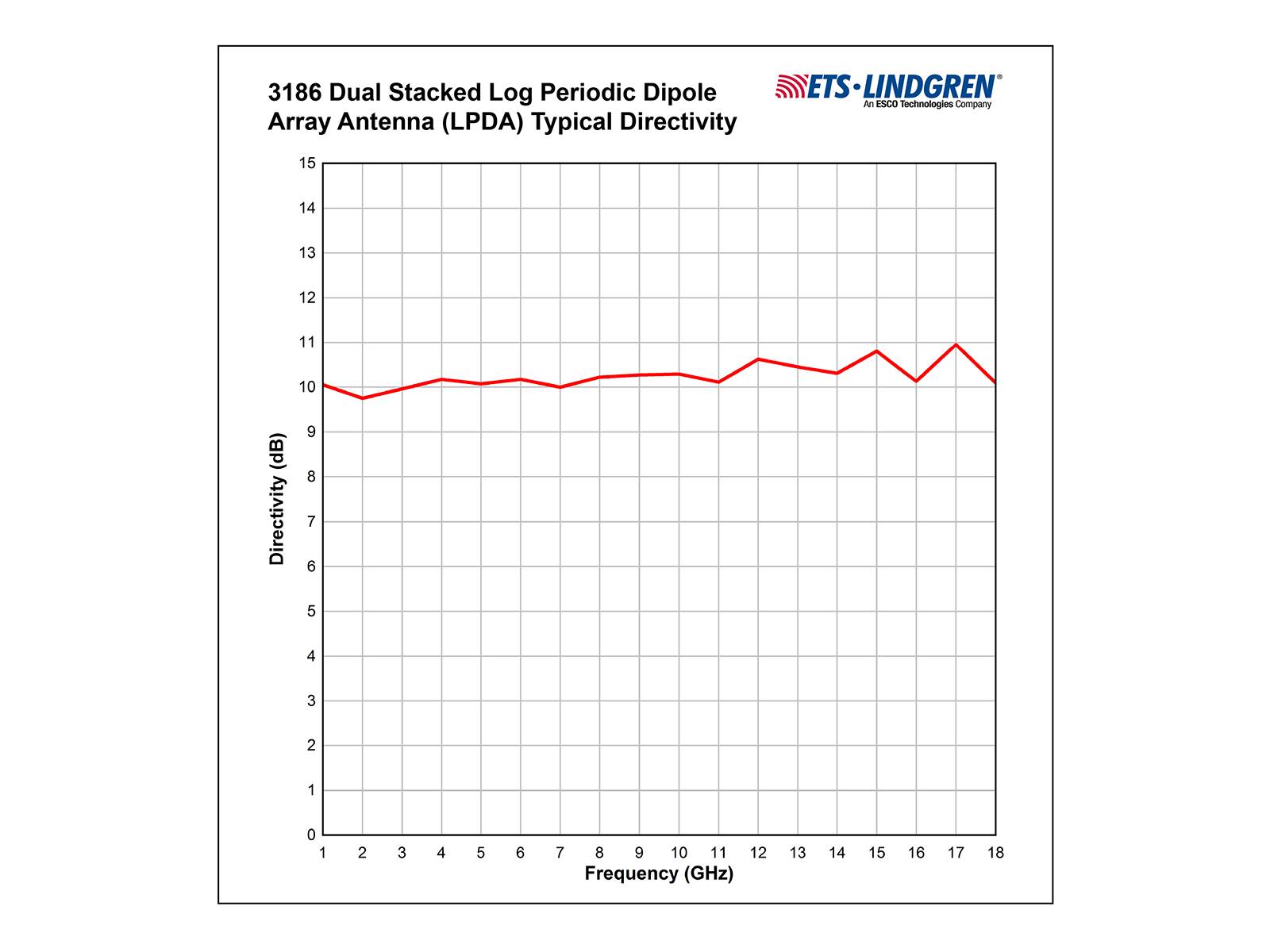

The model 3186 was designed to provide a very constant illumination from 1 GHz to 18 GHz. The Beamwidth in the two principal planes is 59.8 degrees for the E-plane (the polarization plane) and 57.0 degrees for the H-plane (the orthogonal plane) while the directivity is about 10 dB across the entire frequency range.

Specifications Select a tab below for more information



Frequency Minimum: 1 GHz
Maximum Continuous Power: 20 W
Impedance (Nominal): 50 Ω
VSWR (Average): 2:1
Connector: SMA (Female)
Pattern Type: Directional
Polarization: Linear
Width: 19.7 cm (7.76 in)
Length: 44.1 cm (17.36 in)
Height: 19.7 cm (7.76 in)
Weight: .7 kg (1.54 lb)
  • Antenna
  • Mounting Fixture for 1/4 in x 20 Threads
  • Individually Calibrated Factors at 3m per SAE ARP 958
  • Manual
  • ETS-Lindgren Offers Several Non-metallic, Non-reflective Tripods







3148B Log Periodic Dipole Array http://www.ets-lindgren.com/products/antennas/log-periodic-dipole-array/4017/4017043148B Log Periodic Dipole Array
3150B Dual Stacked LPDA Antenna http://www.ets-lindgren.com/products/antennas/log-periodic-dipole-array/4017/4017053150B Dual Stacked LPDA Antenna
3151 Log Periodic Dipole Array http://www.ets-lindgren.com/products/antennas/log-periodic-dipole-array/4017/4017063151 Log Periodic Dipole Array
3144 Log Periodic Dipole Array http://www.ets-lindgren.com/products/antennas/log-periodic-dipole-array/4017/4017013144 Log Periodic Dipole Array
3147 Log Periodic Dipole Array Antenna http://www.ets-lindgren.com/products/antennas/log-periodic-dipole-array/4017/4017033147 Log Periodic Dipole Array Antenna
3145BDP Dual-Polarized Log-Periodic Dipole Array http://www.ets-lindgren.com/products/antennas/log-periodic-dipole-array/4017/4017023145BDP Dual-Polarized Log-Periodic Dipole Array
3186 Dual Stacked LPDA Antenna http://www.ets-lindgren.com/products/antennas/log-periodic-dipole-array/4017/4017083186 Dual Stacked LPDA Antenna
3152 Dual Array of LPDA Antennas http://www.ets-lindgren.com/products/antennas/log-periodic-dipole-array/4017/4017073152 Dual Array of LPDA Antennas

Key Features


  • 1 GHz to 18 GHz Frequency Range
  • 2:1 VSWR Average
  • Up to 20W Input Power
  • Constant E- and H-Plane Beamwidth
  • Flat Directivity
