3148B Log Periodic Dipole Array
ETS-Lindgren's Model 3148B Log Periodic Dipole Array Antenna is specifically designed for making CISPR 16-1 measurements which require a 20 dB difference in the cross polarization rejection.






ETS-Lindgren's Model 3148B Log Periodic Dipole Array Antenna is specifically designed for making CISPR 16-1 measurements which require a 20 dB difference in the cross polarization rejection. This is achieved using an engineering design and manufacturing process that offsets all of the elements in a precision pattern. The excellent cross-polarization property ensures minimum measurement uncertainty for radiated emissions and normalized site attenuation measurement.

The precision construction of the assembly of the boom and elements result in excellent VSWR and optimal phase relationship. The model 3148B antenna features relatively constant linear gain (measures in far field without any sudden “dips” or “bumps”). A Type N connector is provided.

Key Product Information


​​​​Frequency Range

The frequency range of the model 3148B is 200 MHz to 2 GHz. This makes the 3148B ideal for CISPR 16 testing and other standards based on it, such as CISPR 25.

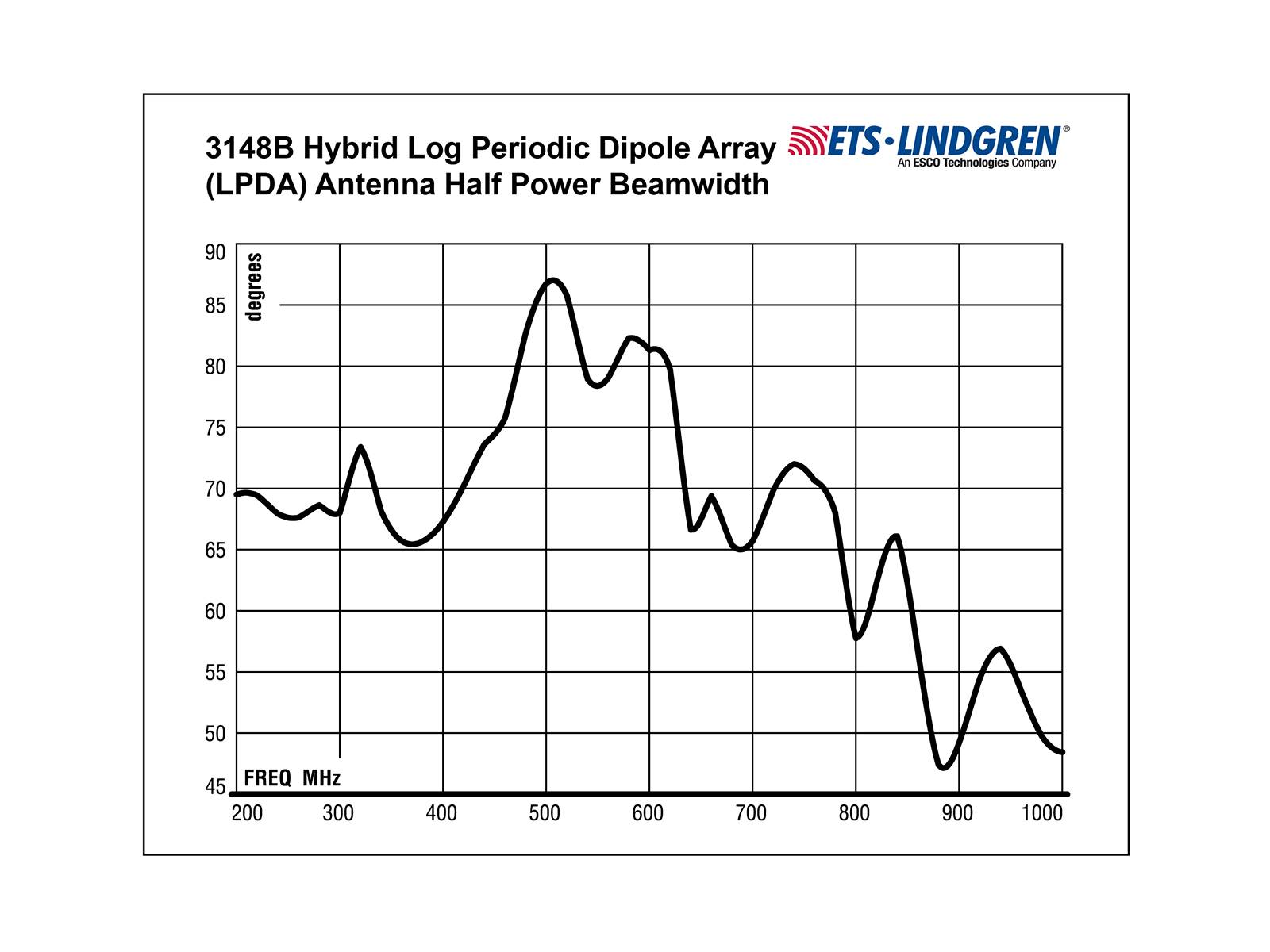

High Gain

The model 3148B’s design provides a balance between the shortest antenna and the highest possible gain, with a 5 dB average gain over its frequency.

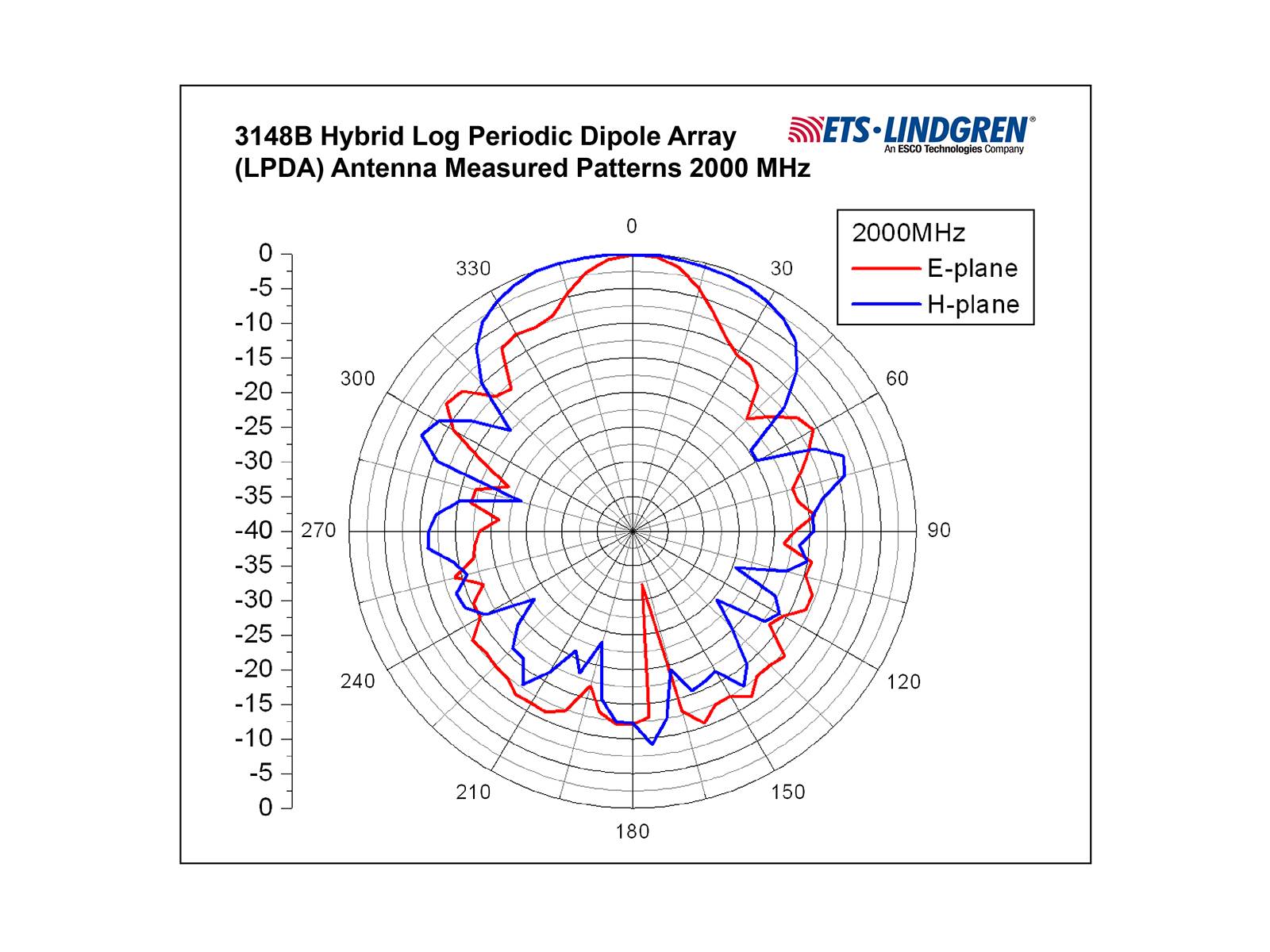

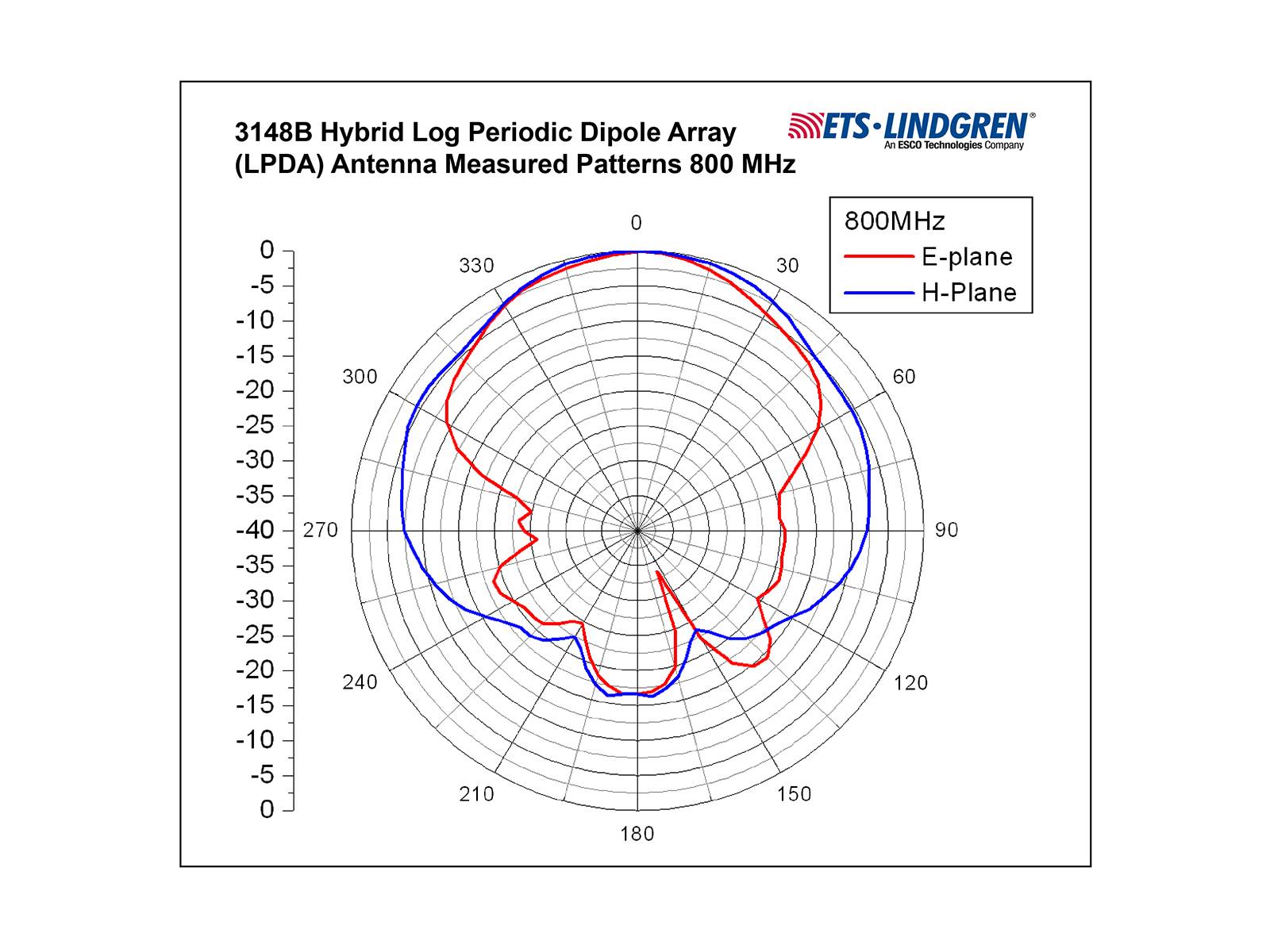

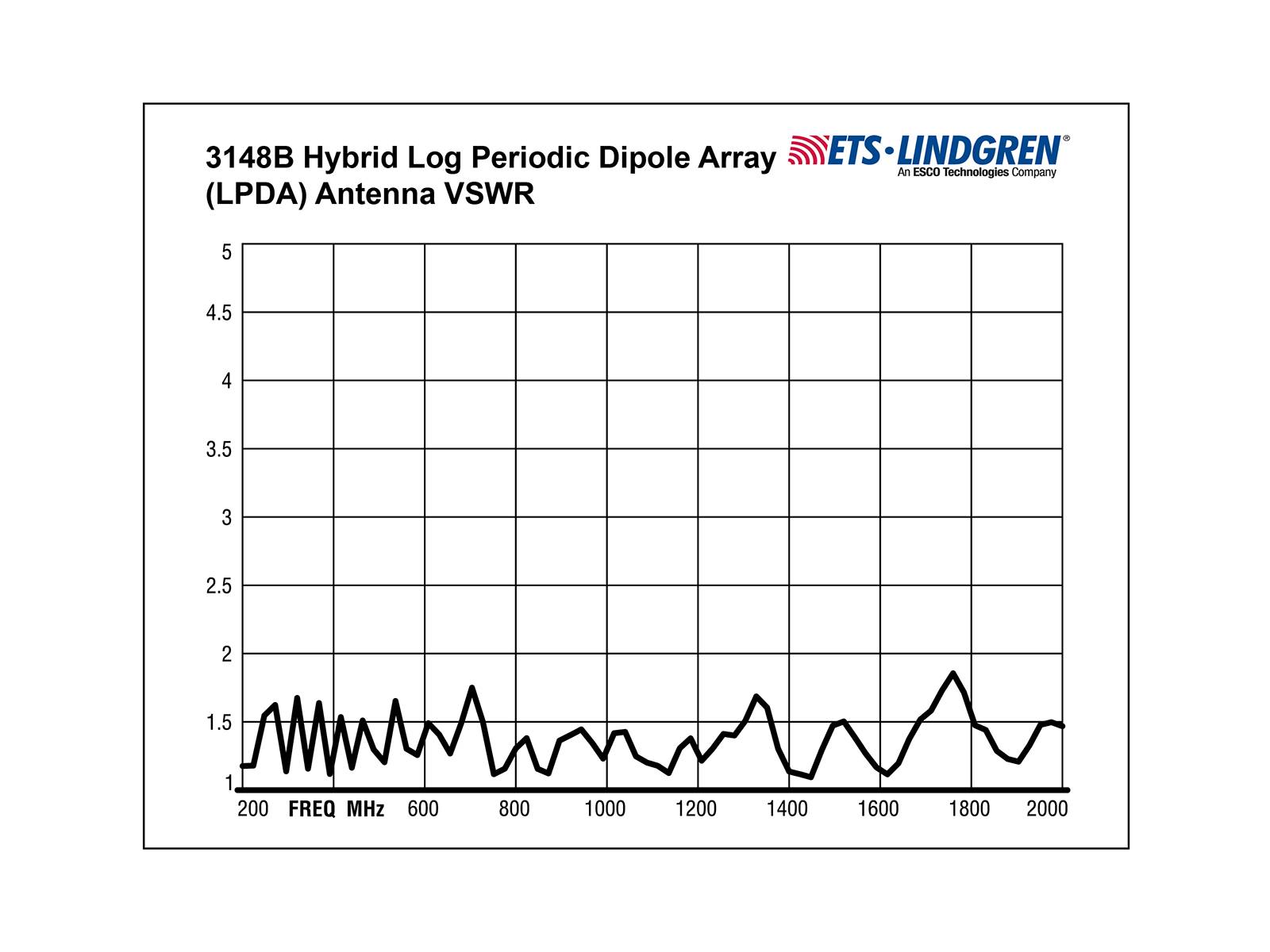

Low VSWR

The choice of spacing between booms and the changing element diameter provide excellent impedance of the antenna. This results in a in low VSWR.

Individually Calibrated

The 3148B is individually calibrated at 1 m per SAE ARP 958 and 3 m and 10 m per ANSI C63.5. This antenna also comes with a signed Certificate of Calibration Conformance.

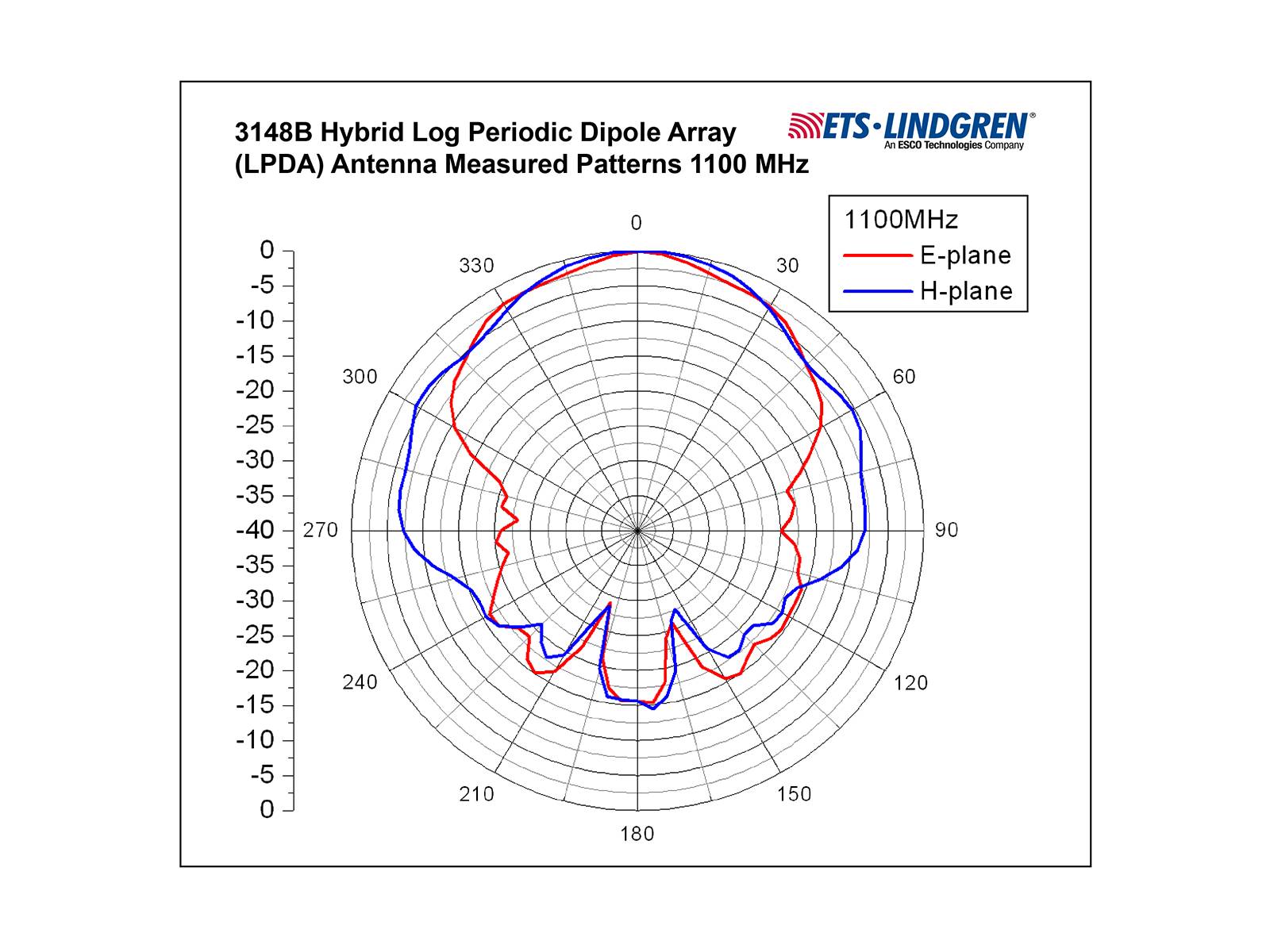

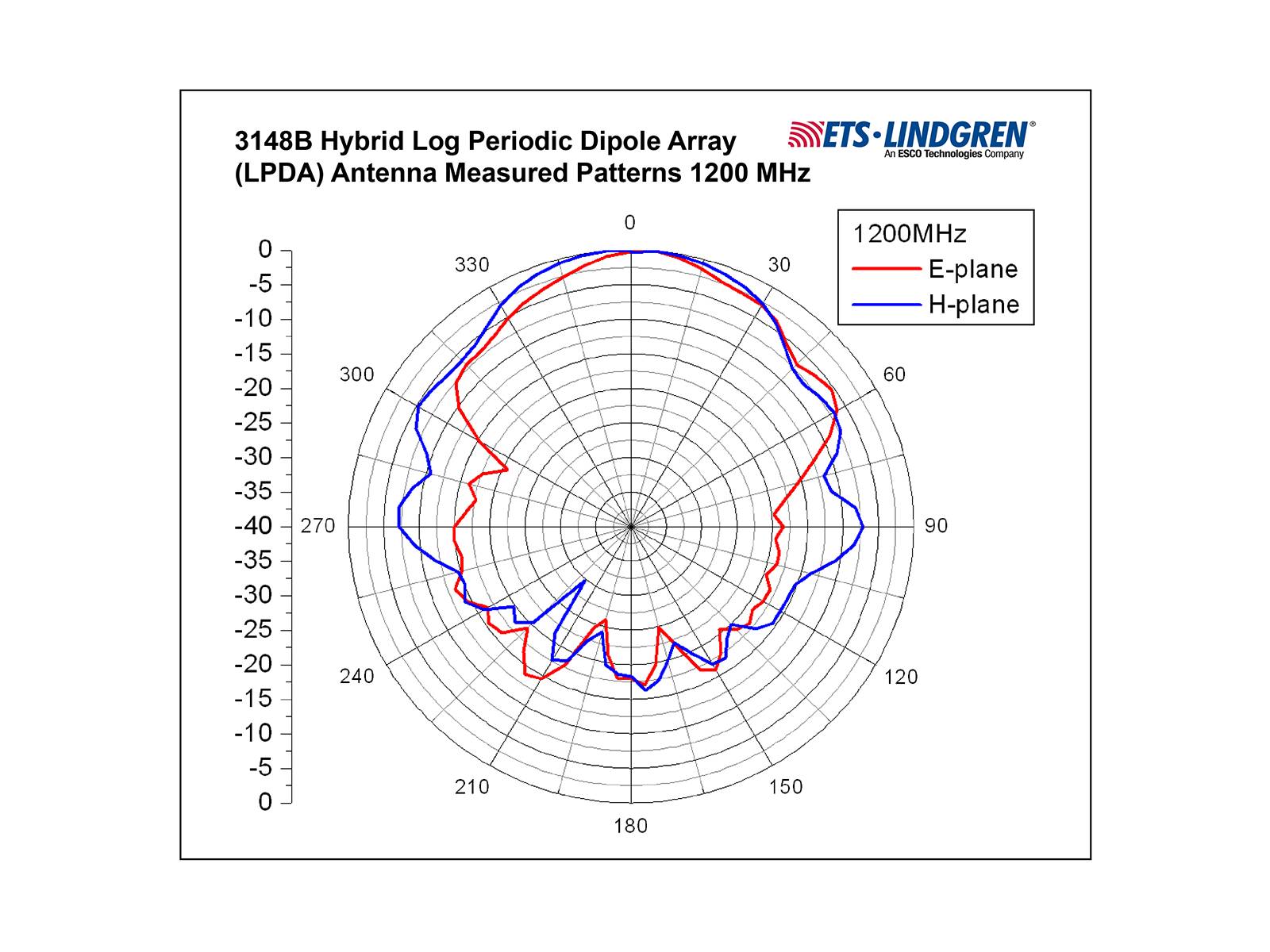

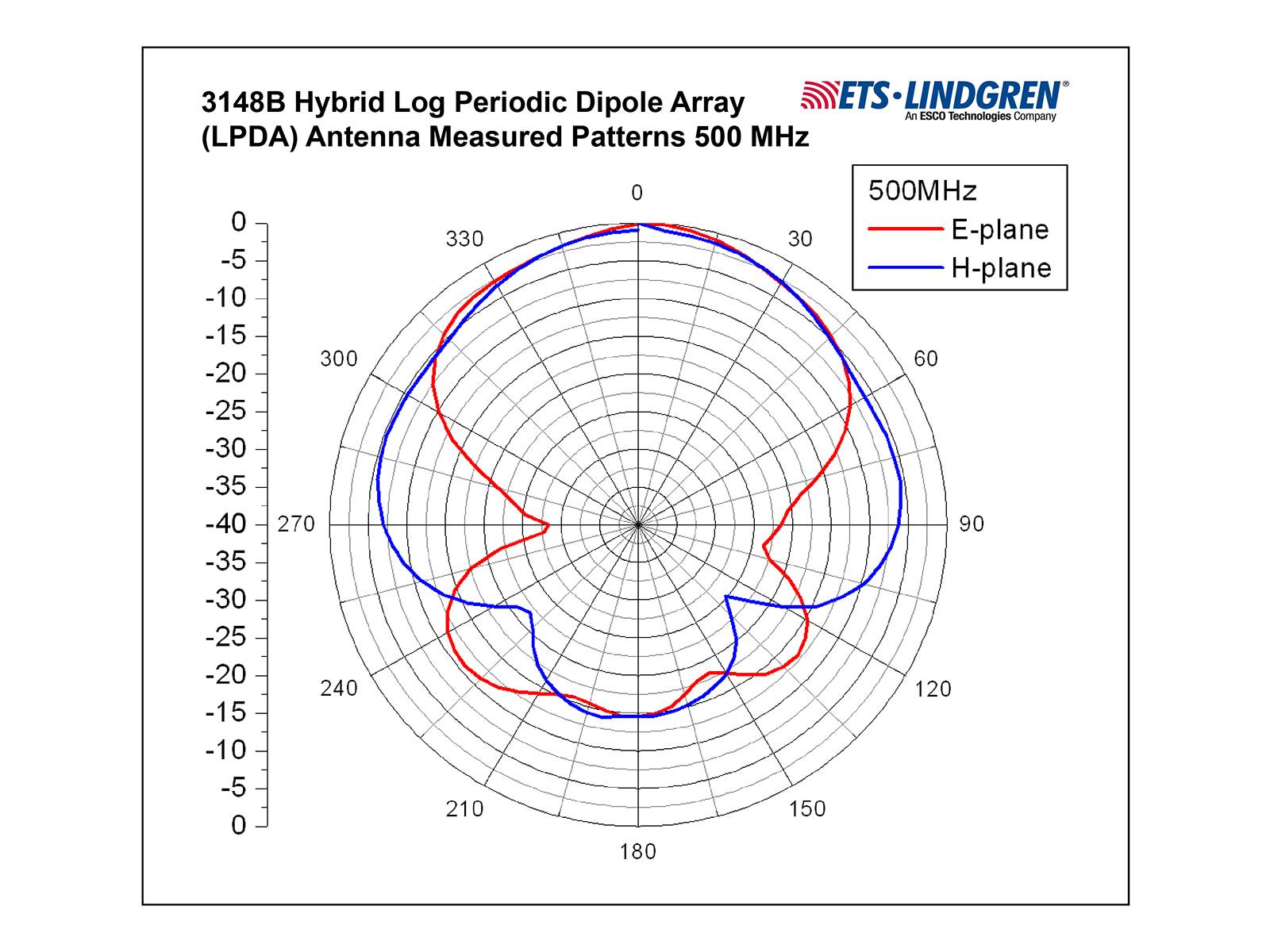

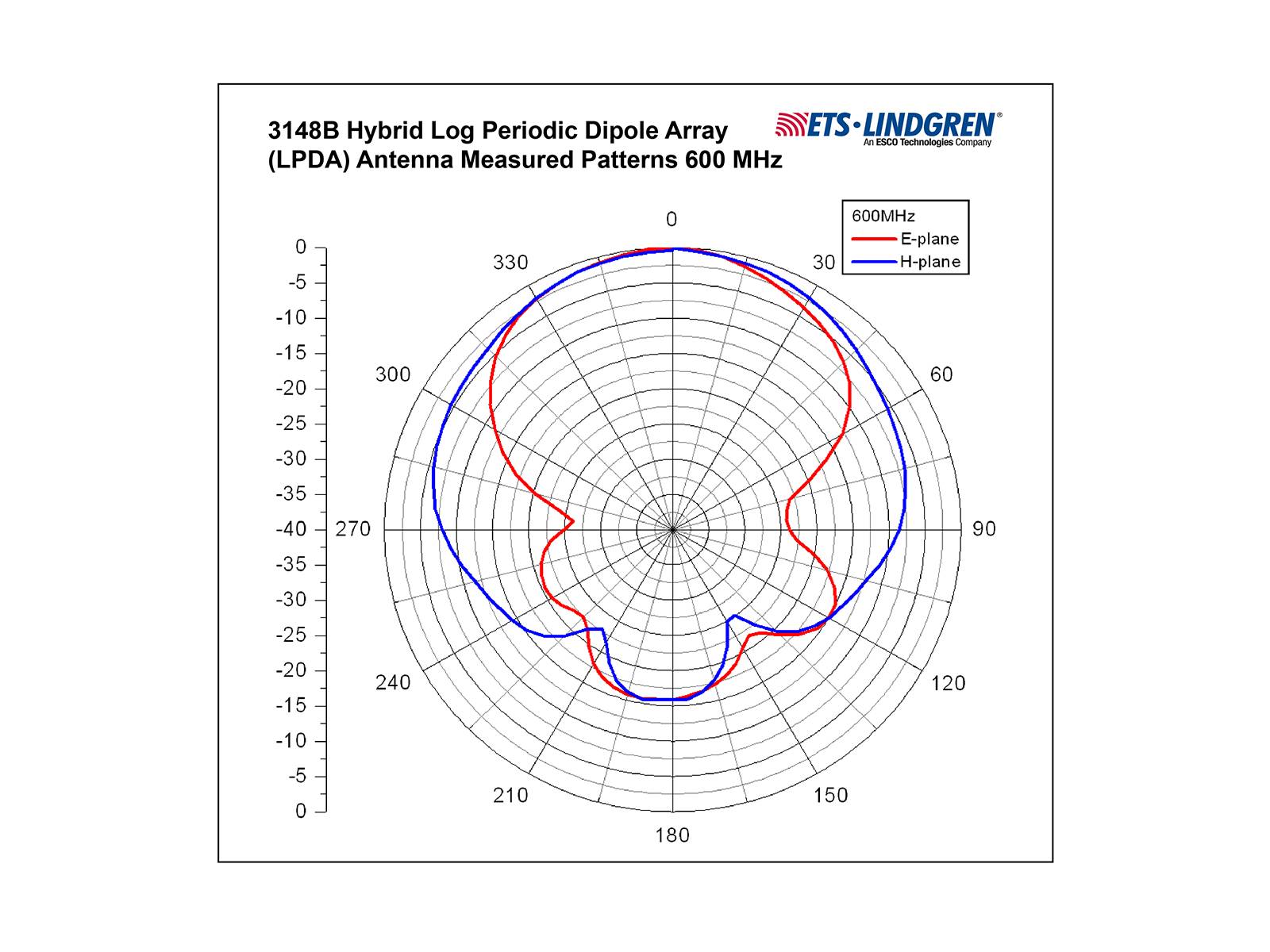

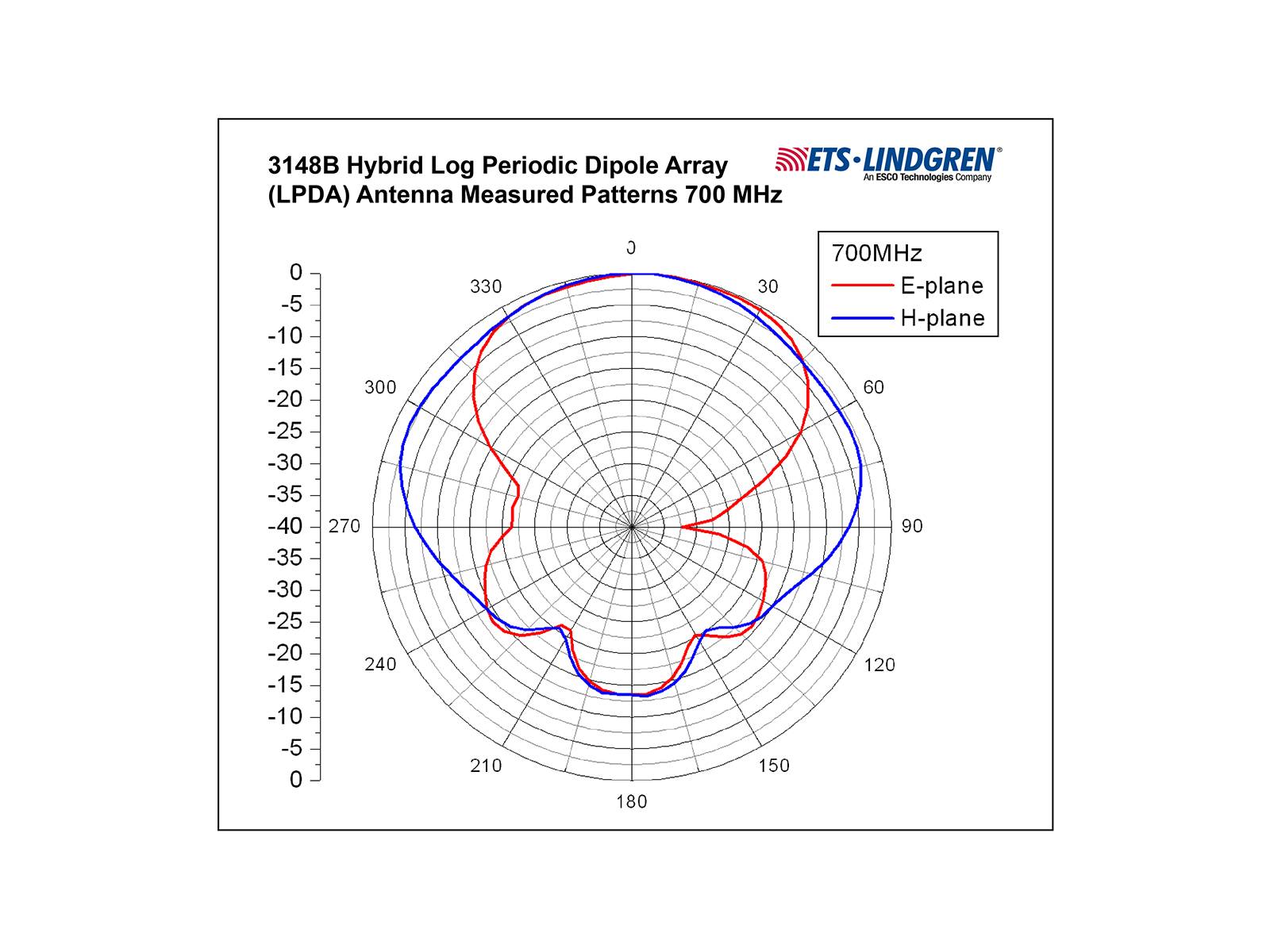

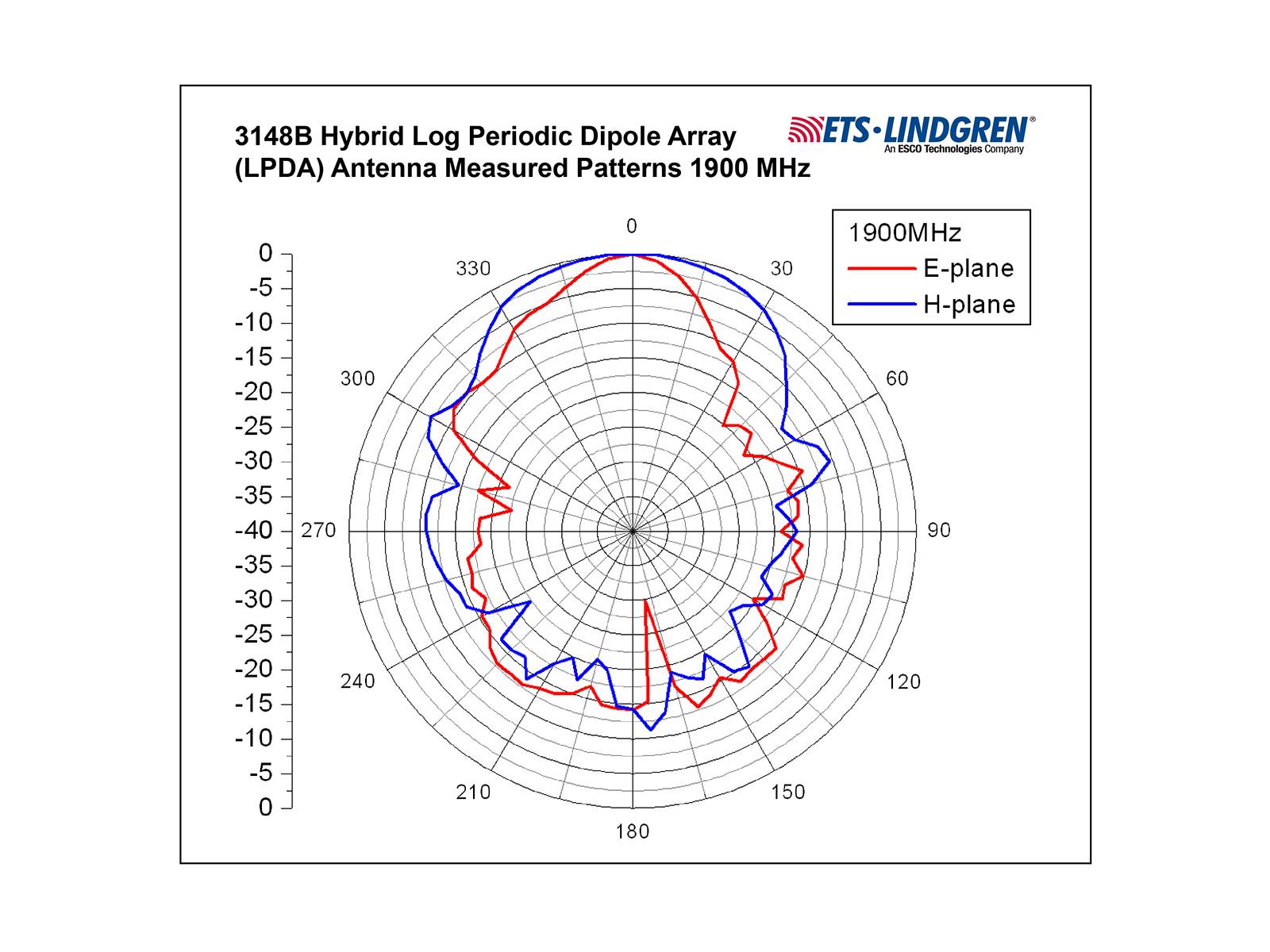

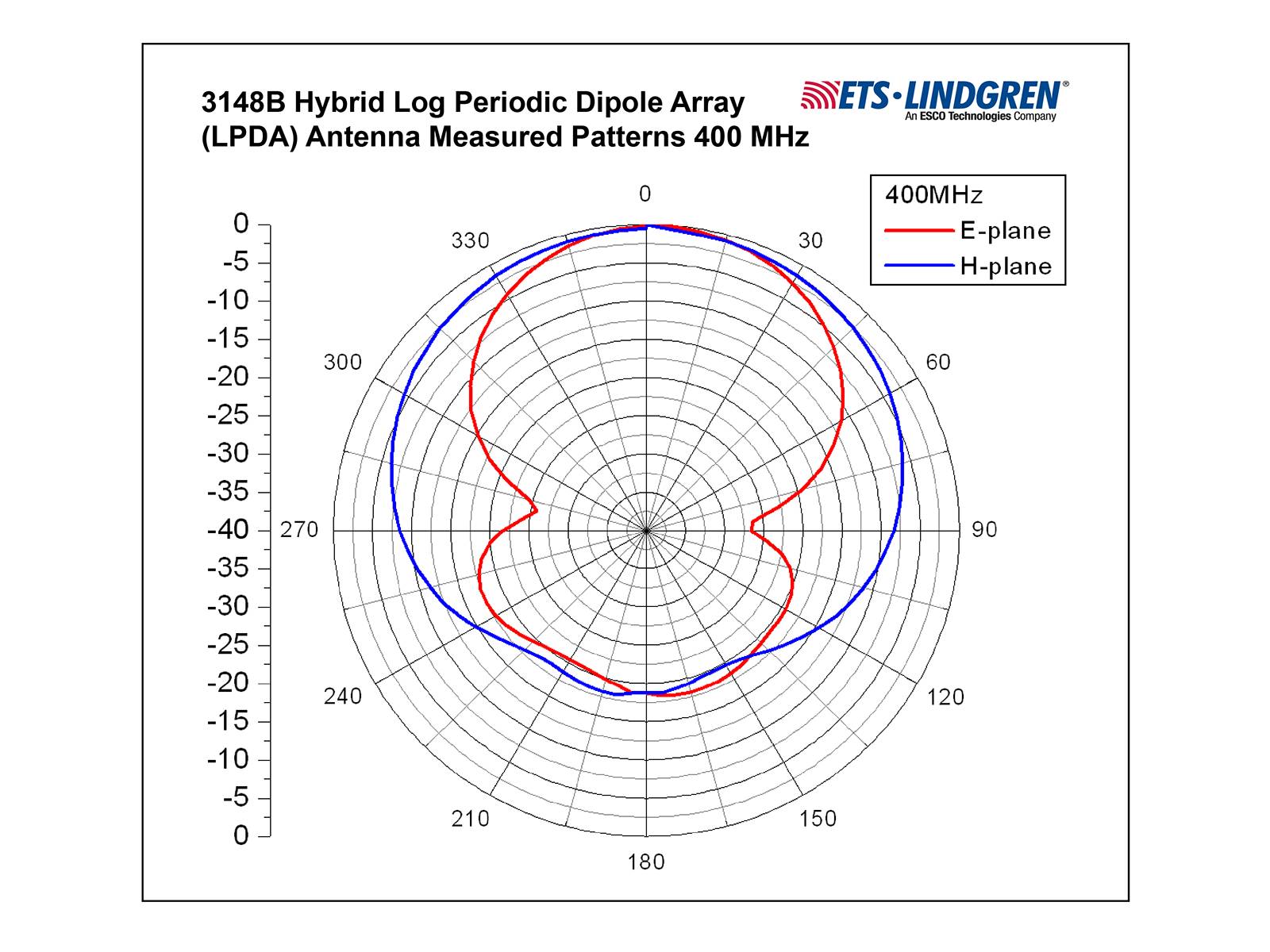

Specifications Select a tab below for more information



Frequency Minimum: 200 MHz
Frequency Maximum: 2 GHz
Connectors: Type N (f)
Impedance (Nominal): 50 Ω

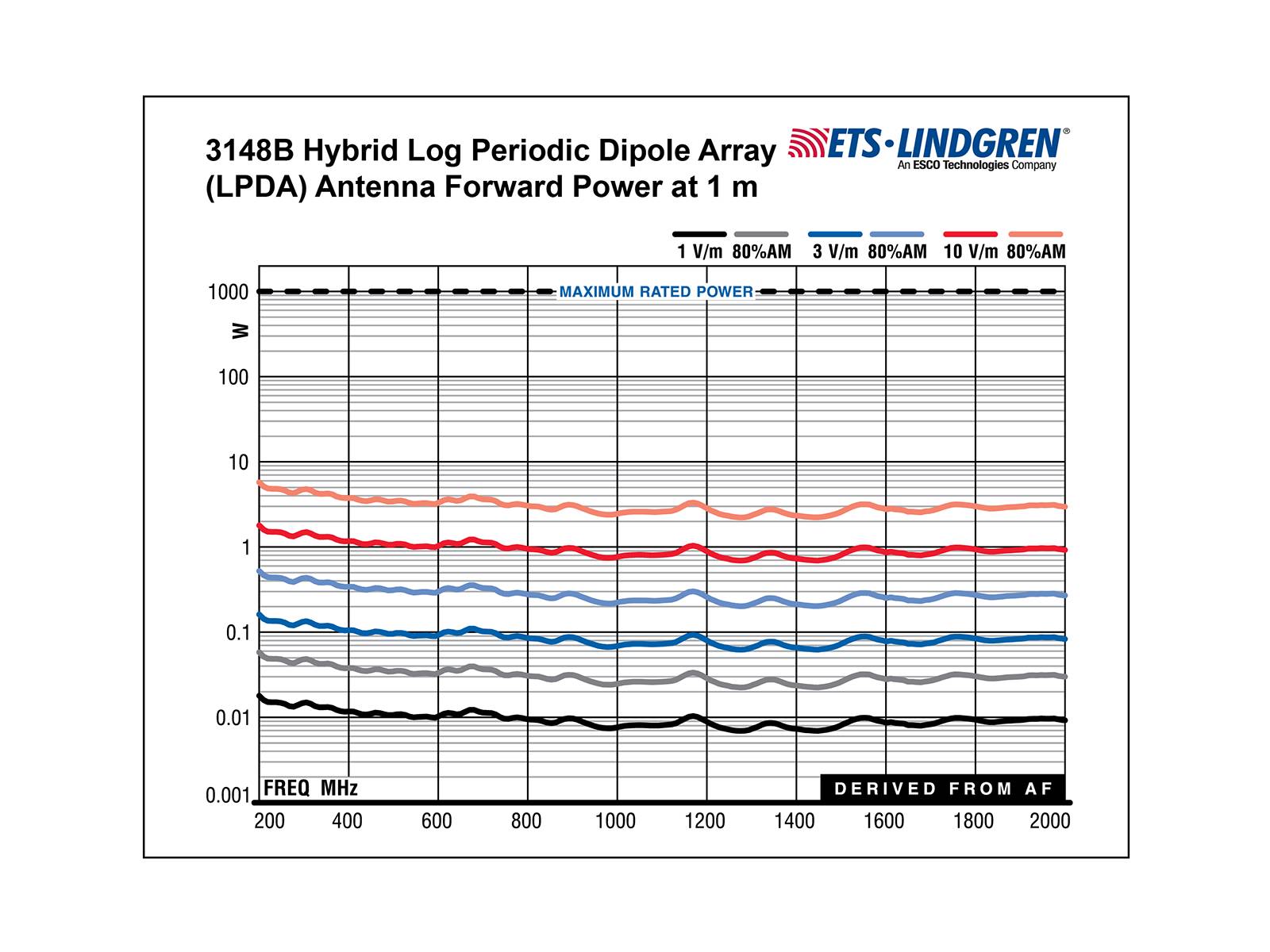

Maximum Continuous Power: 1 kW
Peak Power: 1.3 kW
VSWR: 1.2:1
Polarization: Linear
Pattern Type: Directional
Depth: 86.7 cm (34.13 in)
Height: 11.6 cm (4.57 in)
Length: 73.7 cm (29.02 in)
Width: 85.6 cm (33.70 in)
Weight: 2 kg (4.41 lb)
  • Antenna
  • Individually Calibrated at 1 m per SAE ARP 958

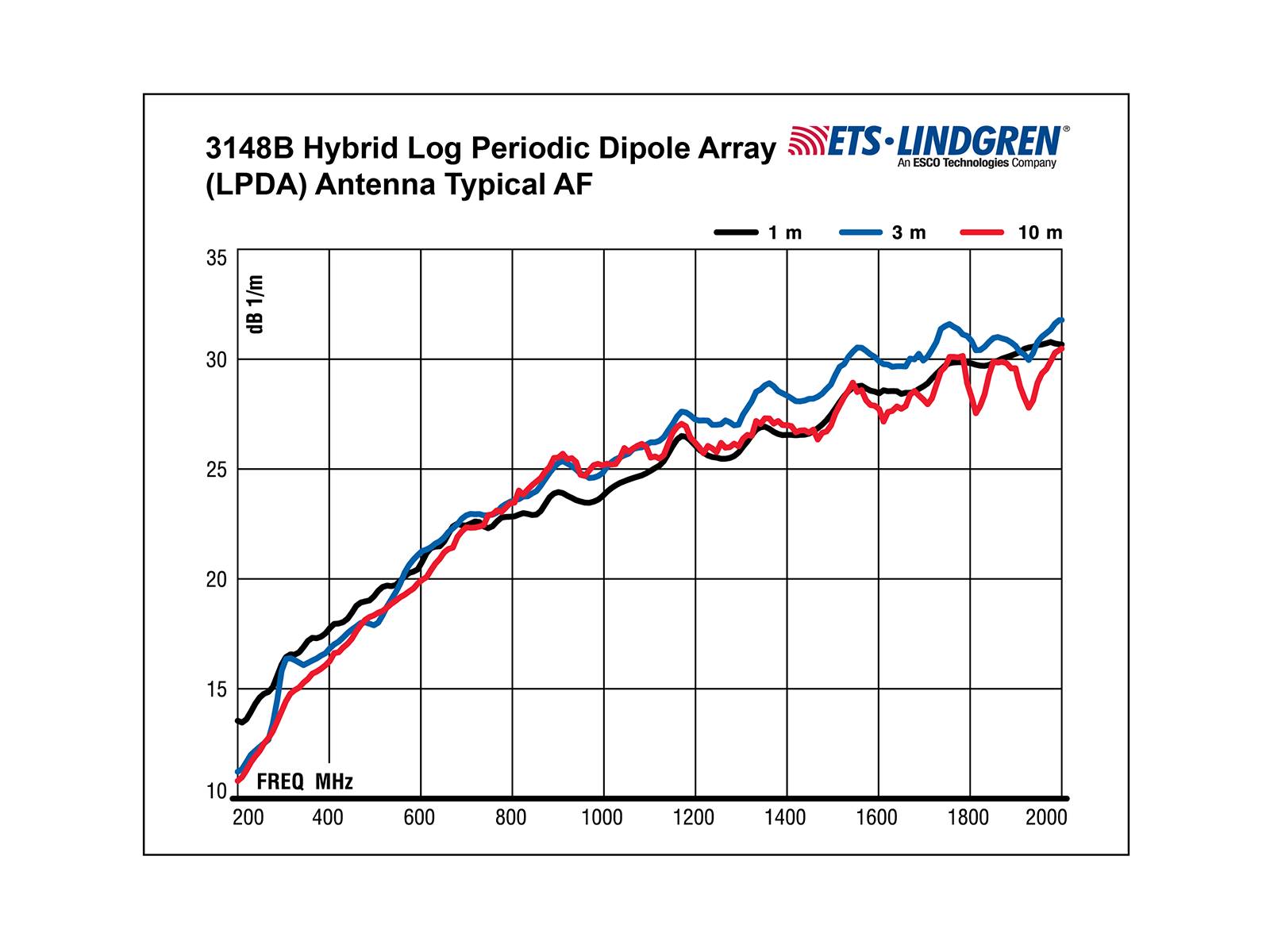

  • Actual Antenna Factors and Signed Certificate of Calibration Conformance Provided





3148B Log Periodic Dipole Array http://www.ets-lindgren.com/products/antennas/log-periodic-dipole-array/4017/4017043148B Log Periodic Dipole Array
3150B Dual Stacked LPDA Antenna http://www.ets-lindgren.com/products/antennas/log-periodic-dipole-array/4017/4017053150B Dual Stacked LPDA Antenna
3151 Log Periodic Dipole Array http://www.ets-lindgren.com/products/antennas/log-periodic-dipole-array/4017/4017063151 Log Periodic Dipole Array
3144 Log Periodic Dipole Array http://www.ets-lindgren.com/products/antennas/log-periodic-dipole-array/4017/4017013144 Log Periodic Dipole Array
3147 Log Periodic Dipole Array Antenna http://www.ets-lindgren.com/products/antennas/log-periodic-dipole-array/4017/4017033147 Log Periodic Dipole Array Antenna
3145BDP Dual-Polarized Log-Periodic Dipole Array http://www.ets-lindgren.com/products/antennas/log-periodic-dipole-array/4017/4017023145BDP Dual-Polarized Log-Periodic Dipole Array
3186 Dual Stacked LPDA Antenna http://www.ets-lindgren.com/products/antennas/log-periodic-dipole-array/4017/4017083186 Dual Stacked LPDA Antenna
3152 Dual Array of LPDA Antennas http://www.ets-lindgren.com/products/antennas/log-periodic-dipole-array/4017/4017073152 Dual Array of LPDA Antennas

Key Features


  • High Gain Meets CISPR Cross Polarization Requirements.
  • Low VSWR
  • Powder Coat Finish
  • Individually Calibrated
