3151 Log Periodic Dipole Array
ETS-Lindgren's Model 3151 Foreshortened Log Periodic Dipole Antenna is a linearly-polarized log periodic dipole array (LPDA).






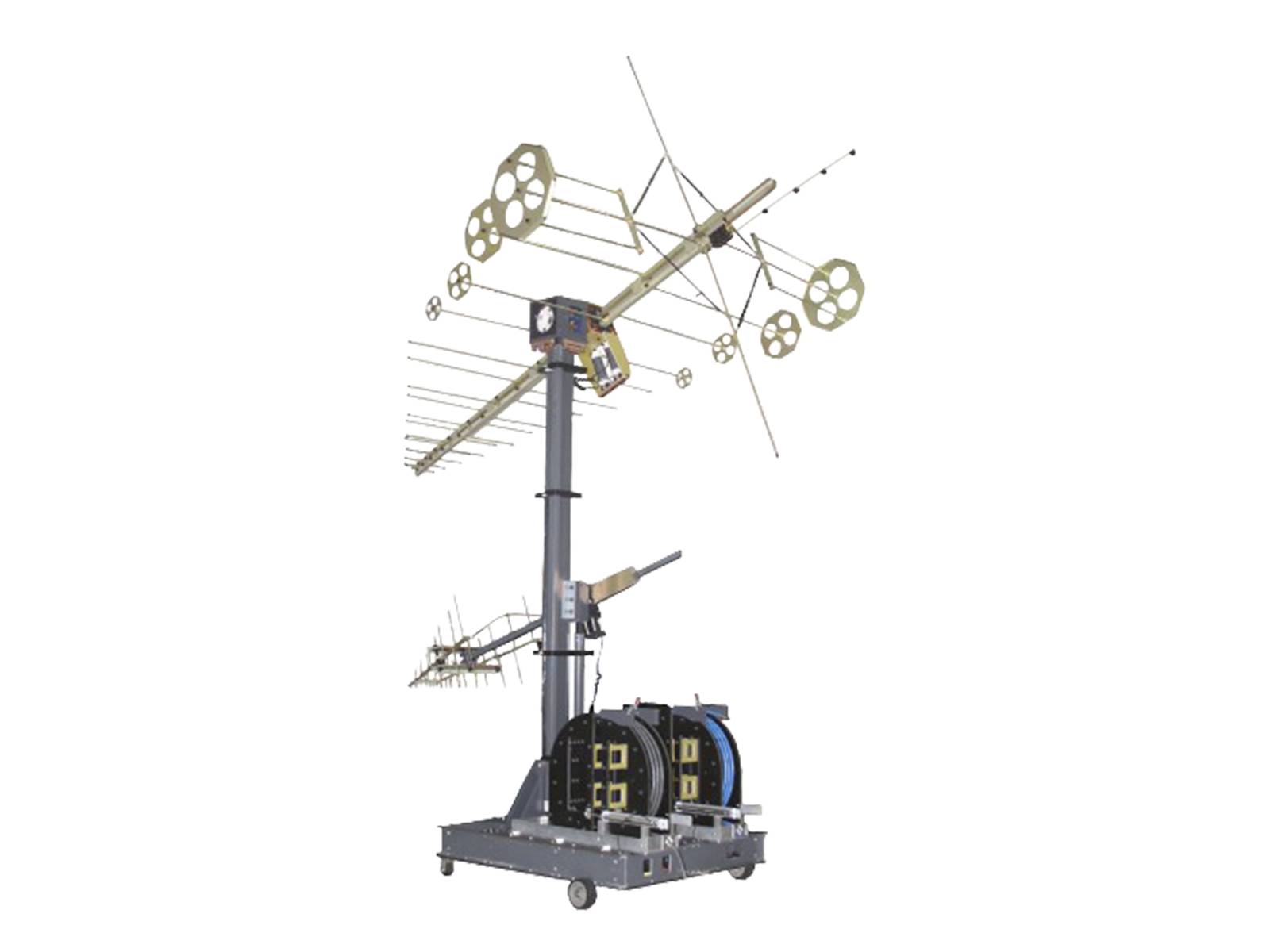

ETS-Lindgren's Model 3151 Foreshortened Log Periodic Dipole Antenna is a linearly-polarized log periodic dipole array (LPDA).​ The 3151 features a convenient space saving design with the use of top hat-loaded, low-frequency elements. This reduced-sized design has optimized impedance loading to simulate the moderate gain of a full-size LPDA. Without size reduction, the longest dipole element length would be approximately 7.5 m (24.6 ft). Instead, this antennas entire width is only 3.5 m (11.5 ft).

To enhance measurement repeatability, the model 3151’s longest elements are supported with nylon straps to ensure consistent element positioning. The 3151 antenna features a specially-designed feed to handle high power requirements of up to 5 kW for generating high electric field strength. A hairpin matching stub is used to improve the low-frequency VSWR, which minimizes mismatch loss between the amplifier and antenna.

The antenna is constructed of lightweight, corrosion-resistant aluminum, providing years of trouble-free service. All elements are attached with knurled knobs for easy assembly. The included wheeled pedestal permits horizontal and vertical antenna polarization, and tilt-angle adjustments. A pneumatic cylinder is used to change polarization, and can be remotely controlled using an optional ETS-Lindgren controller.

Key Product Information

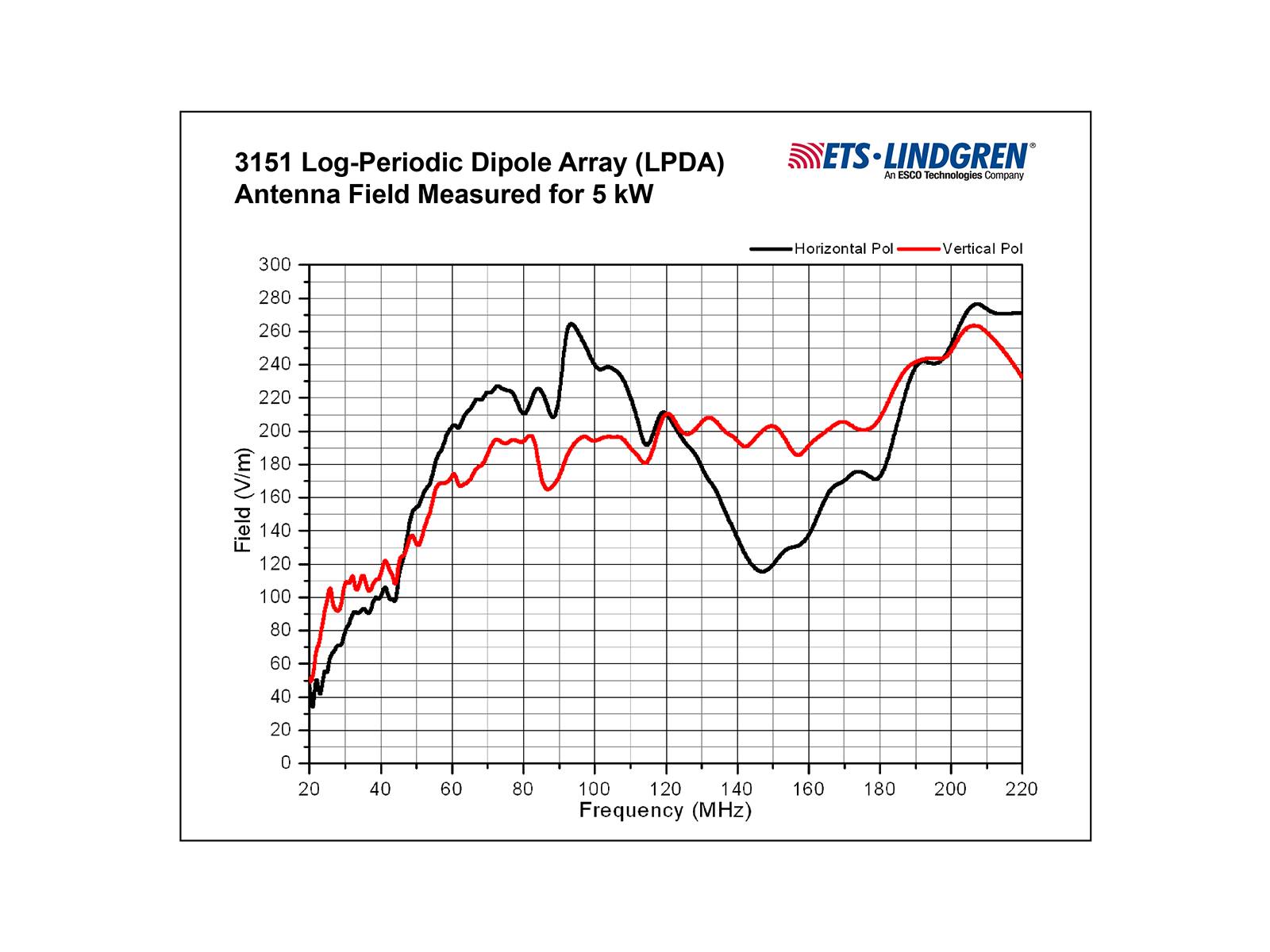

​​Electric Field Distribution

The model 3151 is used for both horizontal and vertical polarizations. The phase center /source position of the antenna shifts from the rear to the front end of the boom as frequency increases. To ensure a high field strength at the low frequency range (30 MHz to 45 MHz), the LPDA antenna needs to be placed at a close distance. However, the beam width of the antenna gets narrower at higher frequencies. Therefore, the antenna needs to be placed at a farther distance at higher frequencies to cover a larger uniform area. If the same distance is kept for the high and low frequency ranges, the field uniformity is compromised above 80 MHz.



Specifications Select a tab below for more information



Frequency Maximum: 220 MHz
Frequency Minimum: 20 MHz
Pattern Type: Directional
Polarization: Linear
  • Tophat-loaded LPDA Antenna with 1 5/8" EIA Connector
  • Mounting Bracket
  • Air Polarization Control Assembly
  • Standard Fixed Height Pedestal Positioner with Air Polarization and Manually Adjusted Tilt





3148B Log Periodic Dipole Array http://www.ets-lindgren.com/products/antennas/log-periodic-dipole-array/4017/4017043148B Log Periodic Dipole Array
3150B Dual Stacked LPDA Antenna http://www.ets-lindgren.com/products/antennas/log-periodic-dipole-array/4017/4017053150B Dual Stacked LPDA Antenna
3151 Log Periodic Dipole Array http://www.ets-lindgren.com/products/antennas/log-periodic-dipole-array/4017/4017063151 Log Periodic Dipole Array
3147 Log Periodic Dipole Array Antenna http://www.ets-lindgren.com/products/antennas/log-periodic-dipole-array/4017/4017033147 Log Periodic Dipole Array Antenna
3144 Log Periodic Dipole Array http://www.ets-lindgren.com/products/antennas/log-periodic-dipole-array/4017/4017013144 Log Periodic Dipole Array
3145BDP Dual-Polarized Log-Periodic Dipole Array http://www.ets-lindgren.com/products/antennas/log-periodic-dipole-array/4017/4017023145BDP Dual-Polarized Log-Periodic Dipole Array
3186 Dual Stacked LPDA Antenna http://www.ets-lindgren.com/products/antennas/log-periodic-dipole-array/4017/4017083186 Dual Stacked LPDA Antenna
3152 Dual Array of LPDA Antennas http://www.ets-lindgren.com/products/antennas/log-periodic-dipole-array/4017/4017073152 Dual Array of LPDA Antennas

Key Features


  • 20 MHz to 220 MHz Frequency Range
  • High Power Feed Handles up to 5 kW RF Input Power
  • Space Saving Design Features Tophat-loaded, Low-frequency Elements
  • Mounted on Wheeled Base for Easy Mobility
