Key Features

  • Two Year Warranty
  • Ultra Broadband
  • Low VSWR
  • High Gain
  • Type N connector
  • Download PDF Datasheet
  • ETS-Lindgren's Model 3147 Log Periodic Dipole Array is primarily designed for use with the FCC Part 15. The Model 3147 has excellent VSWR characteristics throughout the entire operating frequency range and has a relatively constant linear gain (measured in the far field).

    This antenna is constructed of precision, corrosion-resistant nickel-plated brass tubing, for years of trouble-free indoor and outdoor use. In addition to the excellent VSWR, precision construction and assembly of the boom also results in an optimal phase relationship.

    Specifications
    View the 3147 Log Periodic Dipole Array Antenna technical specifications below

    Physical Specifications

    Height: 7.6 cm (3.0 in)
    Length: 88 cm (34.7 in)
    Width: 97 cm (38.2 in)
    Weight: 4.2 kg (9.4 lb)

    Electrical Specifications

    Frequency Minimum: 200 MHz
    Frequency Maximum: 5 GHz
    Connectors: Type N (f)
    Impedance (Nominal): 50
    Maximum Continuous Power:
    • 80 W at 1 GHz
    • 40W at 5 GHz
    Peak Power:
    • 100.0 W at 1 GHz
    • 50W at 5 GHz
    Pattern Type: Directional
    Polarization: Linear
    VSWR 1.25:1 Average; 1.7:1 Maximum

    Product Options

    • Nonmetallic and nonconductive mounting tripod

    Product Configuration

    • Antenna
    • Individually Calibrated at 1m per SAE ARP 958 and 10m per ANSI C63.5, horizontal only
    • Actual antenna factors and a signed Certificate of Calibration Conformance provided.
    • Manual

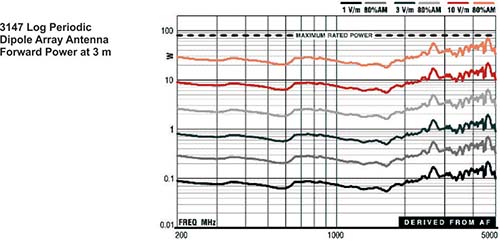

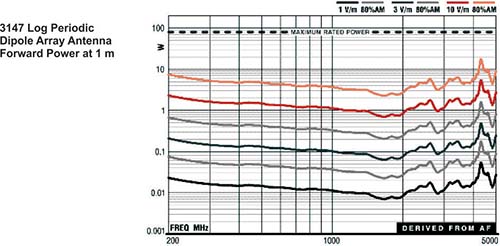

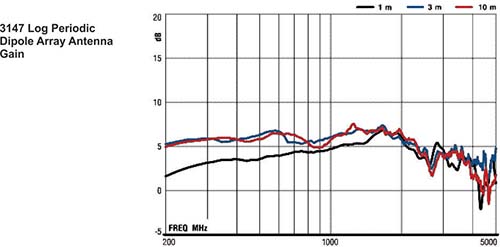

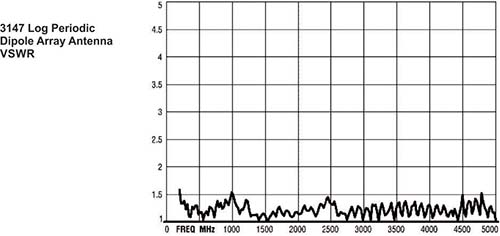

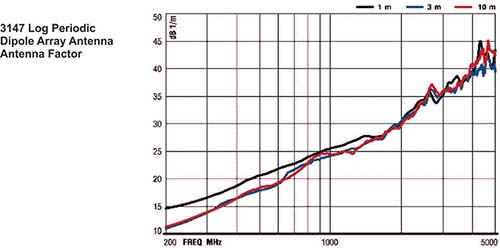

    Charts
    View the 3147 Log Periodic Dipole Array Antenna charts below
