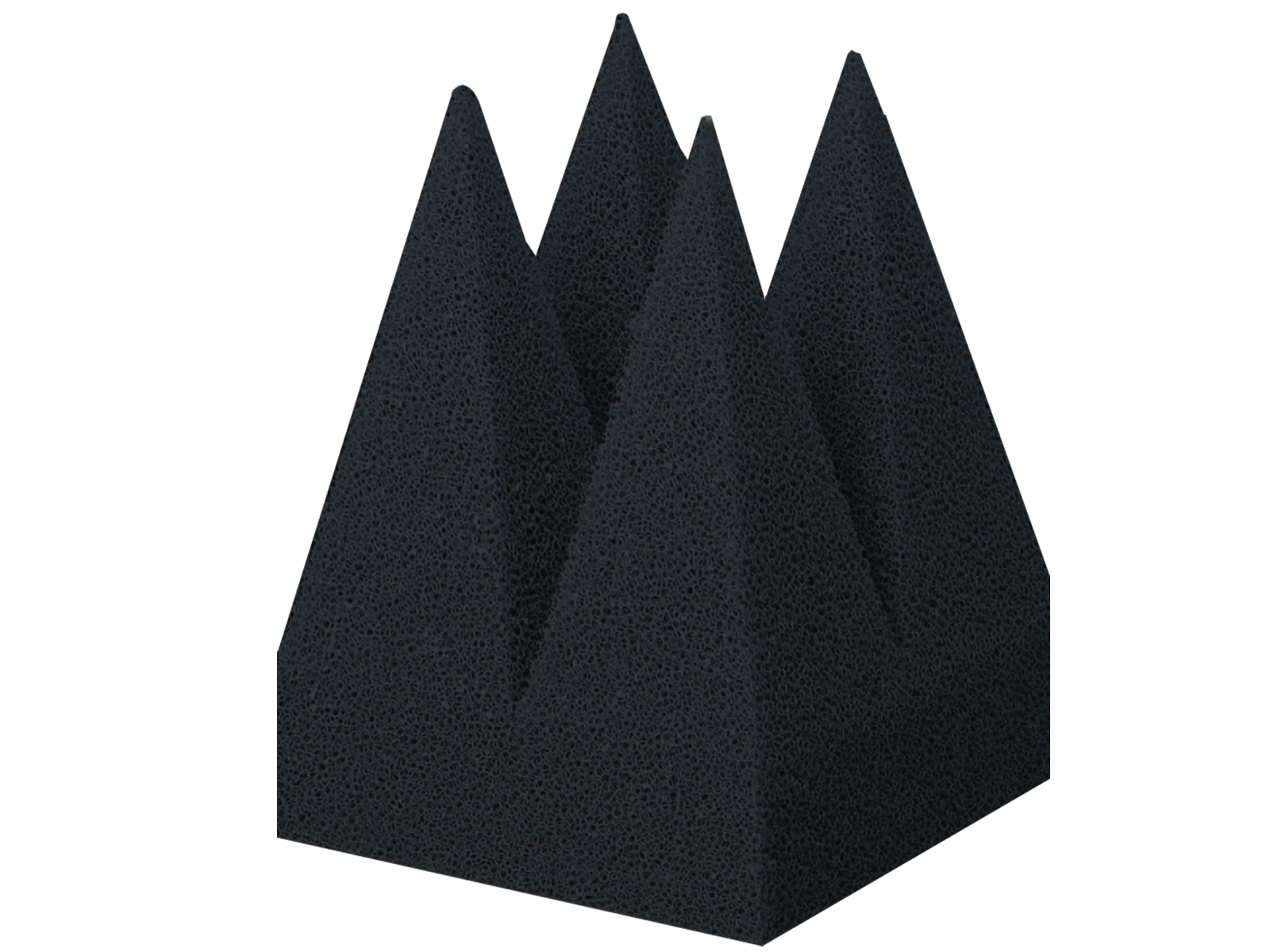

EHP High Performance Microwave Pyramidal Absorber

​ETS-Lindgren's type EHP (Extra High Performance) microwave absorber is designed for use over a wide frequency spectrum and has been used as an effective tool for the reduction of reflections from 30 MHz through 100 GHz.






​​ETS-Lindgren's type EHP (Extra High Performance) microwave absorber is designed for use over a wide frequency spectrum and has been used as an effective tool for the reduction of reflections from 30 MHz through 100 GHz. Each piece of absorber is fabricated of the highest quality urethane foam, which is cut into a precise bun configuration and impregnated with a conductive carbon using a proprietary formulation.

After the addition of salts for the combustion limited version of the absorber, the buns are dried. The buns are then cut into precision shapes, such as pyramidal, wedge, and other geometrical shapes. Each piece of material is treated with a dielectric coating to provide a pleasant appearing, functional unit with superior performance properties.

Whether you need just a few pieces of absorber or a complete turnkey chamber, we have the experience and resources to help you with the right solution.

Key Product Information


Specifications Select a tab below for more information



Maximum Power Density: 775 W/m2, 77.5 mW/cm2, 0.5 W/in2

Frequency Range by Model
ModelFrequency MinimumFrequency Maximum
EHP-3PCL4 GHz
40 GHz
EHP-5PCL2 GHz40 GHz
EHP-8PCL1 GHz40 GHz
EHP-12PCL1 GHz40 GHz
EHP-18PCL500 MHz40 GHz
EHP-24PCL200 MHz40 GHz
EHP-36PCL80 MHz40 GHz
EHP-48PCL80 MHz40 GHz
EHP-72PCL80 MHz40 GHz

Adhesive: Yes
Clip: Yes
Color: Rantec Blue
Environmental Temperature: 22° C ± 10° C (70° F ± 20° F) Maximum
Service Temperature: 90° C (190° F)
Ratings, Fire Retardant: NRL 8093 Tests 1, 2 & 3, TI #2693066, MIT MS-8-21, UL 94 and DIN 4102-B2
Specifications Relative Humidity: 50% ± 20%
Velcro: 45.72 cm (18 in)

Dimensions by Model
ModelAbsorber FootprintBase HeightOverall HeightPyramid HeightWeight
EHP-3PCL3.8 cm   (1.50 in)1.9 cm   (0.75 in)8.25 cm   (3.25 in)6.4 cm   (2.52 in)1 kg   (2.20 lb)
EHP-5PCL5.1 cm   (2.01 in)2.5 cm   (0.98 in)
12.7 cm   (5.00 in)6.4 cm   (2.52 in)1.6 kg   (3.53 lb)
EHP-8PCL
7.6 cm   (2.99 in)5.1 cm   (2.01 in)21.6 cm   (8.50 in)16.5 cm   (6.50 in)2.8 kg   (6.17 lb)
EHP-12PCL15.2 cm   (5.98 in)5.7 cm   (2.24 in)31.1 cm   (12.24 in)25.4 cm   (10.00 in)4.6 kg   (10.14 lb)
EHP-18PCL15.2 cm   (5.98 in)5.7 cm   (2.24 in)46.4 cm   (18.27 in)40.6 cm   (15.98 in)4.6 kg   (10.14 lb)
EHP-24PCL20.3 cm   (7.99 in)10.2 cm   (4.02 in)61.0 cm   (24.02 in)50.8 cm   (20.00 in)6.1 kg   (13.45 lb)
EHP-36PCL30.5 cm   (12.01 in)15.2 cm   (5.98 in)91.4 cm   (35.98 in)76.2 cm   (30.00 in)9.5 kg   (20.94 lb)
EHP-48PCL30.5 cm   (12.01 in)
20.3 cm   (7.99 in)121.9 cm   (47.99 in)101.6 cm   (40.00 in)11.3 kg   (24.91 lb)
EHP-72PCL61.0 cm   (24.02 in)30.5 cm   (12.01 in)182.9 cm   (72.01 in)152.4 cm   (60.00 in)15.9 kg   (35.05 lb)





EHP High Performance Microwave Pyramidal Absorber http://www.ets-lindgren.com/products/absorber/rf-microwave-absorbers/rf-absorbers/1006/100601EHP High Performance Microwave Pyramidal Absorber
Flat Laminate Absorber http://www.ets-lindgren.com/products/absorber/rf-microwave-absorbers/rf-absorbers/1006/100605Flat Laminate Absorber
HP High Power Microwave Absorber http://www.ets-lindgren.com/products/absorber/rf-microwave-absorbers/rf-absorbers/1006/100603HP High Power Microwave Absorber
Wedge Absorber http://www.ets-lindgren.com/products/absorber/rf-microwave-absorbers/rf-absorbers/1006/100607 Wedge Absorber
Walkway Absorber http://www.ets-lindgren.com/products/absorber/rf-microwave-absorbers/rf-absorbers/1006/100608Walkway Absorber
FF Filter Foam Absorber http://www.ets-lindgren.com/products/absorber/rf-microwave-absorbers/filter-foam/1006/100604FF Filter Foam Absorber
Microwave Convoluted Absorber http://www.ets-lindgren.com/products/absorber/rf-microwave-absorbers/rf-absorbers/1006/100606Microwave Convoluted Absorber
CRV Curvilinear Microwave Absorber http://www.ets-lindgren.com/products/absorber/rf-microwave-absorbers/rf-absorbers/1006/100602CRV Curvilinear Microwave Absorber

Key Features


  • ​Numerically Optimized Design
  • 200 V/m Power Handling Capability
  • Fire Retardant
