Key Features

  • MIL-STD 461 RS103, 200 V/m
  • High Reliability GaAs Design
  • Excellent Performance and Efficiency
  • Safety Interlock
  • Download PDF Datasheet
  • ETS-Lindgrens Model 8000-026 RF Power Amplifier is a 2500W/1900W power amplifier, designed primarily for EMC applications that include MIL-STD 461 RS103, 200 V/m.

    Utilizing GaAs technology, this RF amplifier provides higher linearity, rugged design and better efficiency performance versus silicon-based amplifiers.

    The 8000-026 provides very low distortion and tolerance for 100% mismatch.

    Specifications
    View the RF Power Amplifiers Model 8000-026 technical specifications below

    Physical Specifications

    Dimensions: 19 in, 34U Rack, 800 mm (34.6 in) Deep
    Weight: 291.0 kg (641.6 lb)
    Case Style (Standard): Rack Mount with Rear Panel Connectors

    Electrical Specifications

    Electrical Frequency Range: 10 kMHz to 250 MHz
    Nominal Output Power:
    • 10 kHz to 100 MHz, 2500W
    • 100 MHz to 250 MHz, 2500W to 1900W
    Gain Variation: 3 dB
    Harmonics: -20 dBc Maximum
    Output Impedance: 50
    Input VSWR: 2:1 Maximum
    AC Supply: 3 Phase Options, Contact ETS-Lindgren for Details
    Supply Frequency Range: 45/63 Hz
    Line Power: 11 kVA

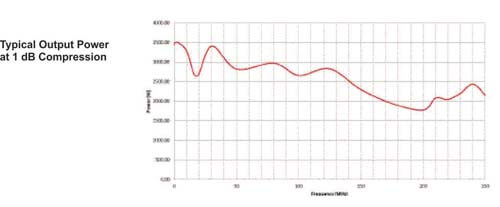

    Charts
    View the RF Power Amplifiers Model 8000-026 charts below
