MIL-STD 461 RS103, 200 V/m High Reliability GaAs Design Excellent Performance and Efficiency Safety Interlock

  • Download PDF Datasheet
  • ETS-Lindgrens Model 8000-08 RF Power Amplifier is a 3000 W power amplifier, designed primarily for EMC applications that include MIL-STD 461 RS103, 200 V/m. Utilizing GaAs technology, this RF amplifier provides higher linearity, rugged design and better efficiency performance versus silicon-based amplifiers. The 8000-008 provides very low distortion and tolerance for 100% mismatch.

    Specifications
    View the RF Power Amplifiers Model 8000-008 technical specifications below

    Physical Specifications

    Dimensions: 19 in, 34U Rack, 800 mm (34.6 in) Deep
    Weight: 291.0 kg (641 lb)
    Case Style (Standard): Rack with Rear Panel Connectors


    Electrical Specifications

    Electrical Frequency Range: 10 kHz to 100 MHz
    Nominal Output Power: 3000 W
    Gain Variation: 3 dB
    Harmonics: -20 dBc Maximum
    Output Impedance: 50
    Input VSWR: 2:1 Maximum
    AC Supply: 3 Phase Options, Contact ETS-Lindgren for Details
    Supply Frequency Range: 50/60 Hz
    Line Power: <11 kVA
    Input Connector: N (f)
    Output Connector 7/16 (f)


    Product Configuration

    Electrical Frequency Range: 10 kHz to 100 MHz
    Nominal Output Power: 3000 W
    Gain Variation: 3 dB
    Harmonics: -20 dBc Maximum
    Output Impedance: 50
    Input VSWR: 2:1 Maximum
    AC Supply: 3 Phase Options, Contact ETS-Lindgren for Details
    Supply Frequency Range: 50/60 Hz
    Line Power: <11 kVA
    Input Connector: N (f)
    Output Connector 7/16 (f)


    Charts

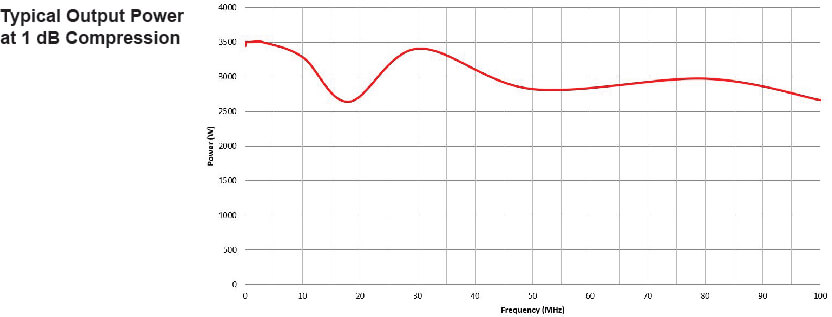

    View the RF Power Amplifiers Model 8000-008 charts below
