3303 Monopole Antennas
The 3303 Passive Broadband Electric Field Monopole is a transmitting antenna with a frequency range of 1 kHz to 30 MHz. All ETS‑Lindgren rod antennas are designed to provide a high level of efficiency in electric field measurements and are individually calibrated in accordance with the the equivalent capacitive substitution method (ESCM) and IEEE-291 methods using NIST traceable equipment.
Add to FavoritesRemove from Favorites
Add to Favorites
Highly Efficient Passive Broadband Electric Field Monopole Antenna

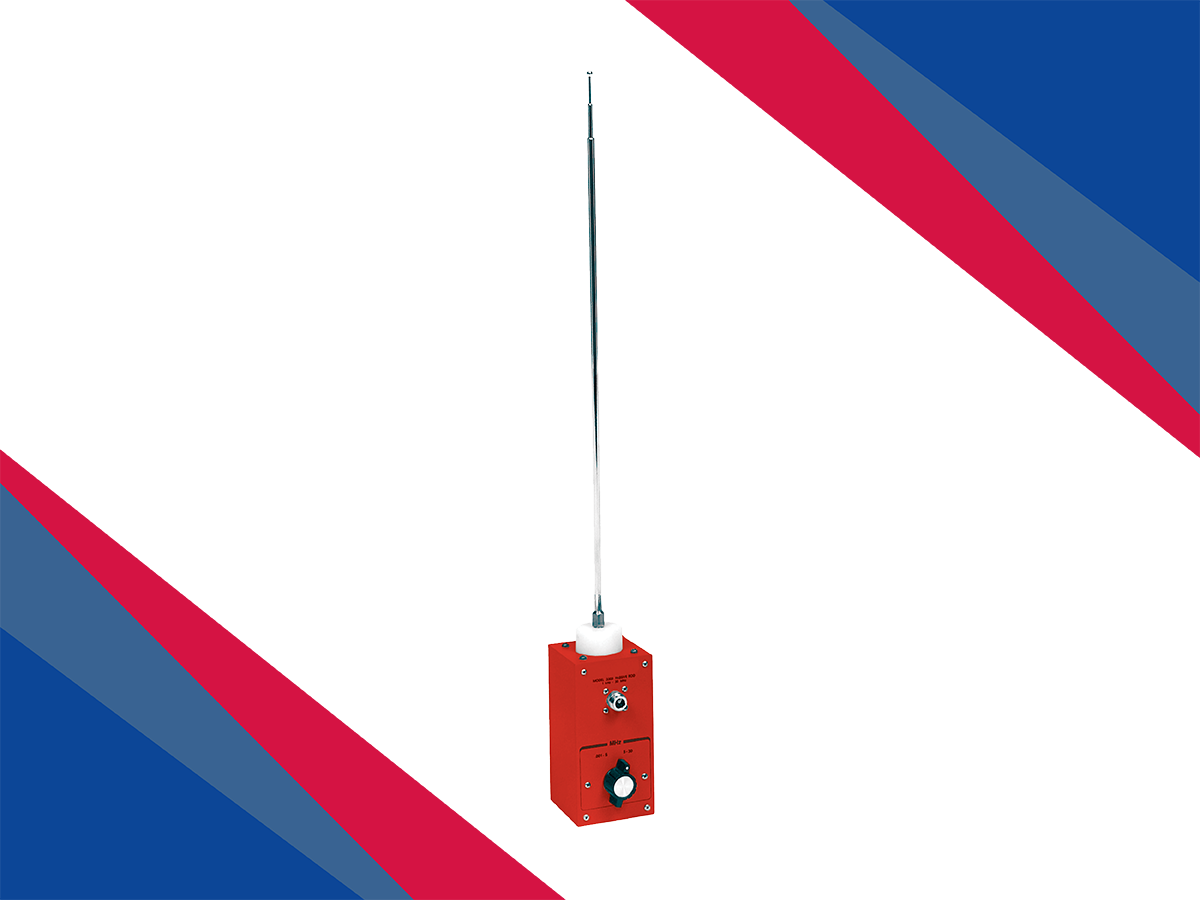

The Model 3303 Passive Broadband Electric Field Monopole is a transmitting antenna with a frequency range of 1 kHz to 30 MHz. This antenna features manual bandswitching between 0.001 to 5 MHz and 5 to 30 MHz. The maximum power handled by the Model 3303 is 1 kW. The transmitting rod is stainless steel can be adjusted to 100 cm (39.4 in) or 104 cm (41 in). The base is an aluminum housing which contains the bandswitching mechanism and a female Type N connector. The Model 3303 also may be used as a passive receiving antenna.
