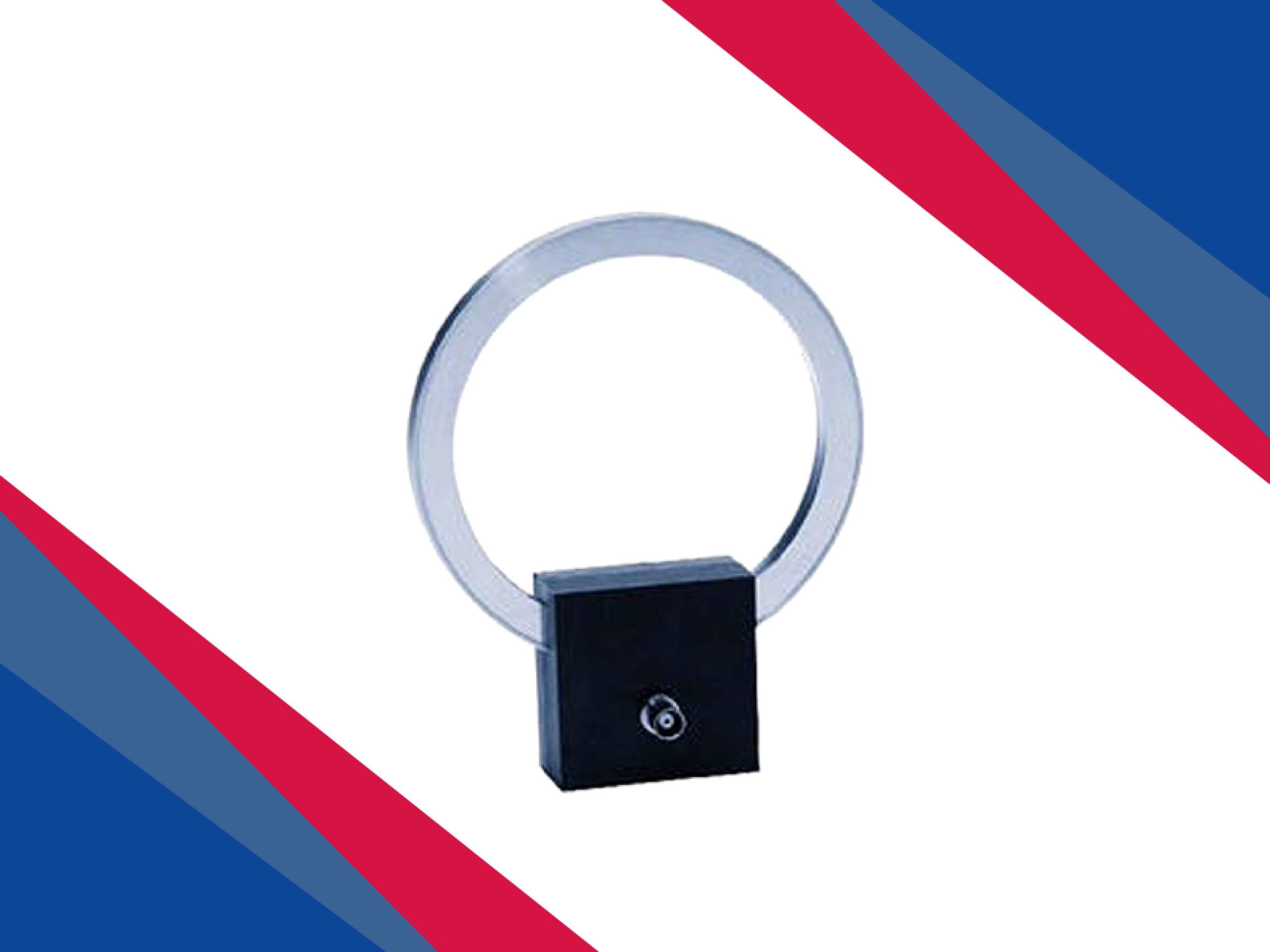

7604 Shielded Coil Antenna

Model 7604 is a magnetic field pick-up coil antenna with a loop constructed of aluminum and a coil wound with 36 turns of 7 strands of 41 gauge Litz wire.

Add to FavoritesRemove from Favorites

Industries: Aerospace & Defense, Automotive, Commercial

Solutions: EMC

Share:

Key details
Resources

Highly Accurate Aluminum Magnetic Field Pick-Up Coil

The Model 7604 is a magnetic field pick-up coil, 13.3 cm (5.25 in) in diameter, with a loop constructed of aluminum. The coil is wound with 36 turns of 7 strands of 41 gauge Litz wire. This loop antenna can be individually calibrated in accordance with ANSI C63.5, using NIST traceable equipment..

Key Advantages:

Built to Exact Specifications of MIL-STD 4620
Two Year Warranty

VIEW DATASHEET VIEW MANUAL
