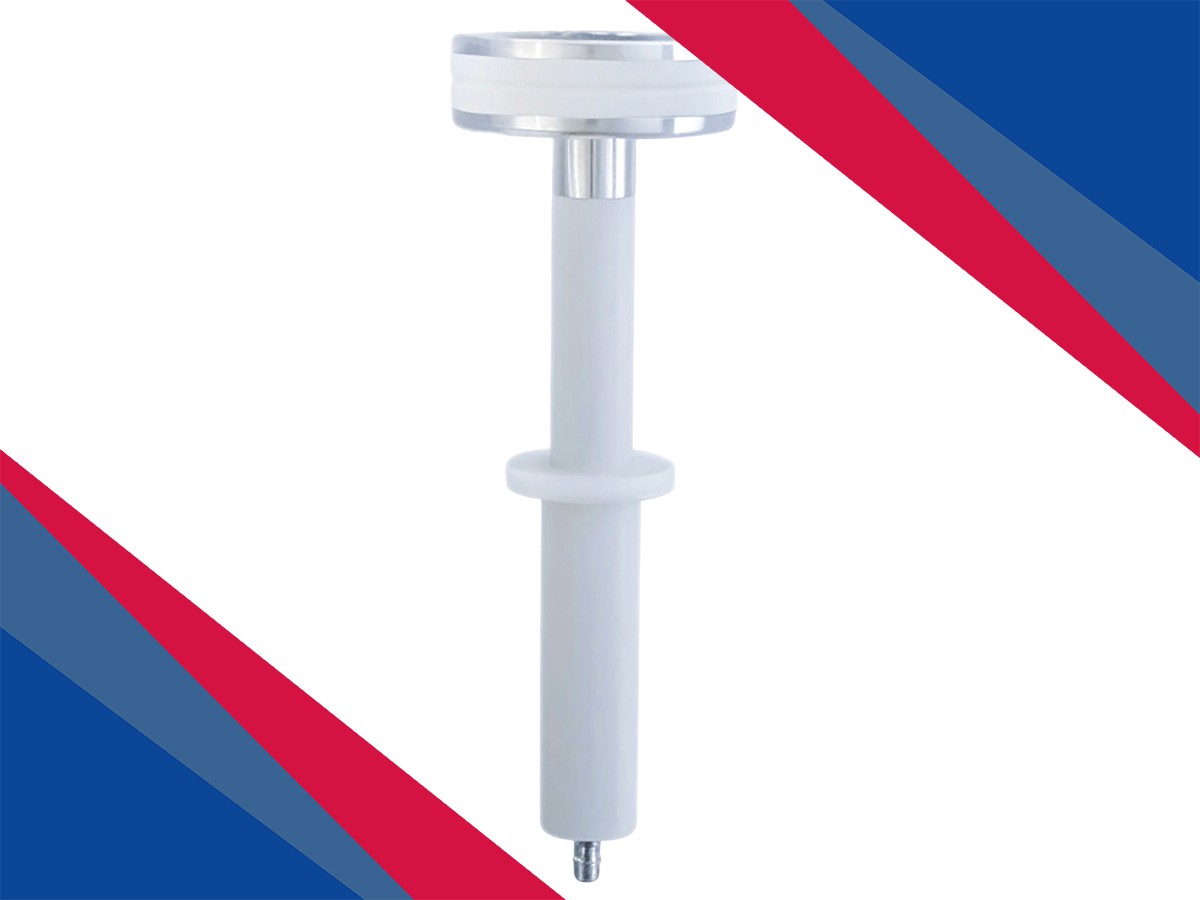

3188 Broadband Magnetic Dipole Antenna
The ETS‑Lindgren Model 3188 Broadband Magnetic Dipole Antenna provides broadband coverage from 18 GHz to 40 GHz in a single horizontally polarized antenna. Designed for high-frequency EMC immunity testing, it delivers excellent azimuthal symmetry, stable performance, and supports emerging ANSI C63.25.3 site validation requirements.
Add to FavoritesRemove from Favorites
Add to Favorites
Redefining High-Frequency EMC Testing
The Model 3188 Broadband Magnetic Dipole Antenna delivers continuous 18 GHz to 40 GHz coverage in a single horizontally polarized antenna, reducing the need to change antennas during high-frequency EMC testing. Engineered for consistent performance, it provides excellent azimuthal symmetry of less than ±1.5 dB and stable radiation patterns for accurate, repeatable measurements.
This antenna helps laboratories prepare for next-generation EMC requirements, including emerging ANSI C63.25.3 site validation.
Key Features
- Frequency Range: 18 GHz to 40 GHz
- Single Horizontally Polarized Antenna
- Excellent Azimuthal Symmetry of Less Than ±1.5 dB

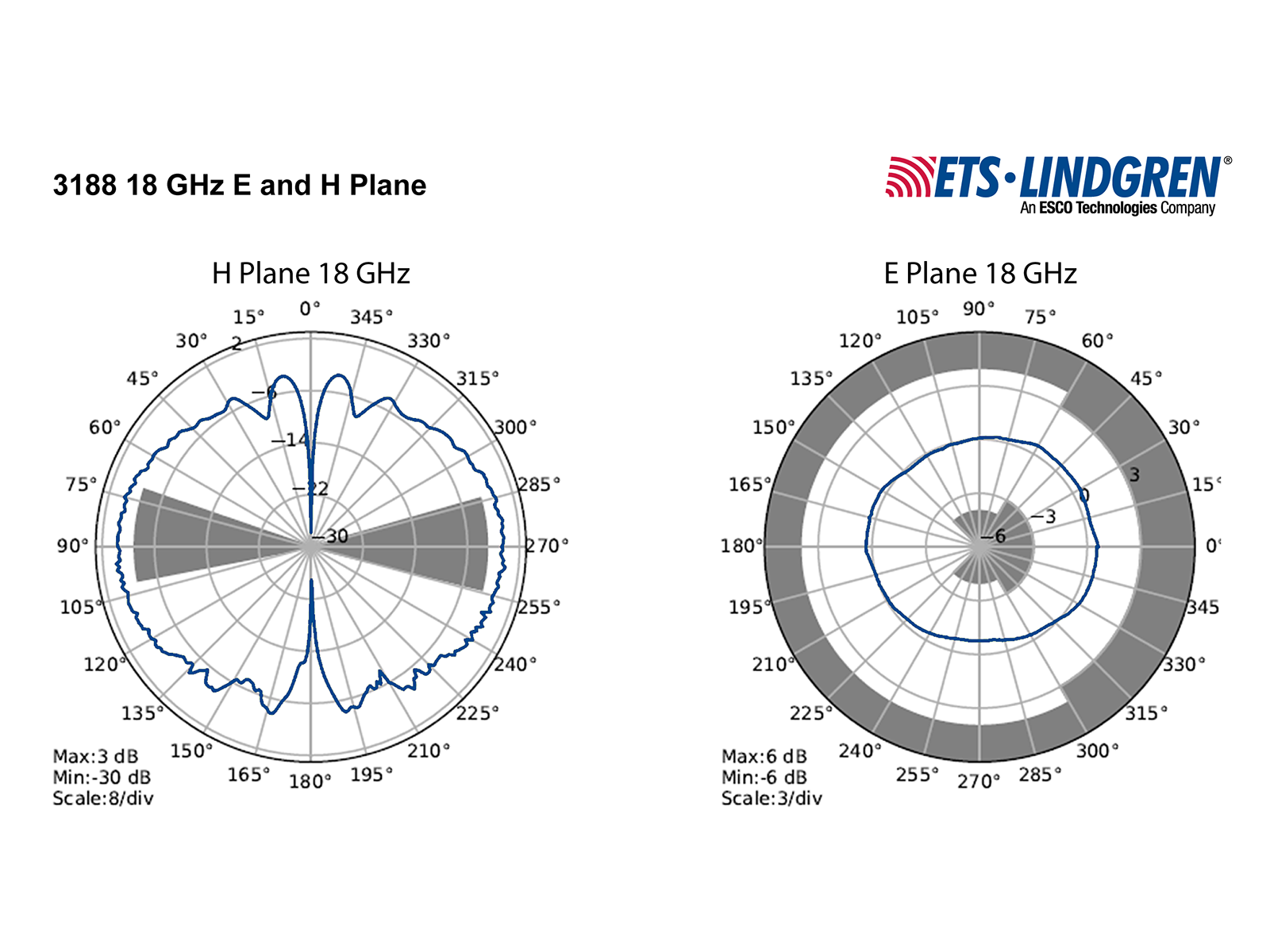

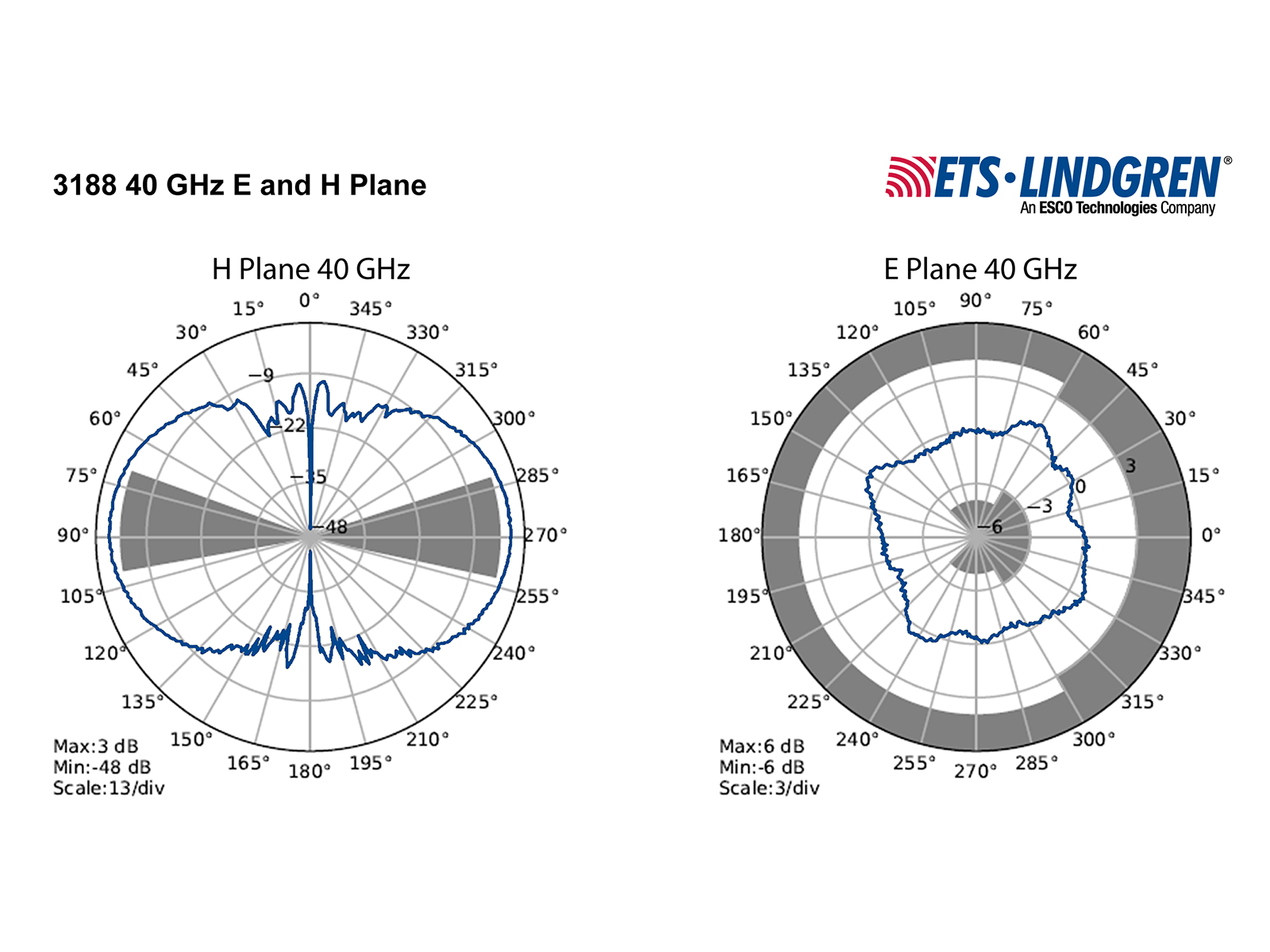

- Stable Radiation Patterns for Repeatable Test Results
- Supports Emerging ANSI C63.25.3 Site Validation
Product Roadmap Item — Planned release: Q4 2026. Specifications are preliminary and subject to change.
