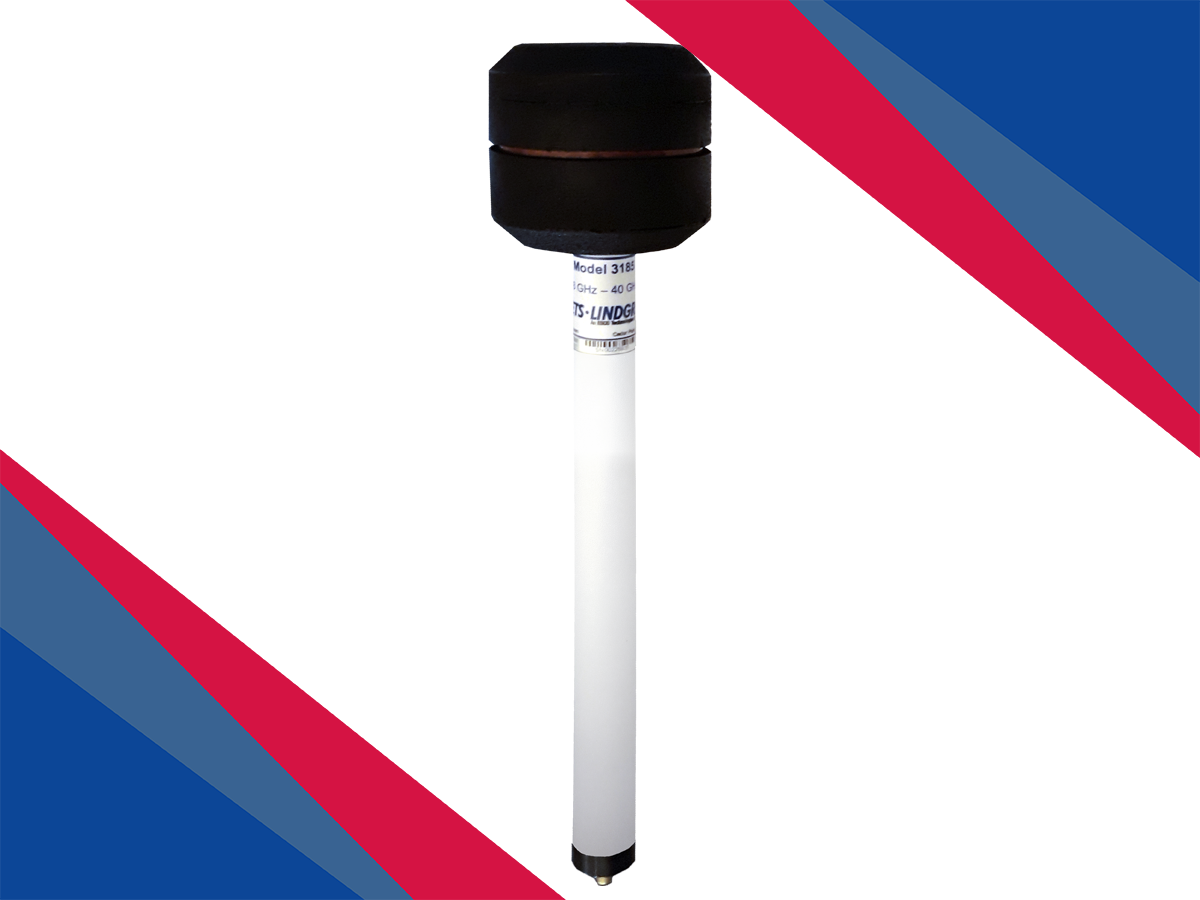

3185 Mini-Bicon Antenna
The Model 3185 Broadband Mini-Bicon Antenna provides continuous 18 GHz to 40 GHz coverage in a single vertically polarized antenna, eliminating the need for multiple antennas during high-frequency chamber validation. Engineered with low VSWR and stable omnidirectional H-plane performance, it supports accurate, repeatable measurements for CISPR 16-1-4 and emerging ANSI C63.25.3 chamber validation.
Add to FavoritesRemove from Favorites
Add to Favorites
Advancing the Evolution of Chamber Validation
The Model 3185 Broadband Mini-Bicon Antenna delivers continuous 18 GHz to 40 GHz coverage in a single vertically polarized antenna, eliminating the need to change antennas during high-frequency chamber validation. Engineered for consistent performance, it provides low VSWR across the operating frequency range and omnidirectional H-plane characteristics for accurate, repeatable measurements.

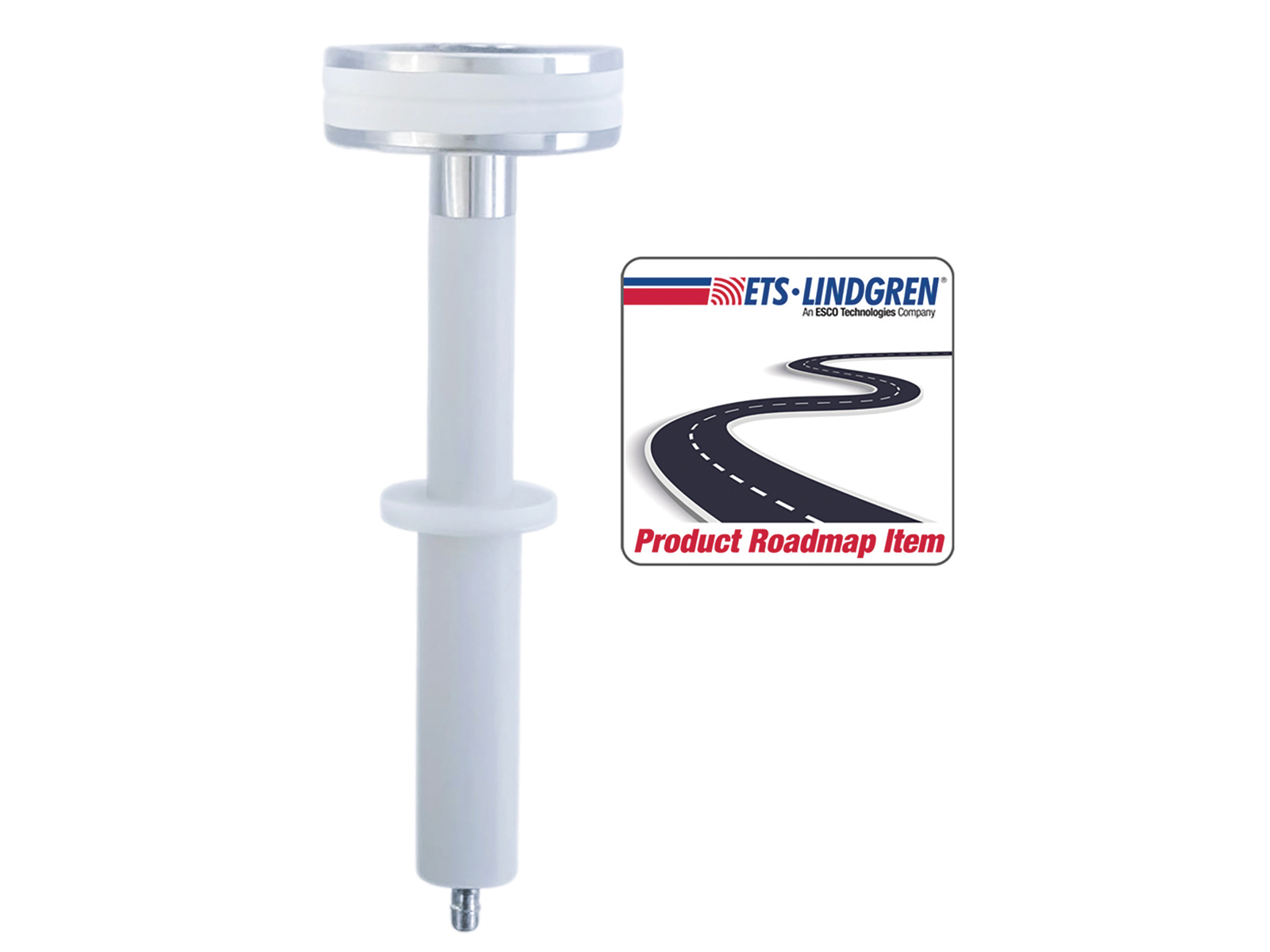

Designed to complement the Model 3188 Broadband Magnetic Dipole Antenna, the Model 3185 helps laboratories achieve complete dual-polarization coverage while preparing for next-generation EMC requirements, including CISPR 16-1-4 and emerging ANSI C63.25.3 chamber validation.
Key Features
- Frequency Range: 18 GHz to 40 GHz
- Single Vertically Polarized Antenna
- Low VSWR Across the Operating Frequency Range

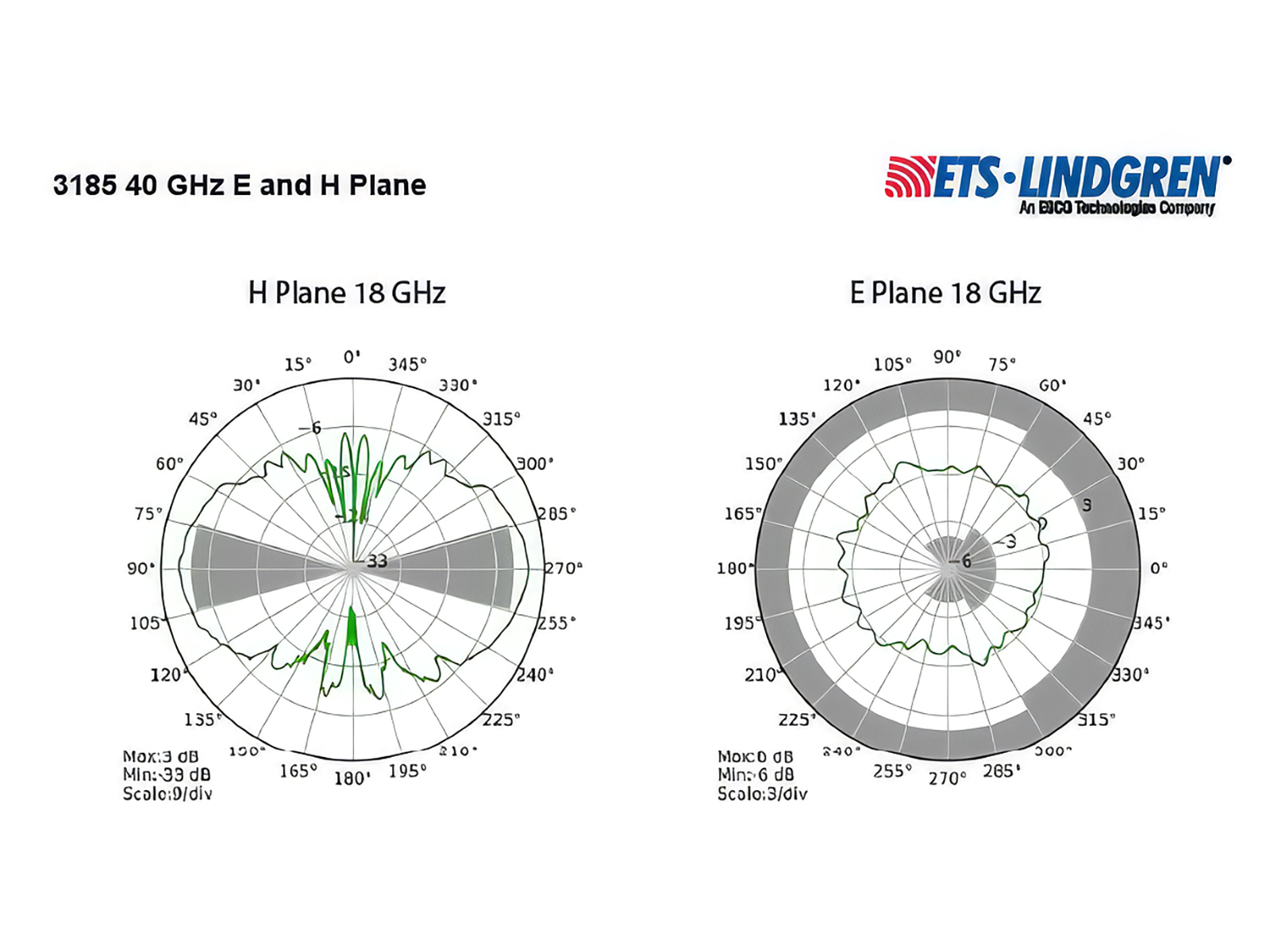

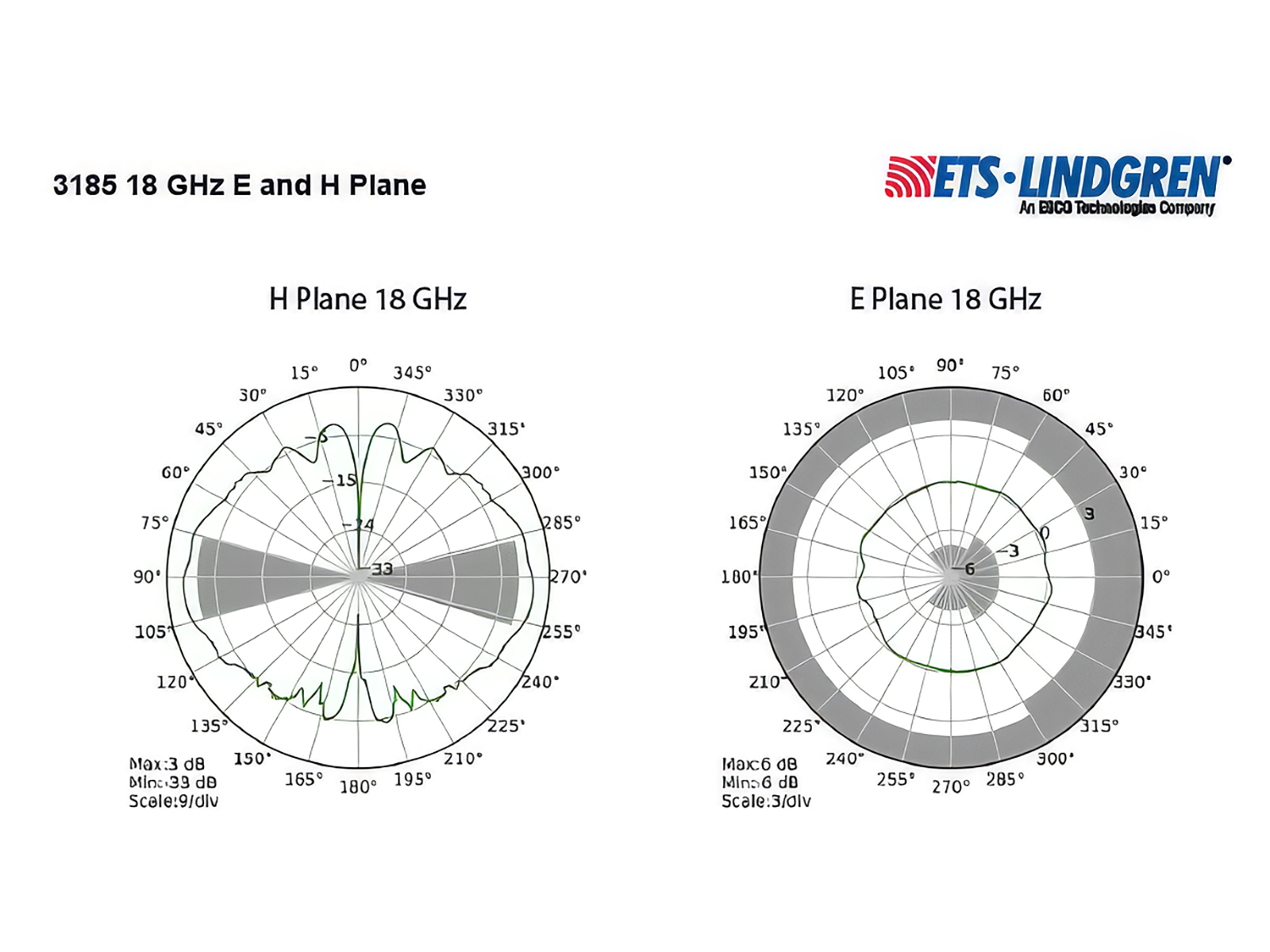

- Omnidirectional H-Plane Performance
- Supports CISPR 16-1-4 and Emerging ANSI C63.25.3 Chamber Validation

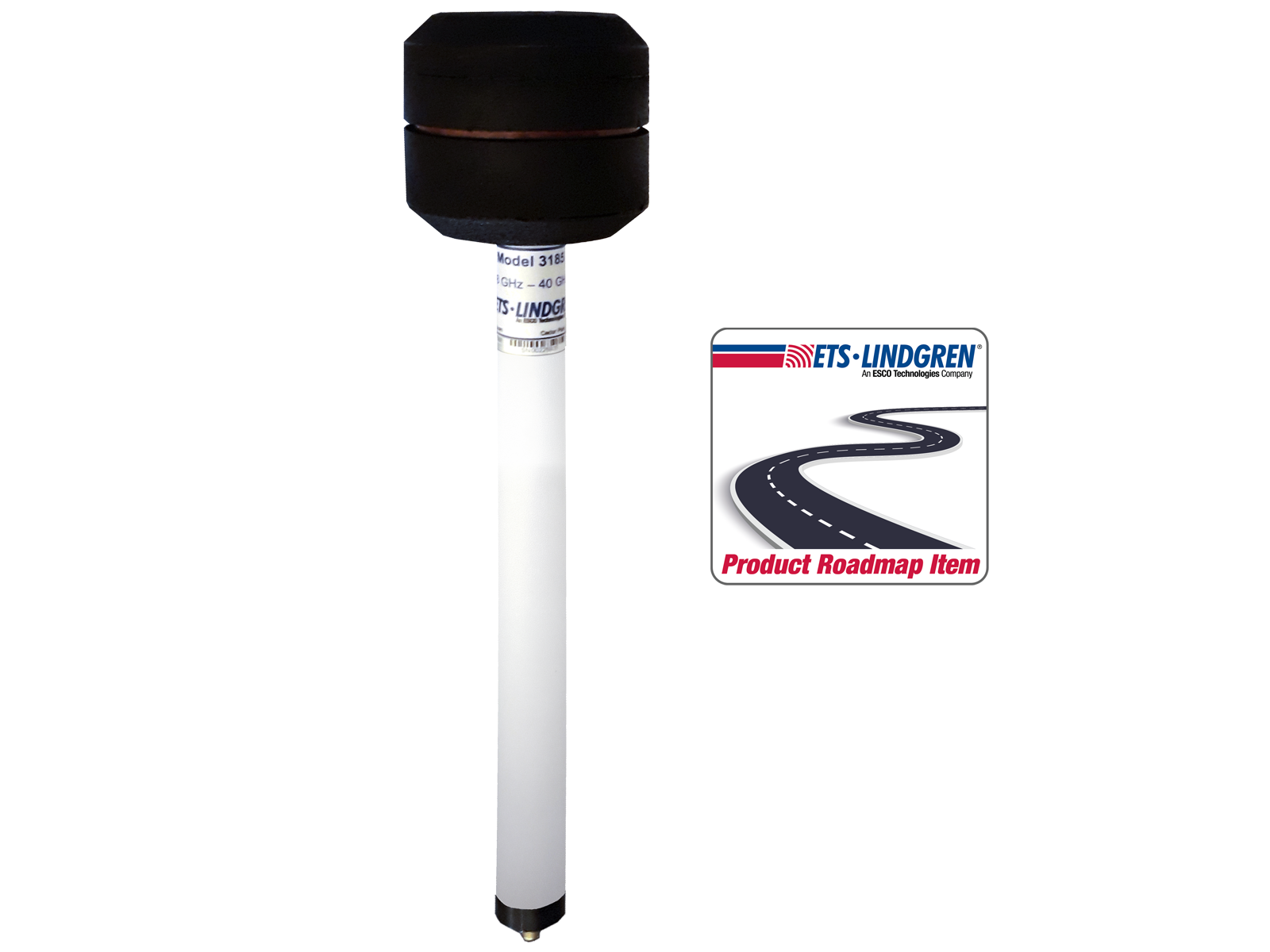

Product Roadmap Item — Planned release: Q4 2026. Specifications are preliminary and subject to change.
