RF Power Amplifiers Model 8000-020
Product Image

ETS-Lindgrens Model 8000-020 RF Power Amplifier is a power amplifier, designed primarily for EMC applications including rigorous antenna and test chamber requirements.

Key Features
  • IEC/EN 61000-4-6, 10V
  • High Reliability GaAs Design
  • Excellent Performance and Efficiency
  • Safety Interlock

ETS-Lindgrens Model 8000-020 RF Power Amplifier is a power amplifier, designed primarily for EMC applications including rigorous antenna and test chamber requirements. Utilizing GaAs technology, this RF amplifier provides higher linearity, rugged design and better efficiency performance versus silicon-based amplifiers.

The 8000-020 provides very low distortion and tolerance for 100% mismatch.

Specifications
View the RF Power Amplifiers Model 8000-020 technical specifications below

Physical Specifications

Dimensions: 19 in, 3U Case, 440 mm (17.3 in) Deep
Weight: 13.0 kg (28.7 lb)
Case Style (Standard): Rack Mount with Rear Panel Connectors
Case Style (Optional): Bench Mount, Front Panel Connectors

Electrical Specifications

Frequency Range: 150 kHz to 230 MHz
Nominal Output Power: 80W
Gain Variation: 2 dB
Harmonics: -20 dBc Maximum
Output Impedance: 50
Input VSWR: 2:1 Maximum
AC Supply: 100 to 250 VAC, Single Phase
Supply Frequency Range: 50/60 Hz
Line Power: <400 VA

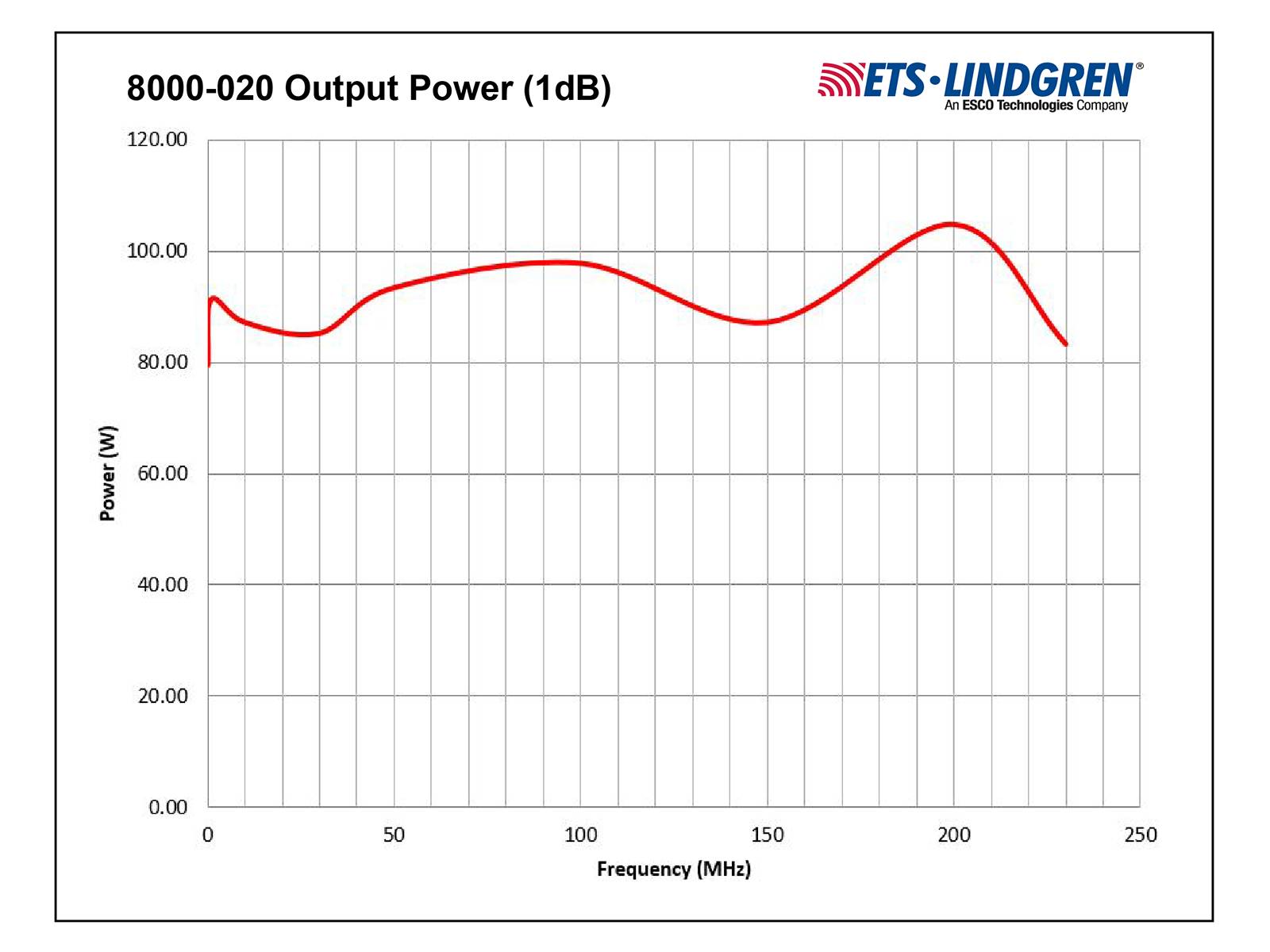

Charts
View the RF Power Amplifiers Model 8000-020 charts below
