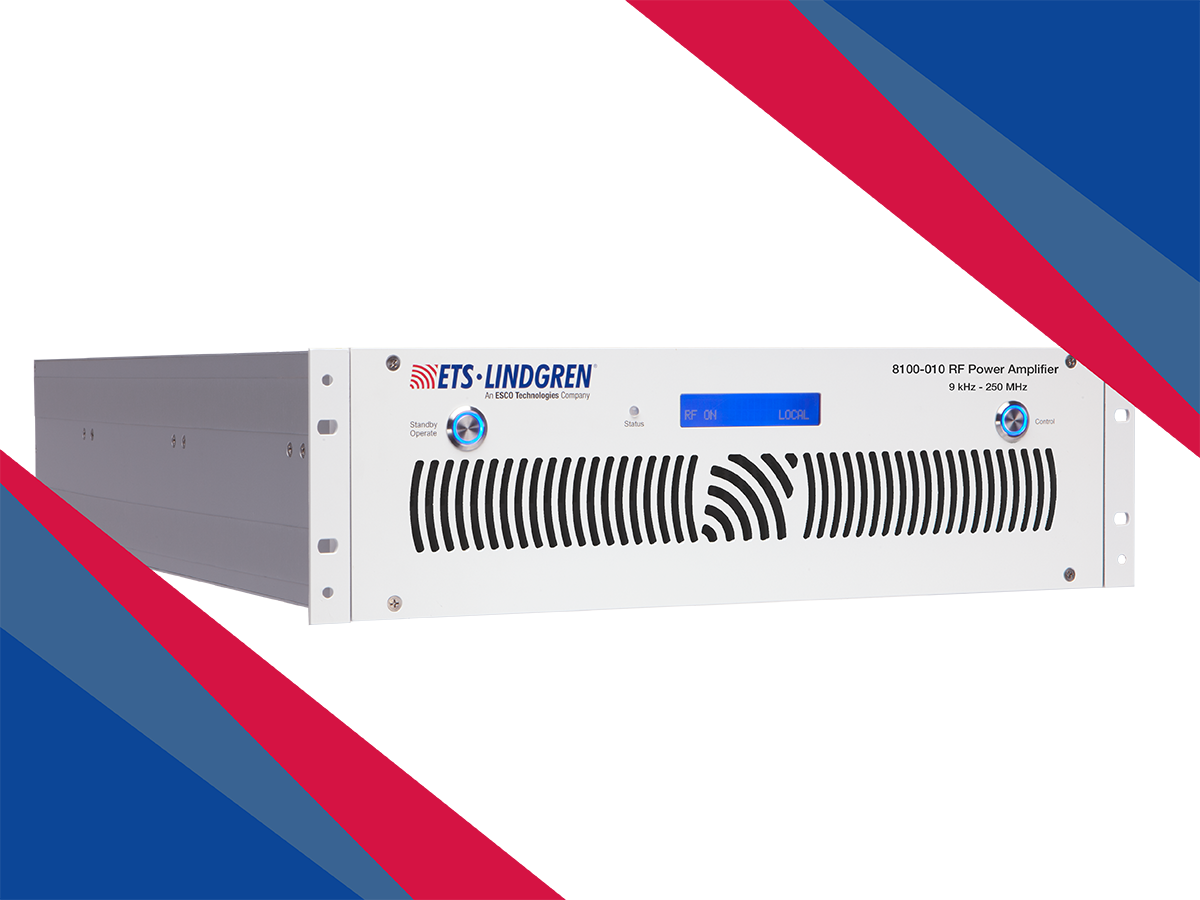

8100-010 RF Power Amplifier

Improves Certification Speed for Faster Approvals

The Model 8100-010 RF Power Amplifier delivers 75 watts of output power and is designed for EMC applications requiring IEC 61000-4-6 conducted immunity testing up to 10 Vrms through 250 MHz. Utilizing advanced GaAs technology, it offers superior linearity and efficiency compared to traditional silicon-based amplifiers, while maintaining a rugged design suitable for continuous laboratory operation. Its wide operating frequency range from 9 kHz to 250 MHz supports a variety of commercial and industrial compliance testing needs. Very low distortion and 100% output mismatch tolerance ensure stable, accurate performance even under challenging load conditions. Remote control capability via GPIB and LAN allows seamless integration into automated test environments. With its compact 2U rack-mount configuration and optional bench setup, the Model 8100-010 provides a dependable and space-efficient solution for modern EMC laboratories.
