Key Features

  • Frequency range: 9 kHz - 30 MHz
  • Individually Calibrated per ANSI C63.5
  • Two Year Warranty
  • Download PDF Datasheet
  • ETS-Lindgren's Model 6512 has a frequency range of 9 kHz - 30 MHz and is a passive loop antenna designed for both EMC emissions and EMC immunity tests. Every loop antenna can be individually calibrated in accordance with ANSI C63.5, using NIST traceable equipment. By knowing the actual antenna factors and performance characteristics of an antenna instead of typical data, you can more accurately measure field strength in your tests.

    Specifications
    View the 6512 Shielded Loop Antenna technical specifications below

    Physical Specifications

    Height: 59.8 cm (23.54 in)
    Length: 3.8 cm (1.50 in)
    Width: 12.7 cm (5.00 in)
    Weight: 1.6 kg (3.53 lb)

    Electrical Specifications

    Frequency Minimum: 9 kHz
    Frequency Maximum: 30 MHz
    Connectors: BNC (f)
    Maximum Input Power: 20 W
    Pattern Type: Omnidirectional
    Polarization: Linear

    Product Configuration

    • Loop Antenna
    • Mounting Bracket drilled accepts ETS-Lindgren or other tripod mount with standard 1/4 in x 20 threads.

    Charts

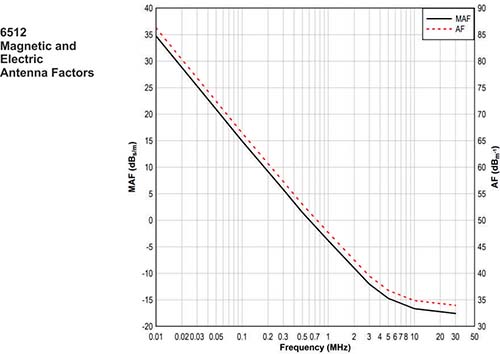

    View the 6512 Shielded Loop Antenna charts below
