Key Features

  • IEC/EN 61000-4-6, 3V
  • High Reliability GaAs Design
  • Excellent Performance and Efficiency
  • Safety Interlock
  • Download PDF Datasheet
  • ETS-Lindgrens Model 8000-041 RF Power Amplifier is a power amplifier, designed primarily for EMC applications including rigorous antenna and test chamber requirements. Utilizing MOSFET technology, this RF amplifier provides higher linearity, rugged design and better efficiency performance versus silicon-based amplifiers.

    The 8000-041 provides very low distortion and tolerance for 100% mismatch.

    View the RF Power Amplifiers Model 8000-041 technical specifications below

    Physical Specifications

    Dimensions: 19 in, 3U Case, 440 mm (17.3 in) Deep
    Weight: 12.0 kg (26.5 lb)
    Case Style (Standard): Rack Mount with Rear Panel Connectors
    Case Style (Optional): Bench Mount, Front Panel Connectors

    Electrical Specifications

    Frequency Range: 10 kHz to 400 MHz
    Nominal Output Power: 30W
    Gain Variation: 2 dB
    Harmonics: -20 dBc Maximum
    Output Impedance: 50
    Input VSWR: 2:1 Maximum
    AC Supply: 85 to 264 VAC, Single Phase
    Supply Frequency Range: 47/63 Hz
    Line Power: <140 VA

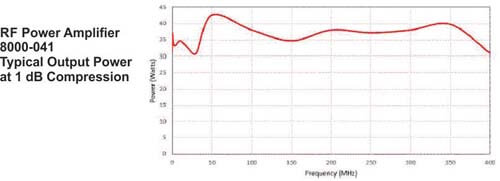

    View the RF Power Amplifiers Model 8000-041 charts below
