Key Features

  • ISO 11452-4 up to 106 dBuA
  • IEC/EN 61000-4-6, 10 V/m
  • High Reliability GaAs Design
  • Excellent Performance and Efficiency
  • Safety Interlock
  • Download PDF Datasheet
  • ETS-Lindgrens Model 8000-025 RF Power Amplifier is a 100W power amplifier, designed primarily for EMC applications that include ISO 11452-4 and IEC/EN 61000-4-6.

    Utilizing GaAs technology, this RF amplifier provides higher linearity, rugged design and better efficiency performance versus silicon-based amplifiers.

    The 8000-025 provides very low distortion and tolerance for 100% mismatch.

    Specifications
    View the RF Power Amplifiers Model 8000-025 technical specifications below

    Physical Specifications

    Dimensions: 19 in, 4U Case, 550 mm (21.7 in) Deep
    Weight: 17.0 kg (37.5 lb)
    Case Style (Standard): Rack Mount with Rear Panel Connectors
    Case Style (Optional): Bench Mount, Front Panel Connectors

    Electrical Specifications

    Electrical Frequency Range: 1 MHz to 400 MHz
    Nominal Output Power: 100W
    Gain Variation: 2 dB
    Harmonics: -20 dBc Maximum
    Output Impedance: 50
    Input VSWR: 2:1 Maximum
    AC Supply: 100 to 250 VAC, Single Phase
    Supply Frequency Range: 50/60 Hz
    Line Power: <1 kVA

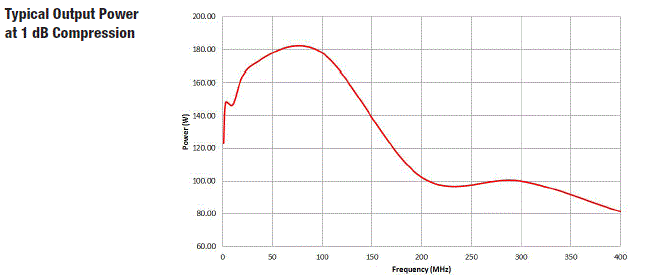

    Charts
    View the RF Power Amplifiers Model 8000-025 charts below
