Key Features

  • MIL-STD 461 CS114, Curve 5
  • High Reliability GaAs Design
  • Excellent Performance and Efficiency Safety Interlock
  • Download PDF Datasheet
  • ETS-Lindgrens Model 8000-021 RF Power Amplifier is a 800W power amplifier, designed primarily for EMC applications that include MIL-STD 461 CS114, Curve 5 requirements.

    Utilizing GaAs technology, this RF amplifier provides higher linearity, rugged design and better efficiency performance versus silicon-based amplifiers.

    The 8000-021 provides very low distortion and tolerance for 100% mismatch.

    Specifications
    View the RF Power Amplifiers Model 8000-021 technical specifications below

    Physical Specifications

    Dimensions: 19 in, 6U Case, 550 mm (21.7 in) Deep
    Weight: 33.0 kg (72.8 lb)
    Case Style (Standard): Rack Mount with Rear Panel Connectors
    Case Style (Optional): Bench Mount, Front Panel Connectors

    Electrical Specifications

    Electrical Frequency Range: 10 kHz to 250 MHz
    Nominal Output Power: 800W
    Gain Variation: 2 dB
    Harmonics: -20 dBc Maximum
    Output Impedance: 50
    Input VSWR: 2:1
    Maximum AC Supply: 200 to 240 VAC, Single Phase
    Supply Frequency Range: 50/60 Hz
    Line Power: <3 kVA

    Charts

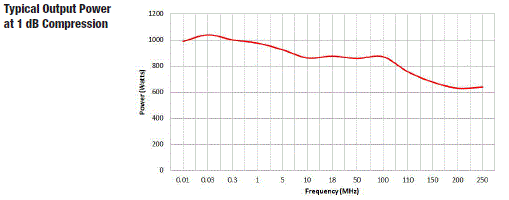

    View the RF Power Amplifiers Model 8000-021 charts below
