8100-012 RF Power Amplifier

Enhances Testing Capacity for Higher Throughput

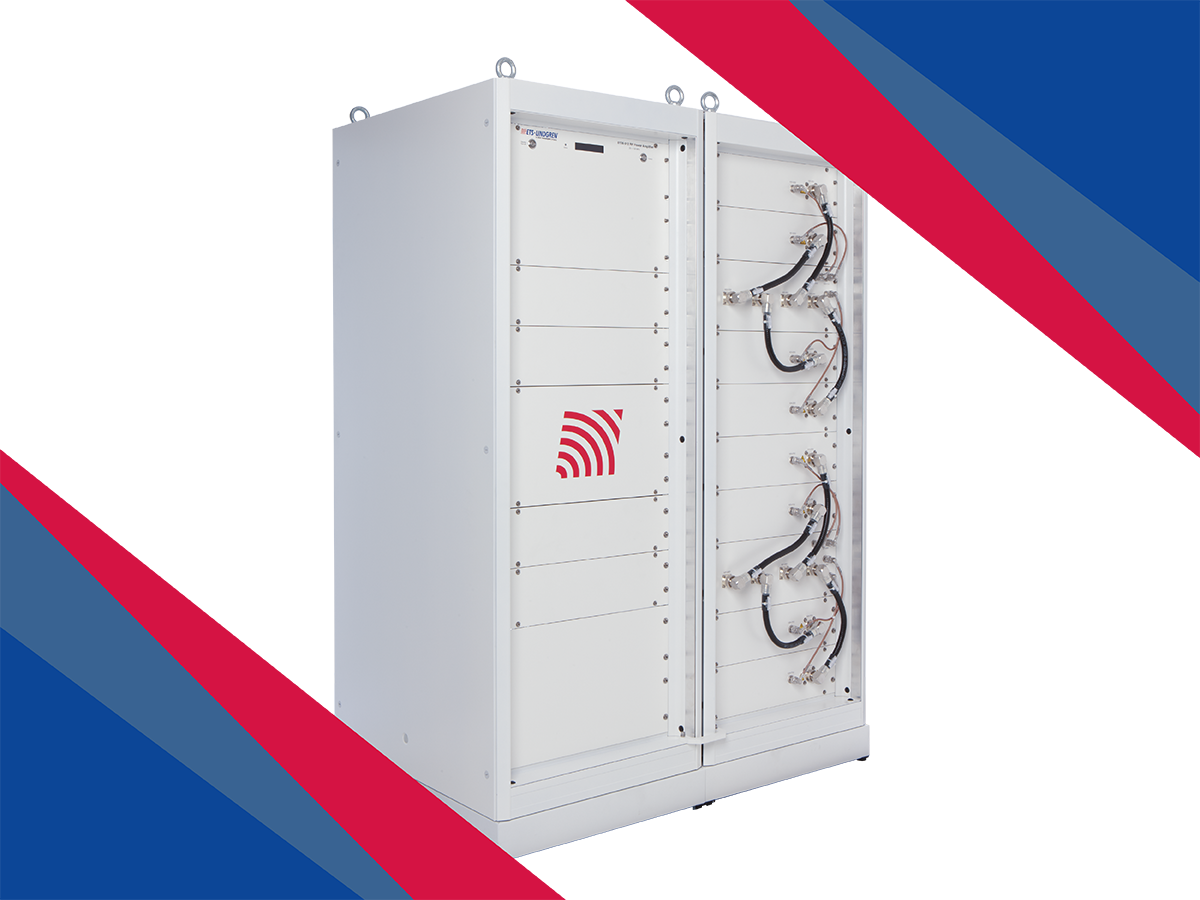

The Model 8100-012 RF Power Amplifier delivers an impressive 10,000 watts of output power and is designed for demanding EMC applications requiring MIL-STD-461 RS103 testing up to 200 V/m. Utilizing advanced GaAs technology, it provides superior linearity and efficiency compared to traditional silicon-based amplifiers, while maintaining a rugged, high-reliability architecture suitable for continuous high-power operation. Its operating frequency range from 20 MHz to 130 MHz supports critical military and high-field radiated immunity testing needs. Very low distortion and 100% output mismatch tolerance ensure stable, accurate performance even under severe load or antenna conditions. Remote control capability via GPIB and LAN allows seamless integration into automated test systems, enhancing operational flexibility. Housed in dual 37U rack enclosures, the Model 8100-012 delivers a powerful and dependable solution for high-performance EMC laboratories requiring extreme field strengths.
