Key Features

  • IEC/EN 61000-4-6, 3 V
  • High reliability GaAs Design
  • Excellent Performance and Efficiency
  • Safety Interlock


  • Download PDF Datasheet
  • ETS-Lindgren's Model 8000-042 RF Power Amplifier is a 35W power amplifier, designed for EMC applications that include IEC/EN 61000-4-6, 3 Vrms requirements. Using GaAs technology, this RF amplifier provides higher linearity, rugged design and better efficiency performance versus silicon-based amplifiers.

    Specifications
    View the RF Power Amplifier Model 8000-042 technical specifications below

    Physical Specifications

    Dimensions: 19 in, 3U Case, 440 mm (17.3 in) Deep
    Weight: 12 kg (26.5 lb)
    Case Style (Standard): Rack Mount with Rear Panel Connectors
    Case Style (Optional): Bench Mount with Front Panel Connectors

    Electrical Specifications

    Frequency Range: 0.15 to 230 MHz
    Nominal Output Power: 35 W Gain Variation: +/- 2 dB
    Harmonics: -20 dBc
    Maximum Output Impedance: 50
    Input VSWR: 2:1 Maximum
    AC Supply: 85 to 264 VAC
    Supply Frequency Range: 47 to 63 Hz
    Line Power: 140 VA Maximum

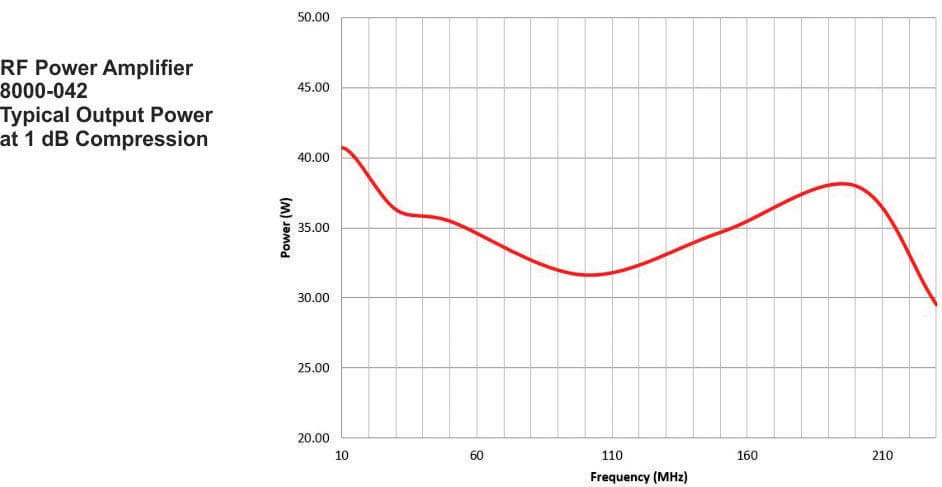

    Charts
    View the RF Power Amplifier Model 8000-042 charts below
