Key Features

  • Ford CS-2009.1 and GMW 3097 Radar Pulse
  • 600 V/m
  • Designed for Automotive Testing
  • High Reliability GaN Design
  • Class A mismatch tolerant
  • Excellent Performance and Efficiency
  • Safety Interlock


  • Download PDF Datasheet

  • ETS-Lindgrens Model 8000-075 RF Power Amplifier is a 450W power amplifier, designed primarily for automotive and military applications that include Ford CS-2009.1 and GMW 3097 Radar Pulse requirements. Utilizing GaN technology, this RF amplifier provides higher linearity, rugged design and better efficiency performance versus silicon based amplifiers.

    The 8000-075 provides very low distortion and tolerance for 100% mismatch.


    Specifications
    View the RF Power Amplifier Model 8000-075 technical specifications below

    Physical Specifications

    Dimensions19 in, 20U Case, 800 mm (34.6 in) Deep

    Weight 150 kg (330 lb)

    RF Connector: Input N(f), Output 7/16 (f)

    Remote Control: USB, GPIB, Ethernet

    Rack Style (Standard)

    Rack with Rear Panel Connectors




    Electrical Specifications

    Frequency Range: 1 GHz to 3.2 GHz
    Nominal Output Power: 450 W
    Gain Variation: 3 dB
    Harmonics: -20 dBc Maximum
    Output Impedance: 50
    Input VSWR: 2:1 Maximum
    AC Supply: 3 Phase 200-240V or 350-415 VAC
    Supply Frequency Range: 50/60 Hz
    Line Power: < 4 kVA

    Charts

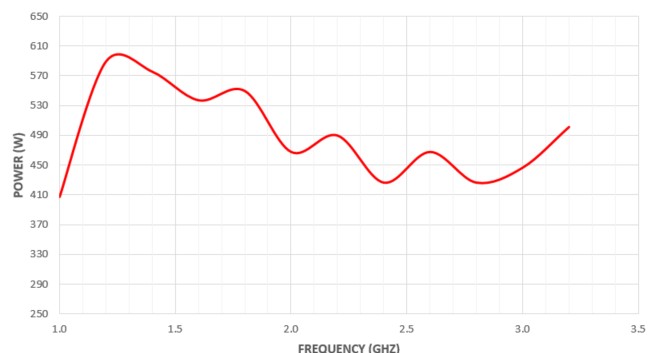

    View the RF Power Amplifier Model 8000-075 charts below
