Key Features

  • IEC/EN 61000-4-20, 20 V/m
  • Ideal for Testing in a GTEM! High Reliability GaAs Design Excellent Performance and Efficiency Safety Interlock
  • Download PDF Datasheet
  • ETS-Lindgrens Model 8000-023 RF Power Amplifier is a 45W power amplifier, designed primarily for EMC applications that include IEC/EN 61000-4-20 requirements using a GTEM up to 20 V/m.

    Utilizing GaAs technology, this RF amplifier provides higher linearity, rugged design and better efficiency performance versus silicon-based amplifiers.

    The 8000-023 provides very low distortion and tolerance for 100% mismatch.

    Specifications
    View the RF Power Amplifiers Model 8000-023 technical specifications below

    Physical Specifications

    Dimensions: 19 in, 6U Case, 550 mm (21.7 in) Deep
    Weight: 25.0 kg (55.1 lb)
    Case Style (Standard): Rack Mount with Rear Panel Connectors
    Case Style (Optional): Bench Mount, Front Panel Connectors

    Electrical Specifications

    Frequency Range: 10 kHz to 1 GHz
    Nominal Output Power: 45W
    Gain Variation: 3 dB Maximum
    Harmonics: -20 dBc Maximum
    Output Impedance: 50
    Input VSWR: 2:1 Maximum
    AC Supply: 100 to 250 VAC, Single Phase
    Supply Frequency Range: 50/60 Hz
    Line Power: <300 VA

    Charts

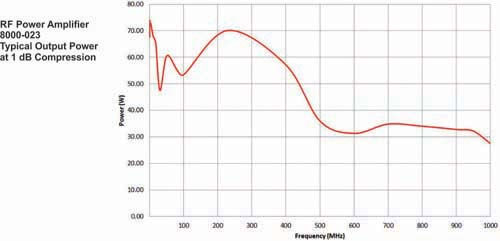

    View the RF Power Amplifiers Model 8000-023 charts below
