Key Features

  • EN/IEC 61000-4-6, 400W
  • High Reliability MOSFET Design
  • Excellent Performance and Efficiency
  • Safety Interlock
  • Download PDF Datasheet
  • ETS-Lindgrens Model 8000-028 RF Power Amplifier is a 400W power amplifier, designed primarily for EMC applications that include EN/IEC 61000-4-6. Utilizing MOSFET technology, this RF amplifier provides higher linearity, rugged design and better efficiency performance versus silicon-based amplifiers.

    The 8000-028 provides very low distortion and tolerance for 100% mismatch.

    Specifications
    View the RF Power Amplifiers Model 8000-028 technical specifications below

    Physical Specifications

    Dimensions: 19 in, 4U Case, 570 mm (22.4 in) Deep
    Weight: 33.0 kg (72.8 lb)
    Case Style (Standard): Rack Mount with Rear Panel Connectors
    Case Style (Optional): Bench Mount, Front Panel Connector

    Electrical Specifications

    Frequency Range: 10 kHz to 100 MHz
    Nominal Output Power: 400W
    Gain Variation: 2 dB
    Harmonics: -20 dBc Maximum
    Output Impedance: 50
    Input VSWR: 2:1 Maximum
    AC Supply: 184 to 264 VAC, Single Phase
    Supply Frequency Range: 47/63 Hz
    Line Power: <2 kVA

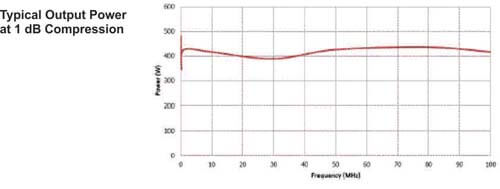

    Charts
    View the RF Power Amplifiers Model 8000-028 charts below
