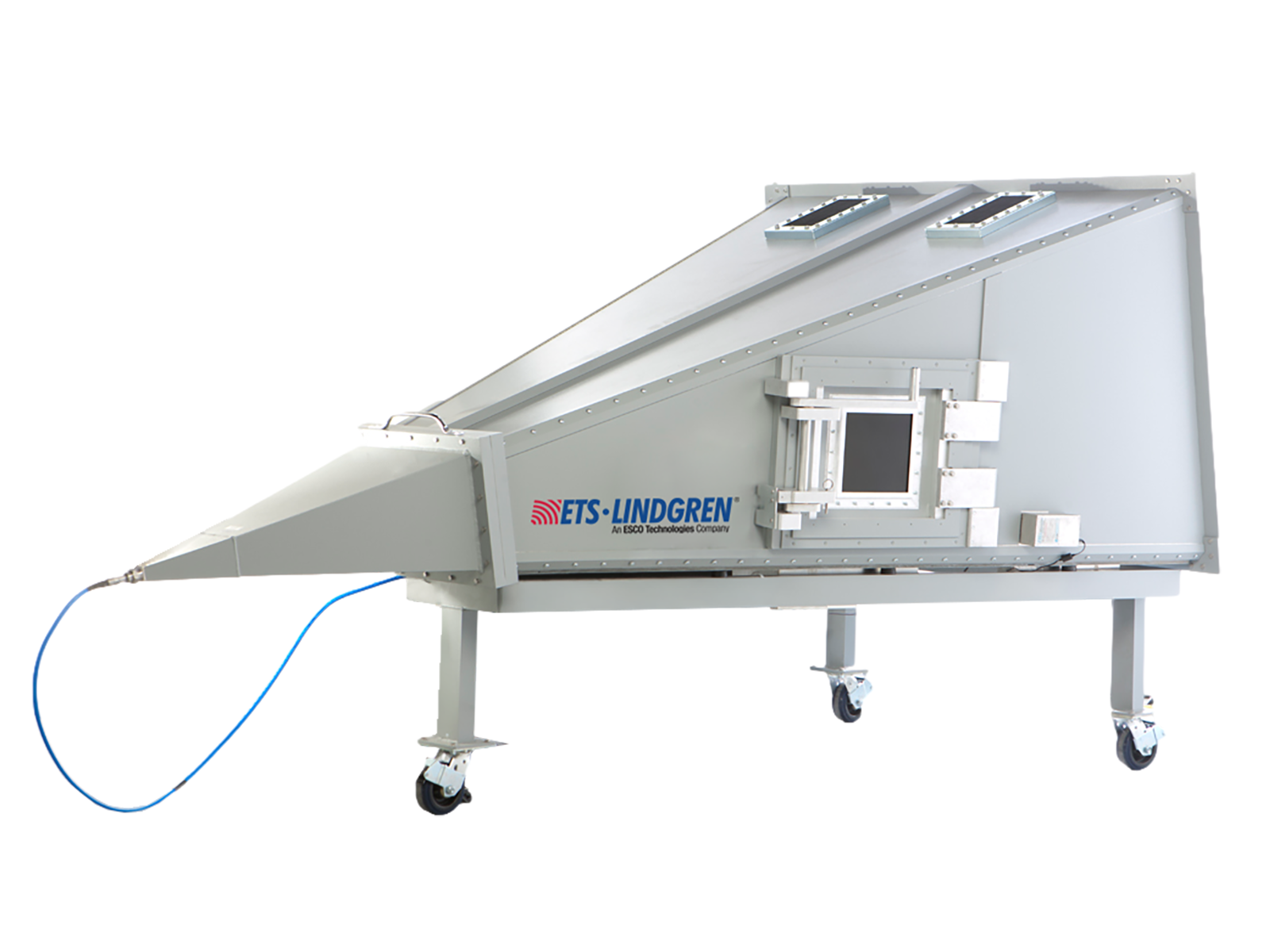

5405 GTEM! Test Cell
The Model 5405 GTEM! Test Cell saves time for labs conducting radiated emissions and radiated immunity tests.
An Efficient Time Saver for Radiated Emissions and Radiated Immunity Testing in Test Labs
Model 5405 GTEM! Test Cell enables users to perform radiated
emissions and radiated immunity tests in less time than either an OATS or in a chamber. Tests can be performed quickly and accurately throughout the product life cycle. Beginning with design quali cation testing and moving through to precompliance
testing, full-compliance testing, and production sampling, the Model 5405 GTEM! Test Cell is a time saving device for your test lab. A typical radiated emissions test (10,000 point scan) can be completed in 15 minutes or less, while a typical radiated immunity test can usually be completed in half the normal time.
The GTEM lends itself best to the measurement of devices that are self-contained with minimal cables that fit within a test volume that is 1/3 the height of the septum and 2/3 the width. The GTEM 5405 and GTEM 5411 models can be used for high voltage pulse testing using the optional High voltage (HV) feed and a pulse source for example when testing to MIL STD RS 105.
For All Phases of EMC Testing:
- Emissions, Immunity, and Shielding Effectiveness
- Design Qualification
- Pre-Compliance
- Full Compliance IEC 61000-4-20 ANSI C63.4
