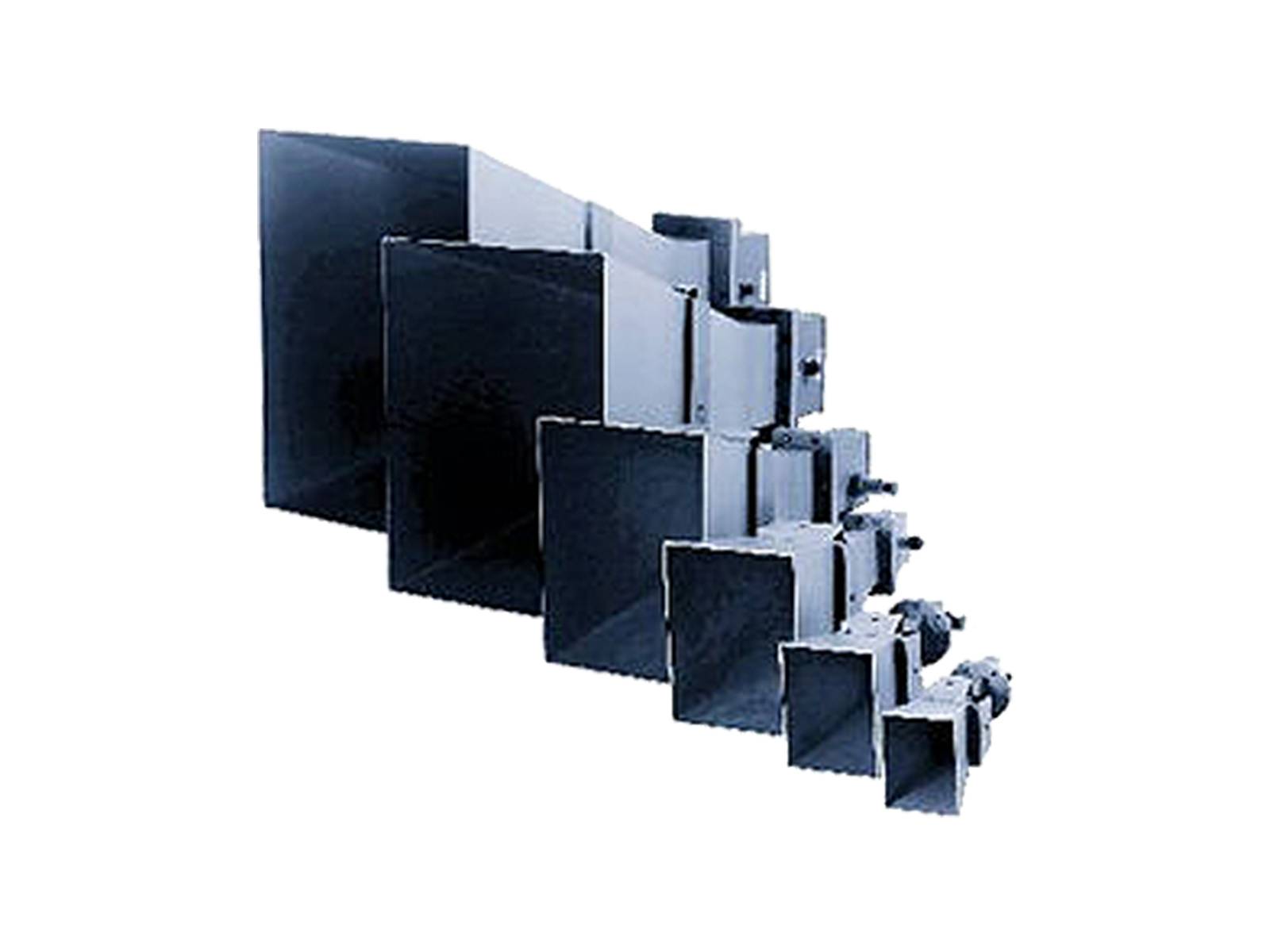

3160 Pyramidal Standard Gain Antenna

3160 Pyramidal Standard Gain Antenna

ETS-Lindgren's Model 3160 Standard Gain Horns cover a multi-octave bandwidth of 1 GHz to 40 GHz. All models in the series are linearly polarized, have medium gain, optimum half power beamwidth (equal in both horizontal and vertical planes), and low VSWR.

ETS-Lindgren's model 3160 Standard Gain Horns cover a multi-octave bandwidth of 1 GHz to 40 GHz. All models in the series are linearly polarized, have medium gain, optimum half power beamwidth (equal in both horizontal and vertical planes), and low VSWR. Antenna factors are constant throughout the entire operating frequency range. Comparisons of measured versus computed gain have been found to be within +/- 0.5 dB. ANSI C63.4 recommends the use of standard gain horn antennas as a reference standard above 1 GHz.

While the coaxial feed allows power input of up to 550 W (Models 3160-01, 02, 03), higher power input is possible by removing the detachable feed and direct mounting the flange to an amplifier waveguide port. While the coaxial feed allows power input of up to 550 W (Models 3160-01, 02, 03), higher power input is possible by removing the detachable feed and direct mounting the flange to an amplifier waveguide port.

Key Features
  • Constant Antenna Factor Over Frequency
  • Complete with Feed, Waveguide, Mount
  • Increased Power Dissipation
  • Optimal Beam Width
  • Low VSWR
Product Details
Physical Specifications
Model
Connectors
Waveguide type
Weight
Width
Depth
Height
3160-01
Type N Female
WR-770
25.00 kg (55.12 lb)
63.22 cm (24.89 in)
103.25 cm (40.65 in)
47.50 cm (18.70 in)
3160-02
Type N Female
WR-650
10.00 kg (22.05 lb)
53.44 cm (21.04 in)
88.29 cm (34.76 in)
40.18 cm (15.82 in)
3160-03
Type N Female
WR-430
4.55 kg (10.03 lb)
34.65 cm (13.64 in)
64.14 cm (25.25 in)
26.65 cm (10.49 in)
3160-04
Type N Female
WR-284
2.27 kg (5.00 lb)
24.13 cm (9.50 in)
55.25 cm (21.75 in)
18.14 cm (7.14 in)
3160-05
Type N Female
WR-187
1.62 kg (3.57 lb)
16.33 cm (6.43 in)
29.90 cm (11.77 in)
12.24 cm (4.82 in)
3160-06
Type N Female
WR-137
0.80 kg (1.76 lb)
12.24 cm (4.82 in)
29.90 cm (11.77 in)
9.04 cm (3.56 in)
3160-07
Type N Female
WR-90
0.43 kg (0.95 lb)
8.06 cm (3.17 in)
22.63 cm (8.91 in)
6.26 cm (2.46 in)
3160-08
Type N Female
WR-62
0.28 kg (0.62 lb)
5.54 cm (2.18 in)
14.00 cm (5.51 in)
4.27 cm (1.68 in)
3160-09
Type K Female
WR-42
0.11 kg (0.24 lb)
3.84 cm (1.51 in)
10.49 cm (4.13 in)
2.95 cm (1.16 in)
3160-10
Type K Female
WR-28
0.06 kg (0.13 lb)
2.76 cm (1.09 in)
8.69 cm (3.42 in)
2.15 cm (0.85 in)

Electrical Specifications
Model
Frequency
E-Plane
H-Plane
Maximum Continuous Power
Antenna Factor
Gain

Typical Field Strength
Pattern Type
Polarization
3160-01
0.96 GHz to 1.46 GHz
26
27
550 W
15.4 dB (1/m)
16.5 dBi
700 V/m
Directional
Linear
3160-02
1.12 GHz to 1.70 GHz
26
26
550 W
16.9 dB (1/m)
16.3 dBi
700 V/m
Directional
Linear
3160-03
1.70 GHz to 2.60 GHz
27
27
550 W
20.6 dB (1/m)
16.3 dBi
650 V/m
Directional
Linear
3160-04
2.60 GHz to 3.95 GHz
26
27
250 W
23.7 dB (1/m)
16.7 dBi
500 V/m
Directional
Linear
3160-05
3.95 GHz to 5.85 GHz
26
27
250 W
27.3 dB (1/m)
16.7 dBi
500 V/m
Directional
Linear
3160-06
5.85 GHz to 8.20 GHz
24
25
250 W
29.9 dB (1/m)
17.1 dBi
500 V/m
Directional
Linear
3160-07
8.20 GHz to 12.40 GHz
26
26
250 W
33.5 dB (1/m)
16.9 dBi
500 V/m
Directional
Linear
3160-08
12.40 GHz to 18.00 GHz
26
27
200 W
37.1 dB (1/m)
16.7 dBi
435 V/m
Directional
Linear
3160-09
18.00 GHz to 26.50 GHz
27
27
50 W
40.3 dB (1/m)
16.8 dBi
220 V/m
Directional
Linear
3160-10
26.50 GHz to 40.00 GHz
27
27
10 W
43.5 dB (1/m)
17.0 dBi
100 V/m
Directional
Linear
