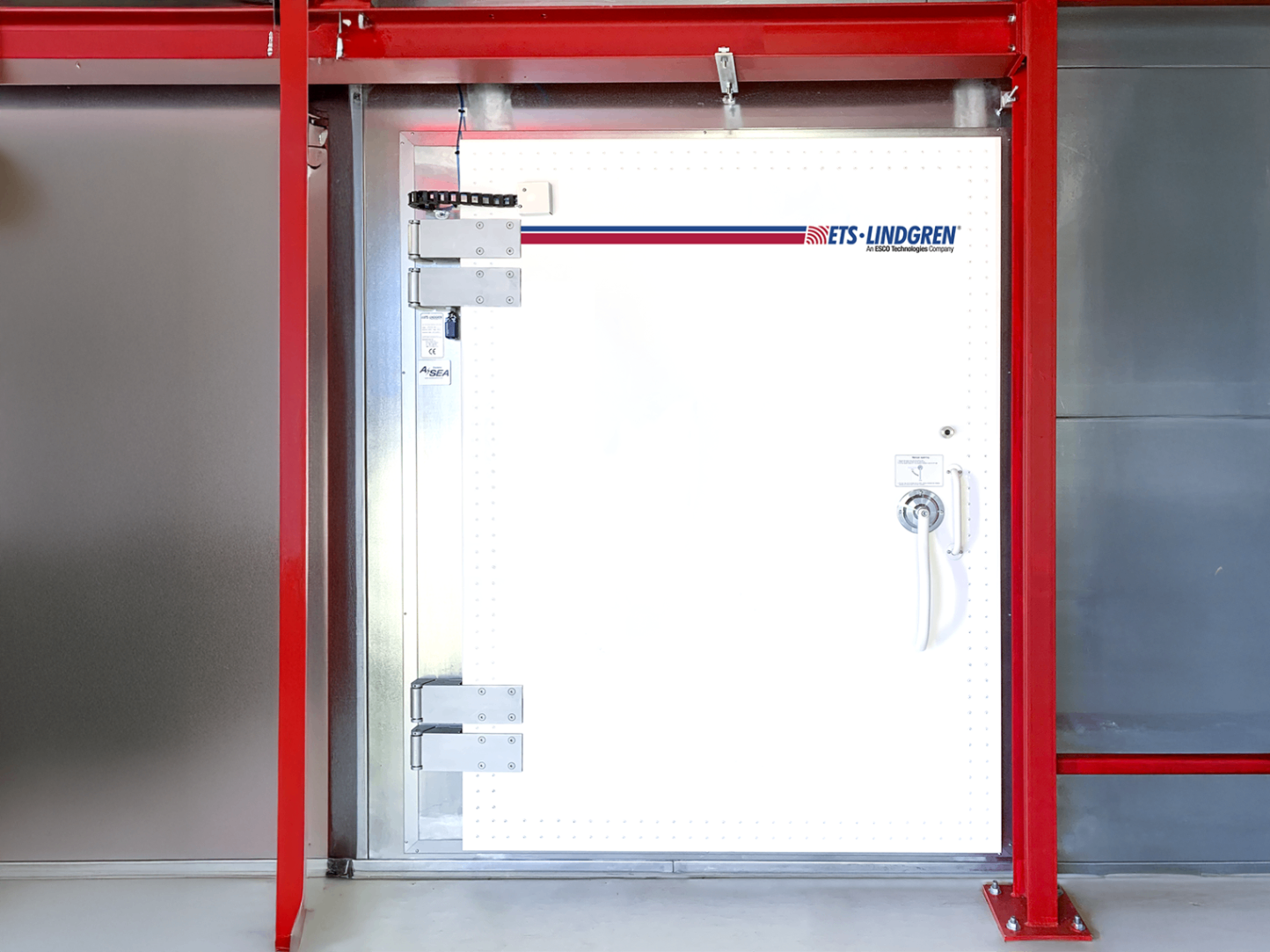

RFD-100 Swing Door

High-Performance RF Door for Secure Shielding

RFD-100 RF Shielded Doors deliver durable, high-performance RF attenuation for shielded rooms, test chambers, and secure facilities requiring consistent electromagnetic isolation. Patented hinge geometry allows the door to swing normally when open but close parallel to the frame, preserving RF seal quality. A recessed contact finger system engages with cam followers to create an accurate, repeatable RF seal without increasing operating force. These doors support ferrite and absorber loading, integrate easily with bolted, clamped, or welded enclosures, and can be enhanced with optional pneumatic assist systems for high-traffic environments.

Key Advantages:

• Available in Standard and Custom Sizes
• Supports Pneumatic Operation for Reduced Effort in Frequent-Use Applications
• Accommodates Ferrite Tiles and Absorbers Up to 50 kg/m²
