FT-1500 Ferrite Tile Absorber

Easily Implementable Machined Ferrite Tile Absorber for All Sides of a Chamber

The FT-1500 and FT-1500C combines precision machined ferrite tile with a tuned dielectric backing layer to create a high performance, ultra-thin absorber, with each of the six surfaces machined to tolerate 0.13 mm. Both variations offer broadband absorber performance in a thin profile.

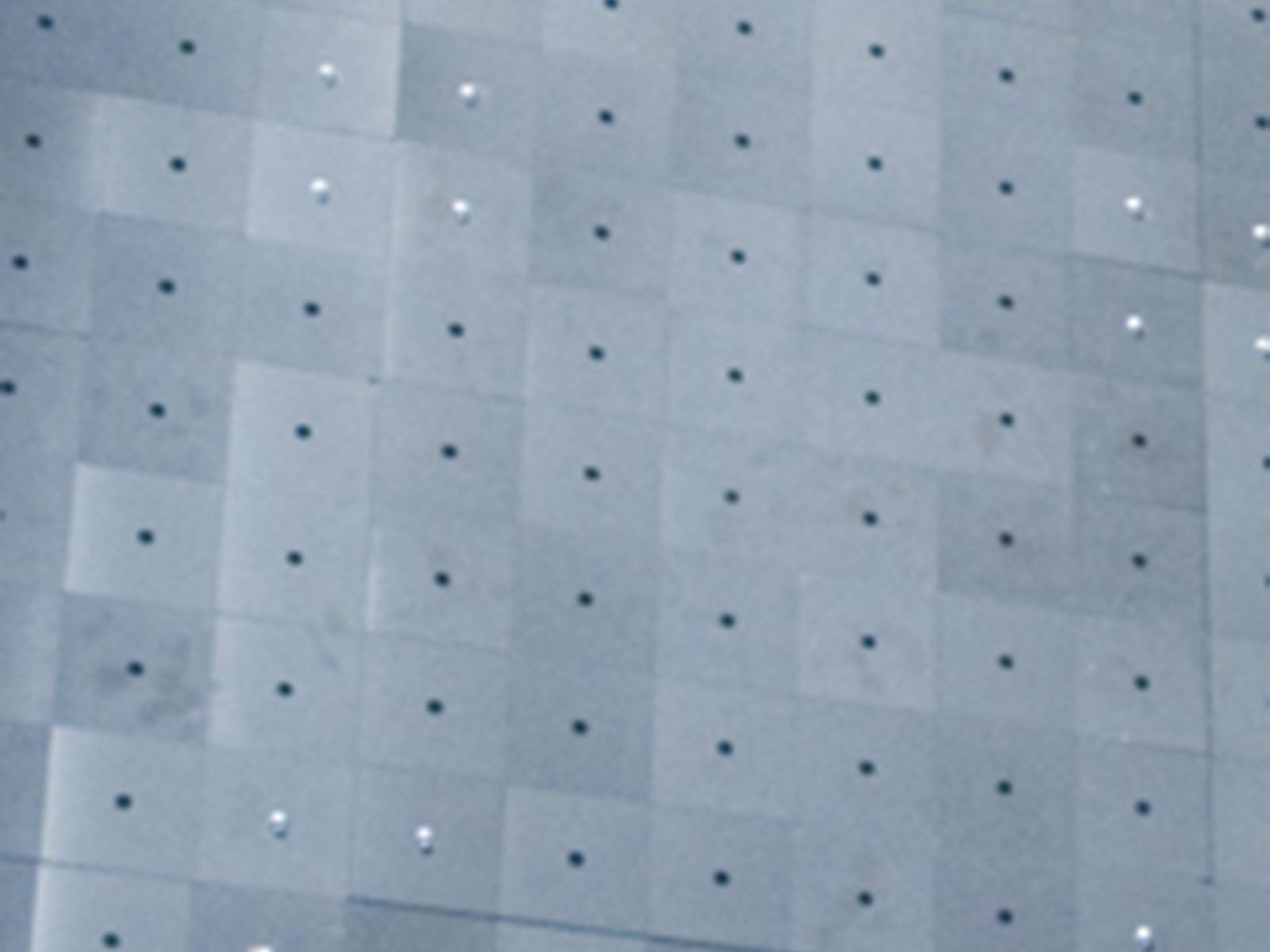

These precise dimensional tolerances allow for smooth tile-to-tile alignment, reducing occurrence gaps that degrade performance. Both FT-1500 and FT-1500C are supplied as rigid 600 mm x 600 mm (23.62 in x 23.62 in) panels.

FT-1500 is suitable for mounting on walls and ceilings, while FT-1500C is a variation that adds special commercial grade carpet over the surface of the tile for use in flooring. The floor panels can easily be assembled, reconfigured, and removed as needed.

Key Advantages:

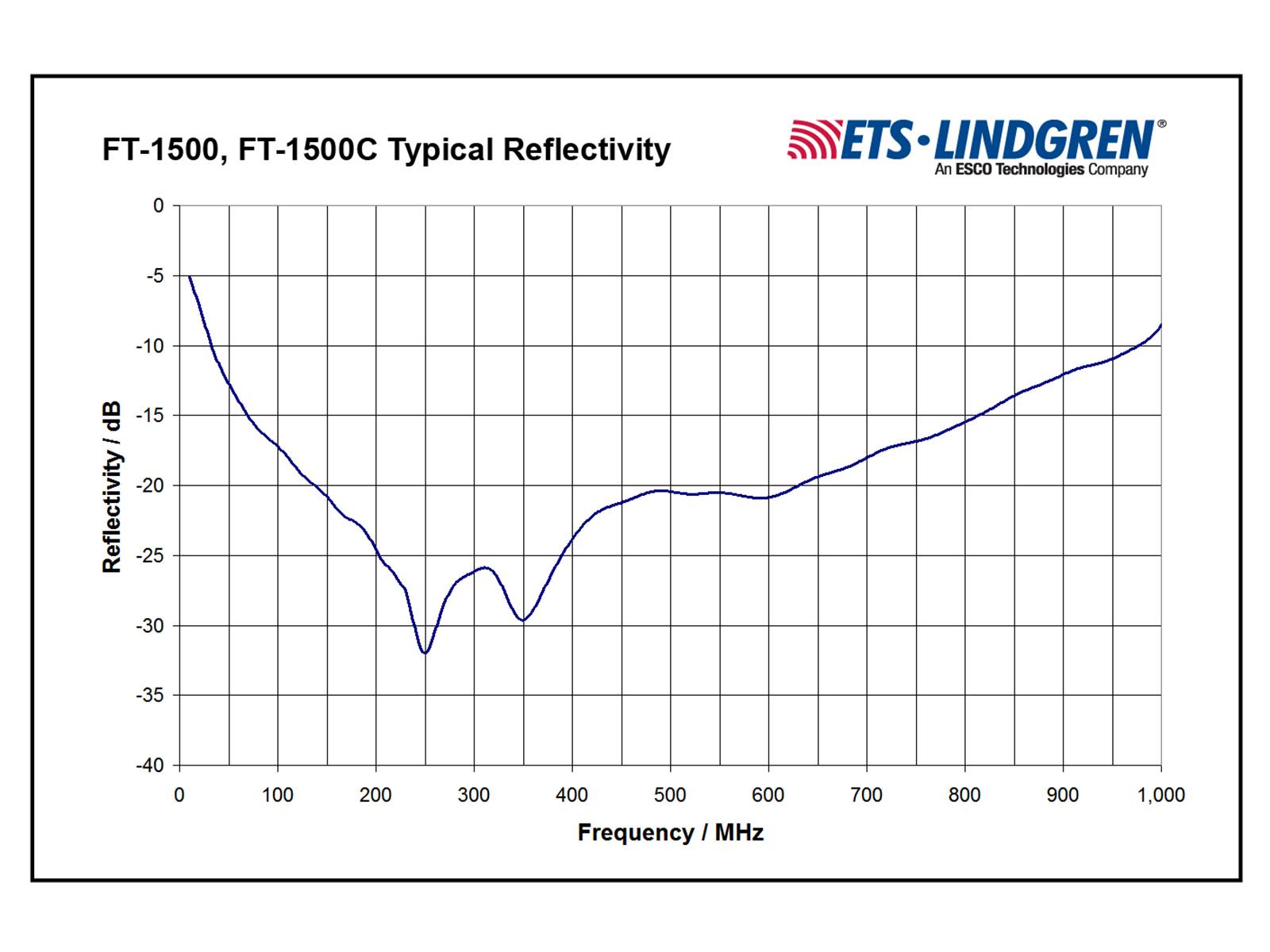

• Frequency Range: 30 MHz to 1000 MHz
• Precision Machined Tiles
• Easy to Install and Remove
• Applications: ANSI C63.25 CISPR16-1-4IEC610000-4-3
