FS-200 FerroSorb EMC Absorber

Hybrid Absorber for Use with Ferrite Tile Backing

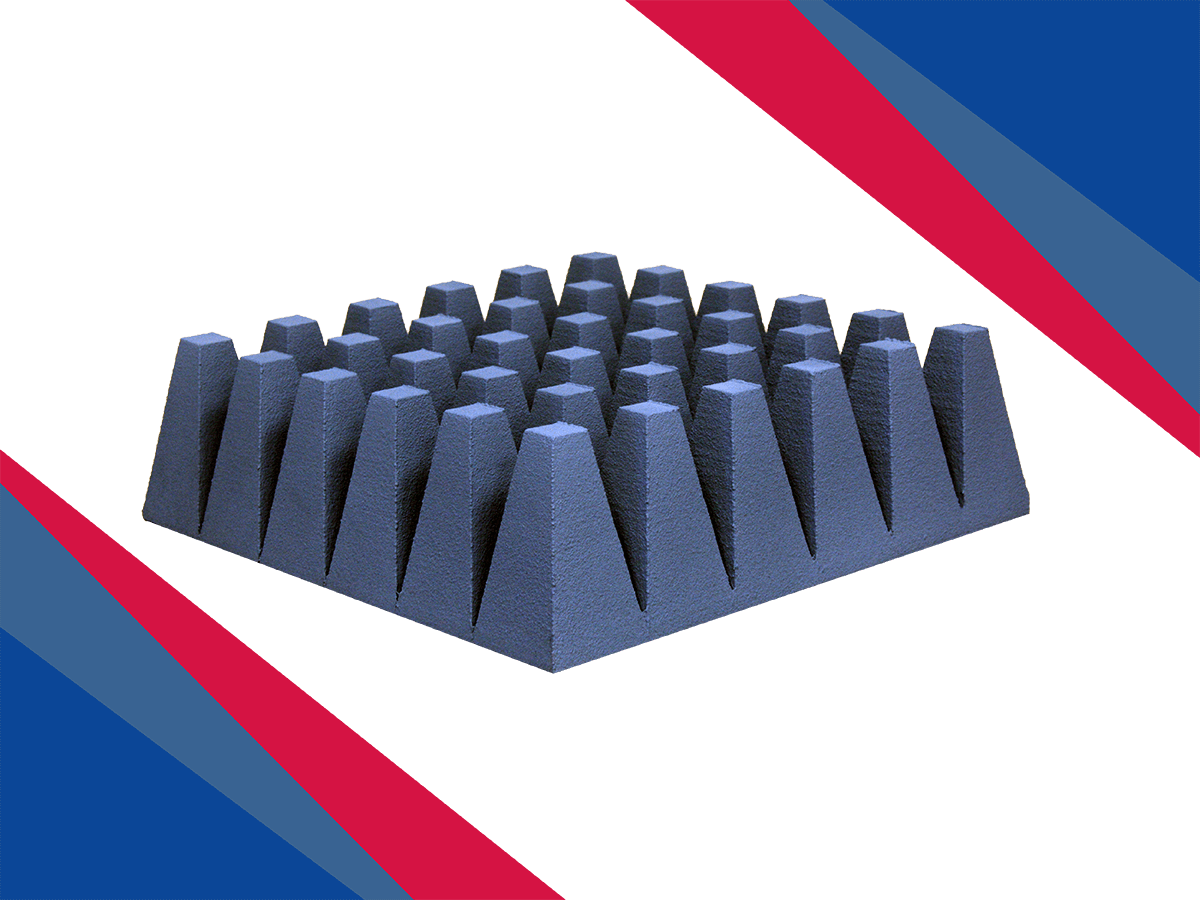

FerroSorb FS-200 is a hybrid absorber that is part of the FS Family (ferrite tile and carbon loaded material). The FAA-200 loaded foam part is designed to match the impedance of ETS‑Lindgren's FT-1500 Ferrite Tile Panel. When combined, these two absorber technologies become the FS-200 absorber system.

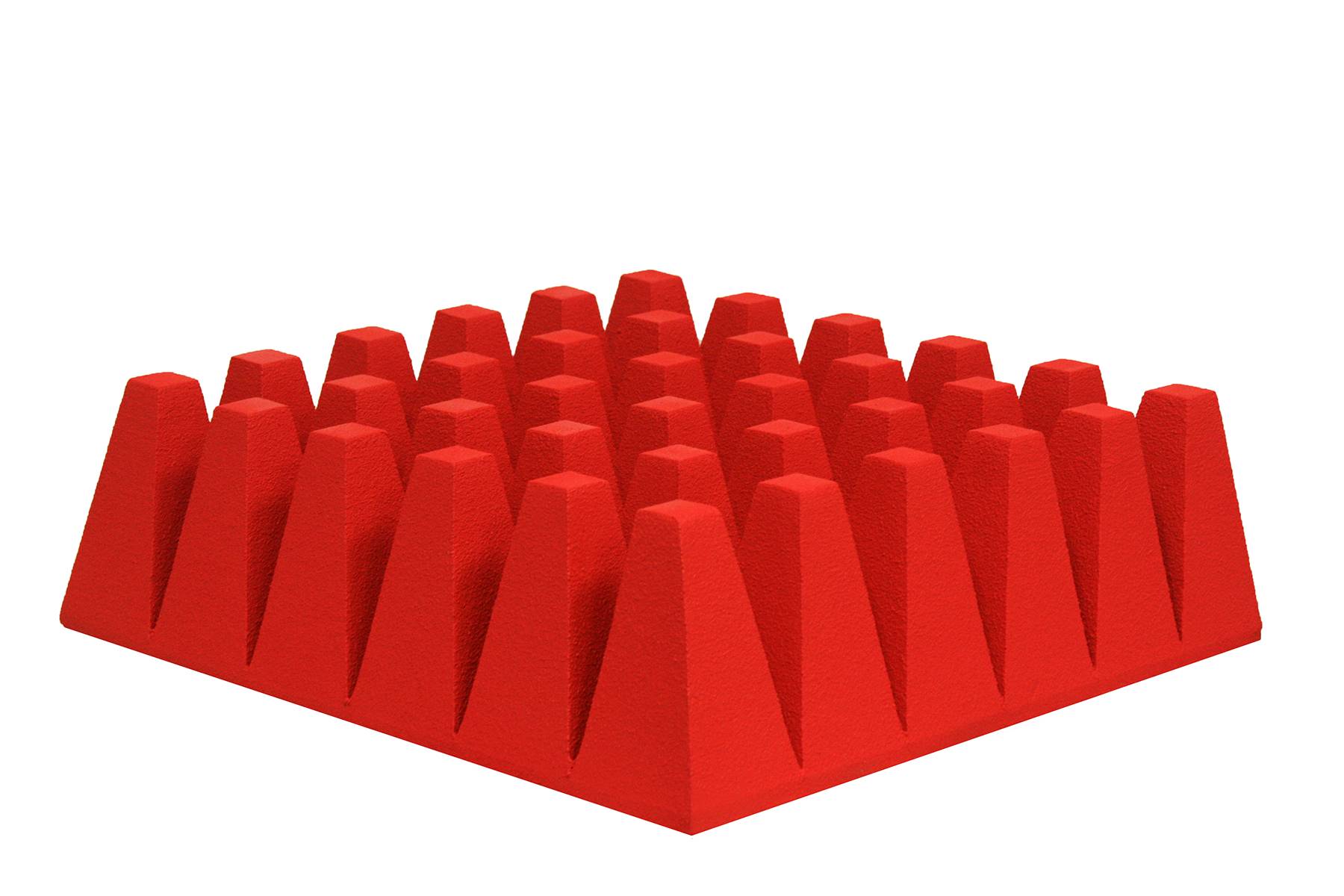

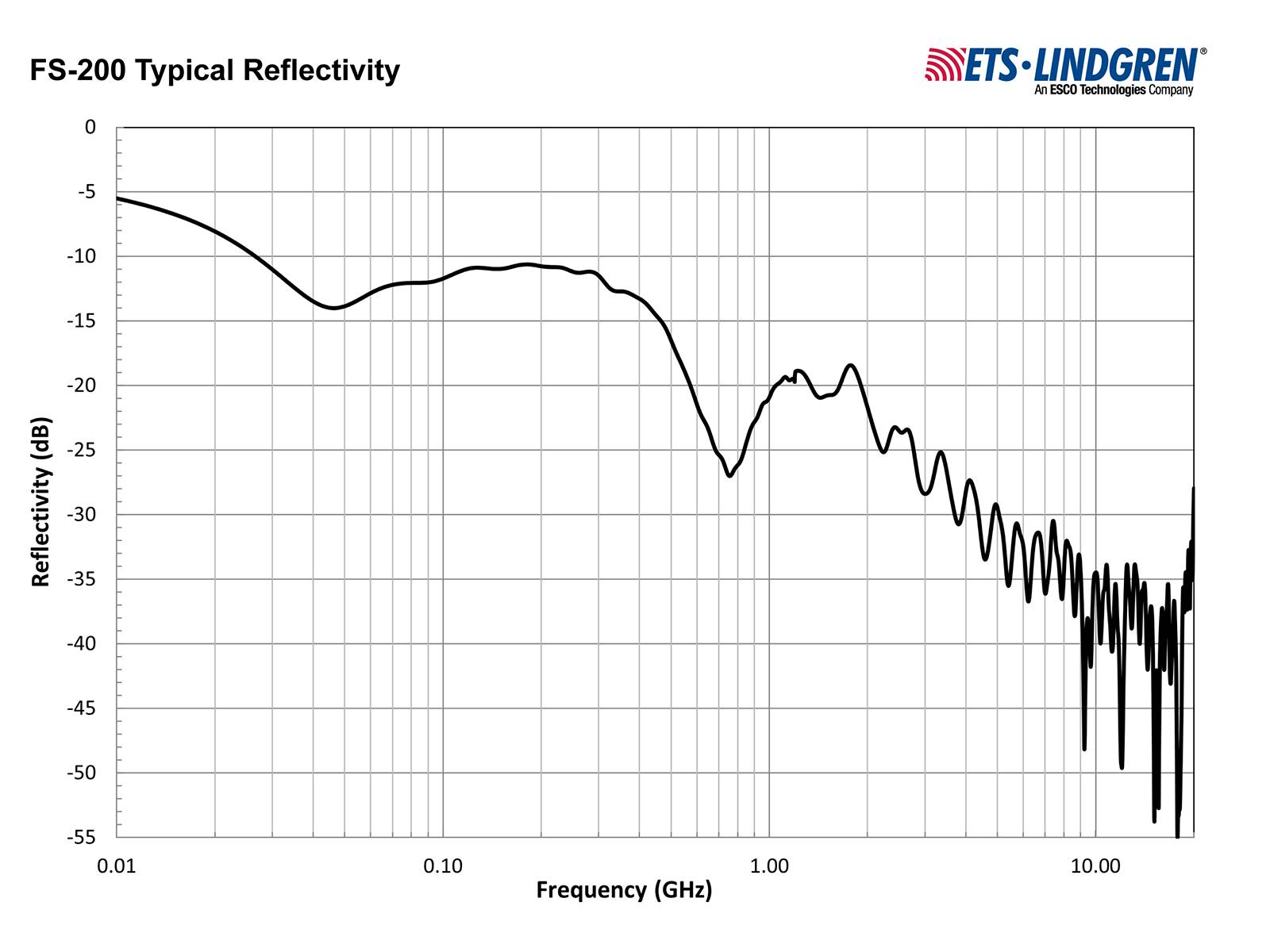

FS-200 has a broad band range of 30 MHz to 40 GHz, meeting the required range for MIL-STD 461 and CISPR 25. It also has a low profile with excellent absorption for the entire frequency range. FS-200 ships in standard 60 cm x 60 cm (23.6 in x 23.6 in) pieces with 36 truncated pyramids per piece. An optional FlexSorb™ treatment available to improve durability while retaining the same excellent performance characteristics.

• Frequency Range: 30 MHz to 40 GHz
• Small Profile
• For Use with Ferrite Tile Backing
• CW Power Handling: Up to 775 W/m² (0.5 W/in²)
• Fire Retardant
• FlexSorb Available
