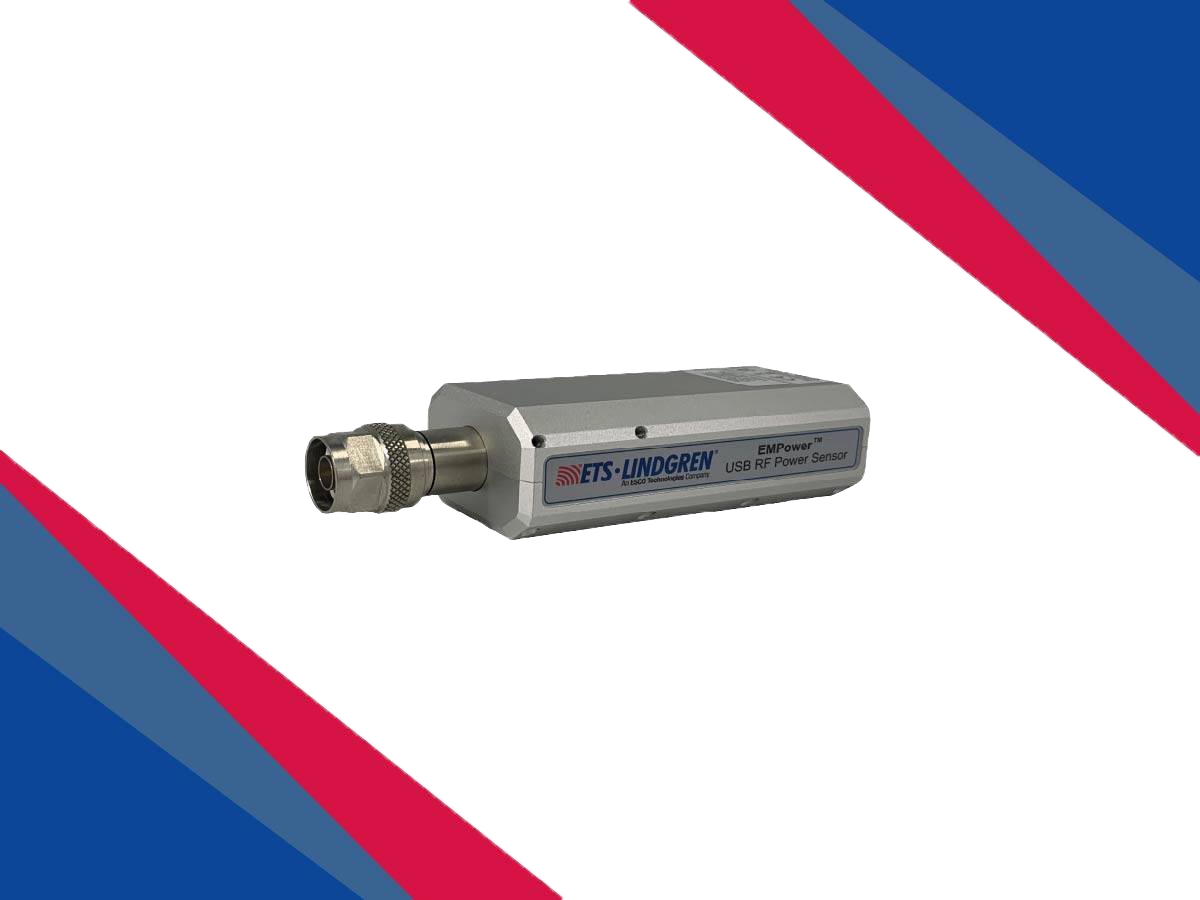

EMPower Pulse RF/Burst Power Meter Model 7002-009

EMPower 7002-009 High-Accuracy RF Power Meter

EMPower 7002-009 is a high-accuracy RF power meter using a true RMS detector to measure both sinusoidal and non-sinusoidal signals with precision. It offers a wide frequency range of 4 kHz to 6 GHz, an 80 dB dynamic range, and fast measurements up to 5 MS/s while maintaining ±0.2 dB accuracy even for high-crest-factor signals. Housed in rugged aluminum with a USB interface, it provides reliable RF shielding and easy integration with TILE! software for streamlined operation.

• True RMS detection ensures accurate measurement of non-sinusoidal RF signals.
• 4 kHz–6 GHz frequency range, 80 dB dynamic range, 5 MS/s measurement speed.
• Durable aluminum housing with USB interface for easy software integration.
