EMCenter™ Field Monitor

The EMCenter Field Monitor is a modular RF platform for EMC and RF testing, supporting up to 7 simultaneously controlled plug-in instrument cards. EMCenter Field Monitors can be manually controlled via touch screen and are equipped with LAN, USB interfaces, as well as the optional GPIB IEEE-488 I/O interface (Model 7000-010). These can control external receivers, amplifiers, power meters, antennas, and other equipment in the test loop.

Add to FavoritesRemove from Favorites

Industries: Academia, Aerospace & Defense, Automotive, Commercial, Wireless

Solutions: EMC, RF Microwave, Wireless/OTA

Share:

Monitor and Control Various RF Applications with Ease

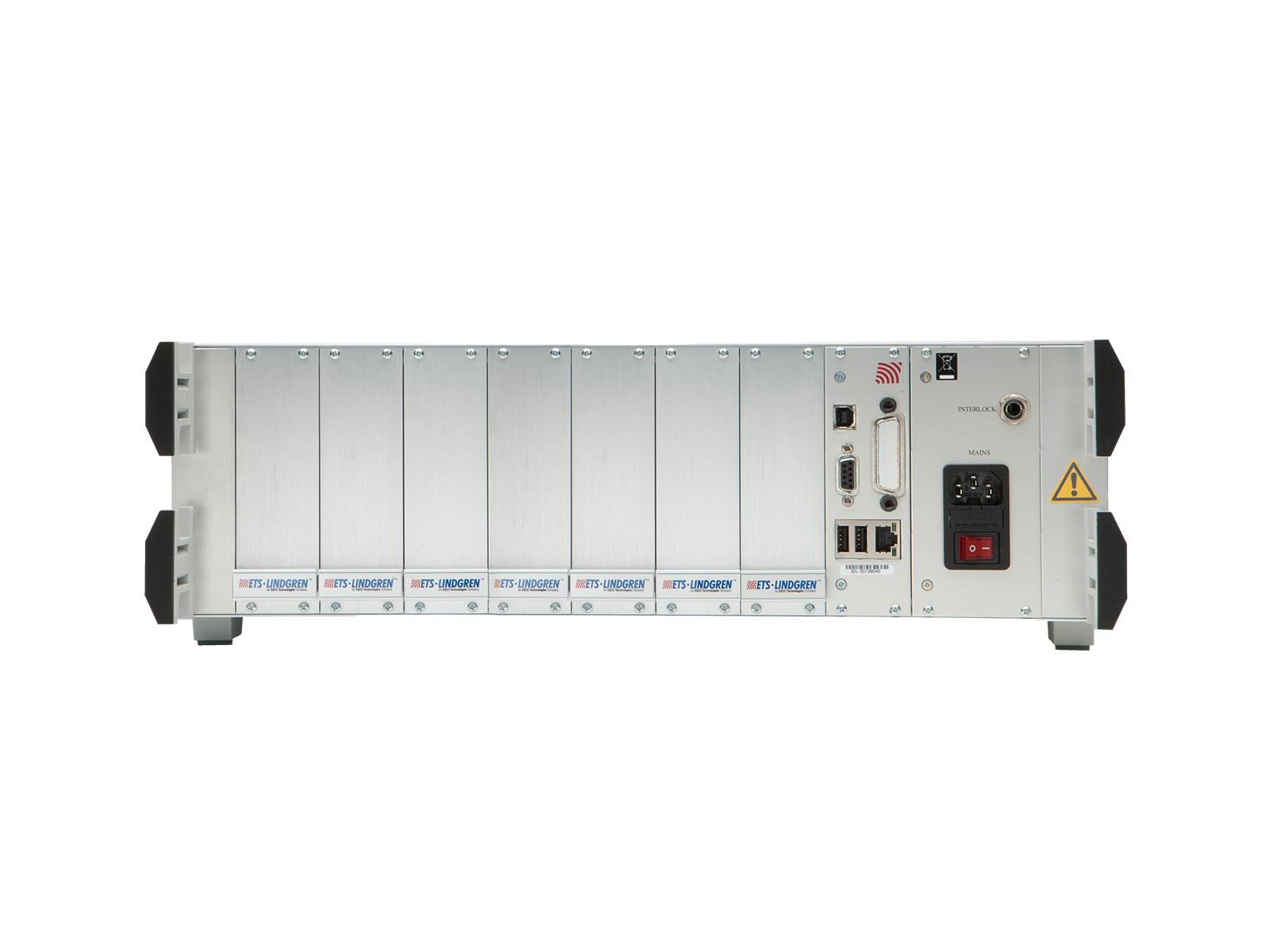

EMCenter Field Monitor is a modular RF platform consisting of an integrated micro-controller, modular chassis, and includes a selection of up to seven EMSense™ plug-in card modules. Additional EMSense cards can be purchased separately to add to your EMCenter Field Monitor at any time. Typical EMCenter Field Monitor applications include EMC and wireless measurements, E-field monitoring, and other RF applications. EMCenter Field Monitors can be manually controlled through a series of menus accessed on the front panel TFT touch screen. The platforms embedded Linux-based software is stored in flash memory to simplify version upgrades. For automated testing, the EMCenter Field Monitor can be controlled with TILE!, EMQuest™ and other PC compatible RF software packages. An optional GPIB IEEE-488 I/O with a LAN interface converts the 7000-001 into the Model 7000-010, in which the software can control external receivers, amplifiers, power meters, antennas, and other equipment in the test loop.

Key Advantages:

Modular Platform for RF Measurements

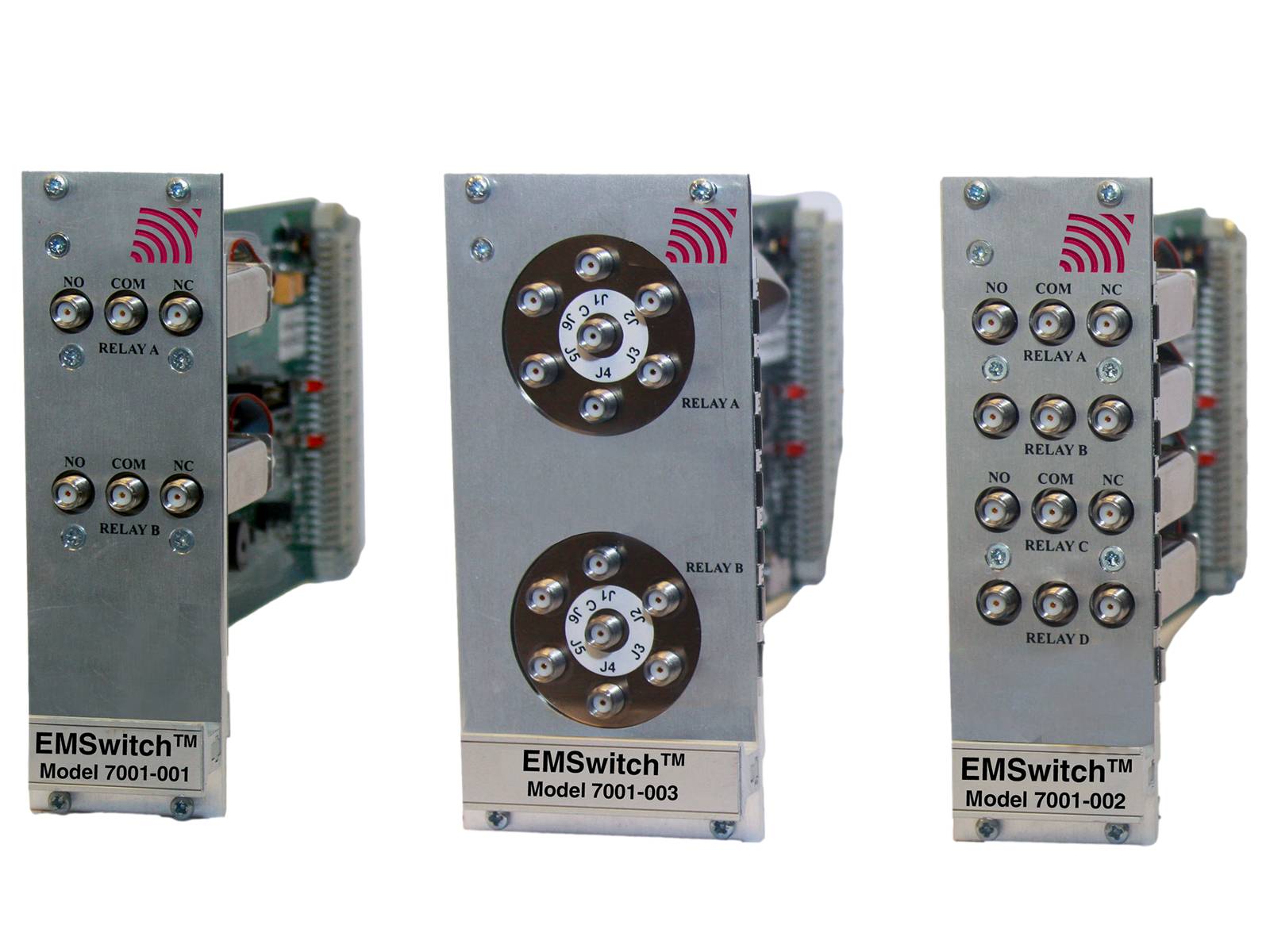

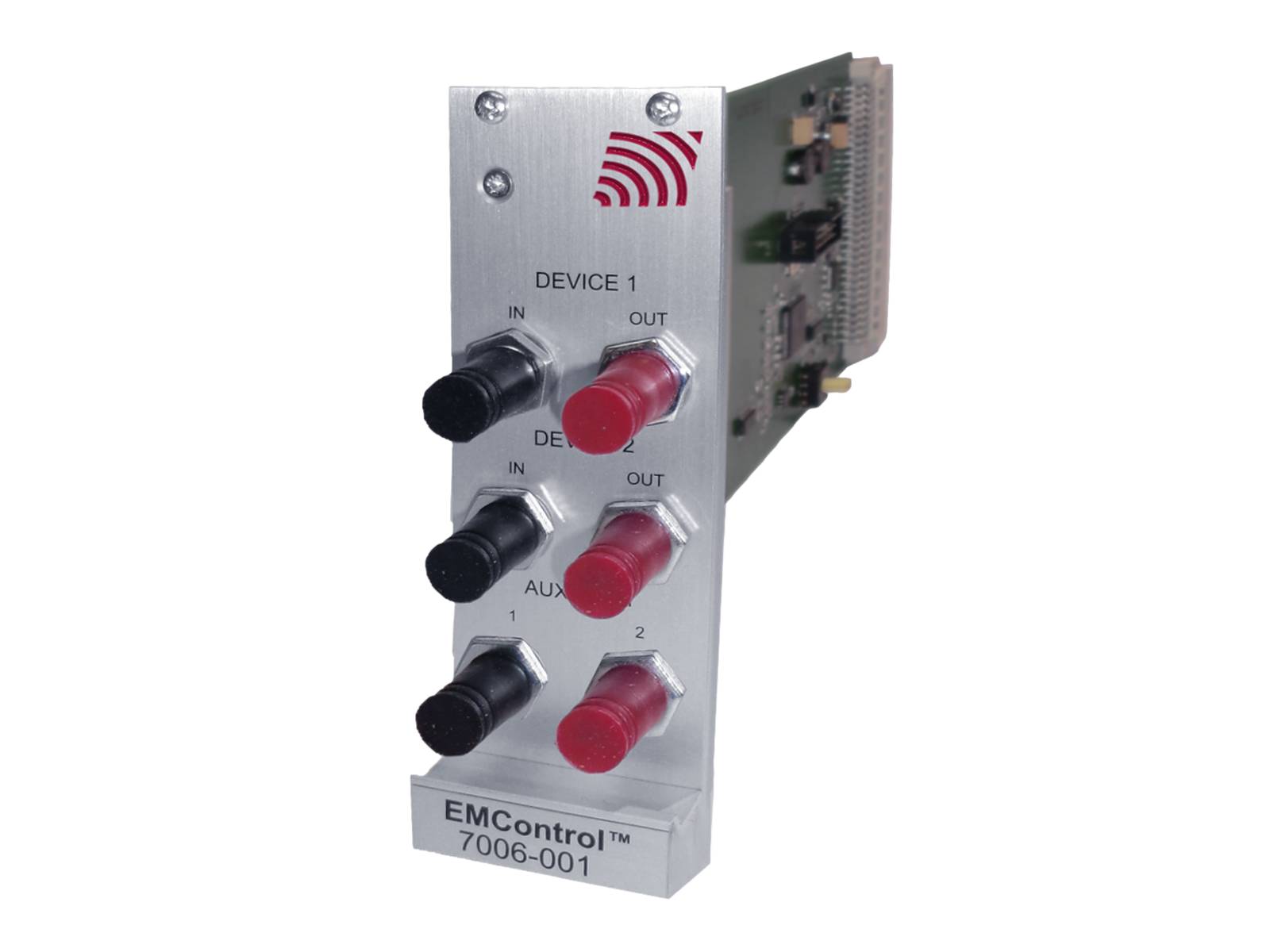

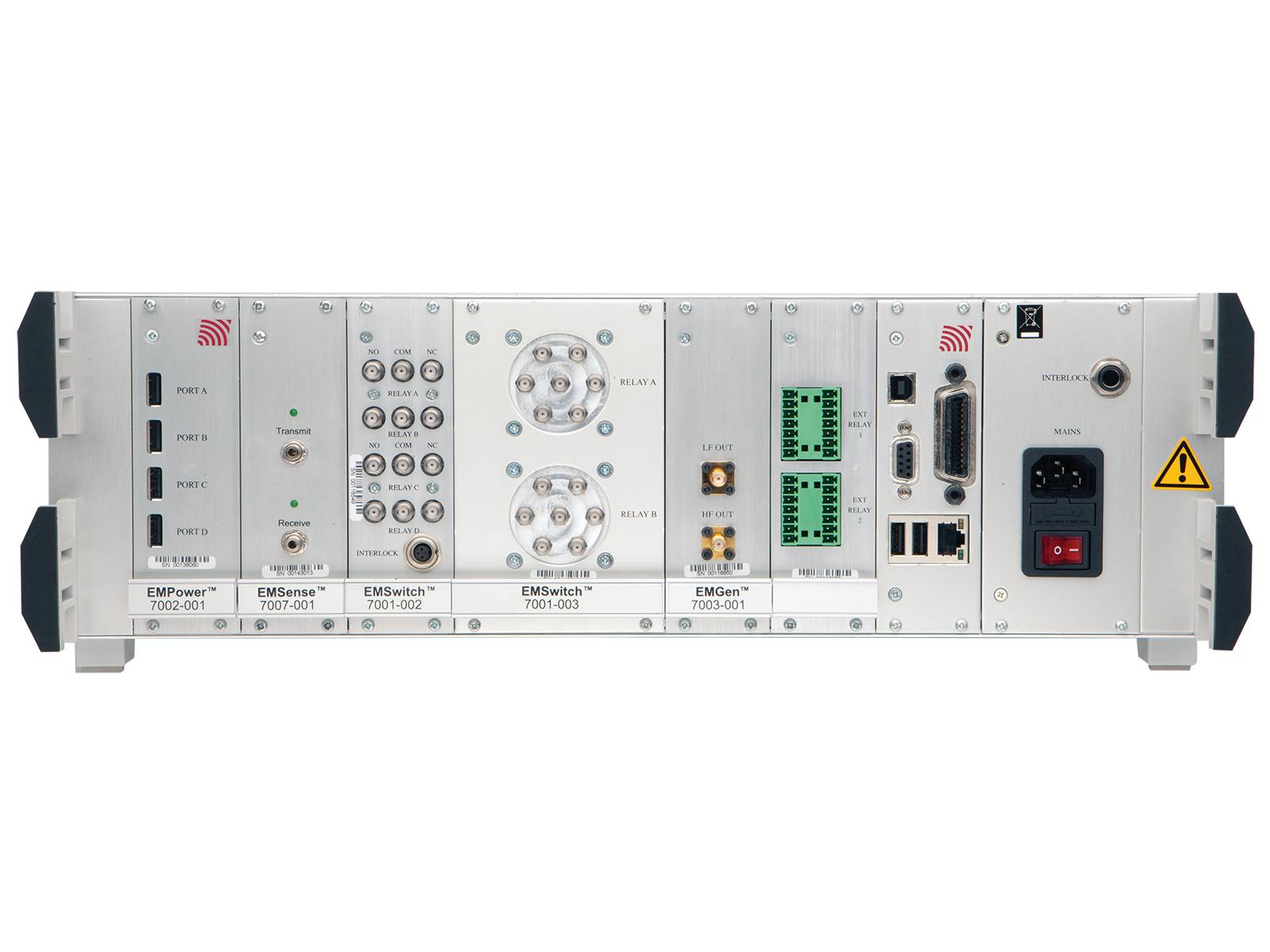

Accomodate EMSense, EMGen™, EMSwitch™, EMPower™, EMControl™ Cards within 7 Available Slots
Reduces Test System Complexity

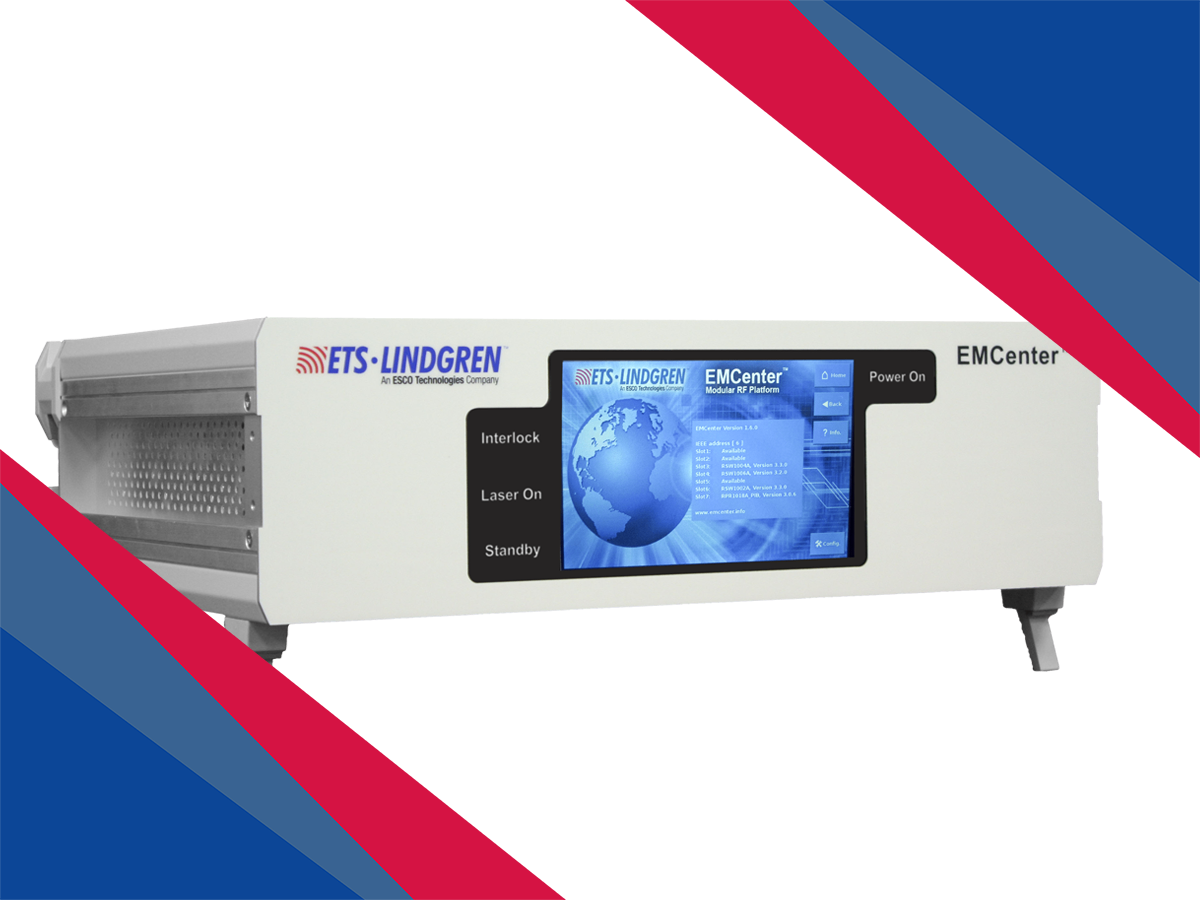

Touch Screen Controls
LAN Interface with GPIB Option (7000-010)
