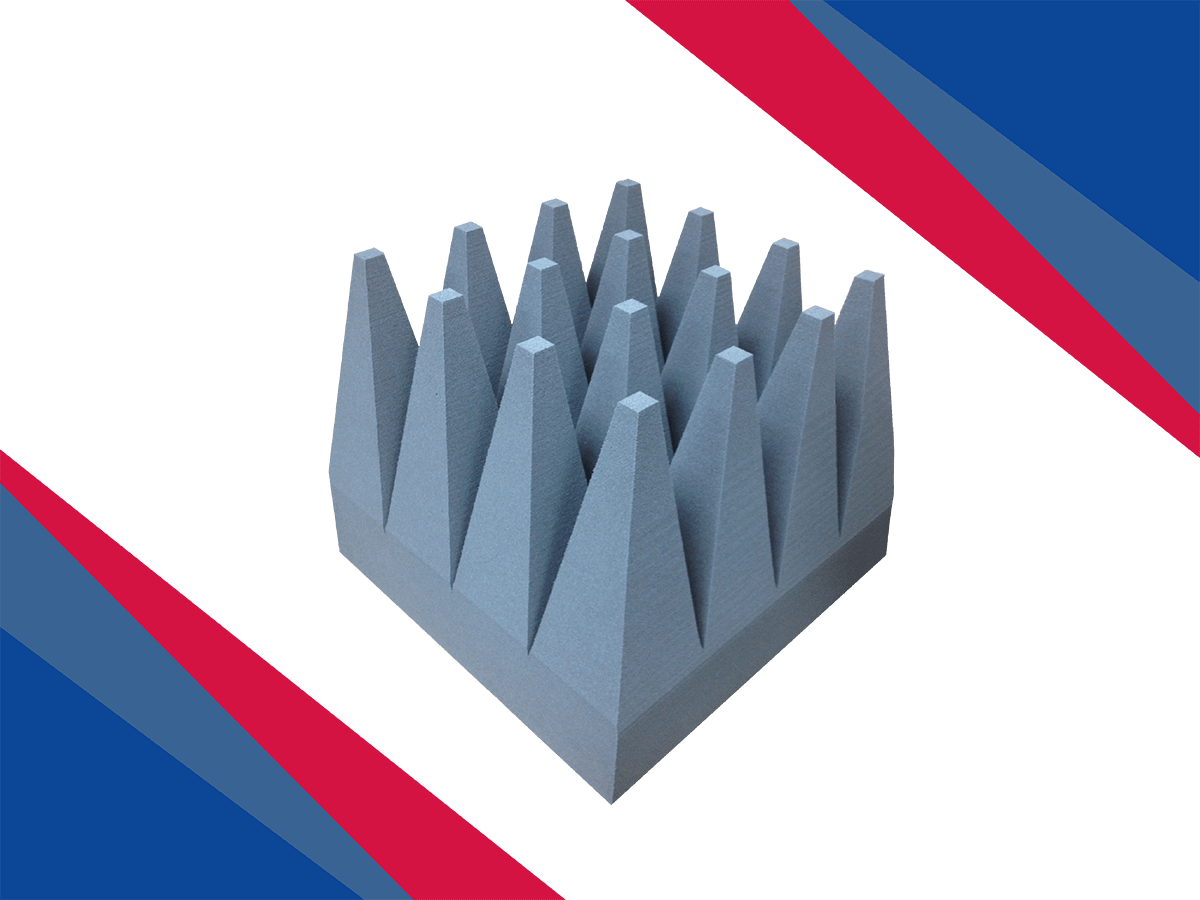

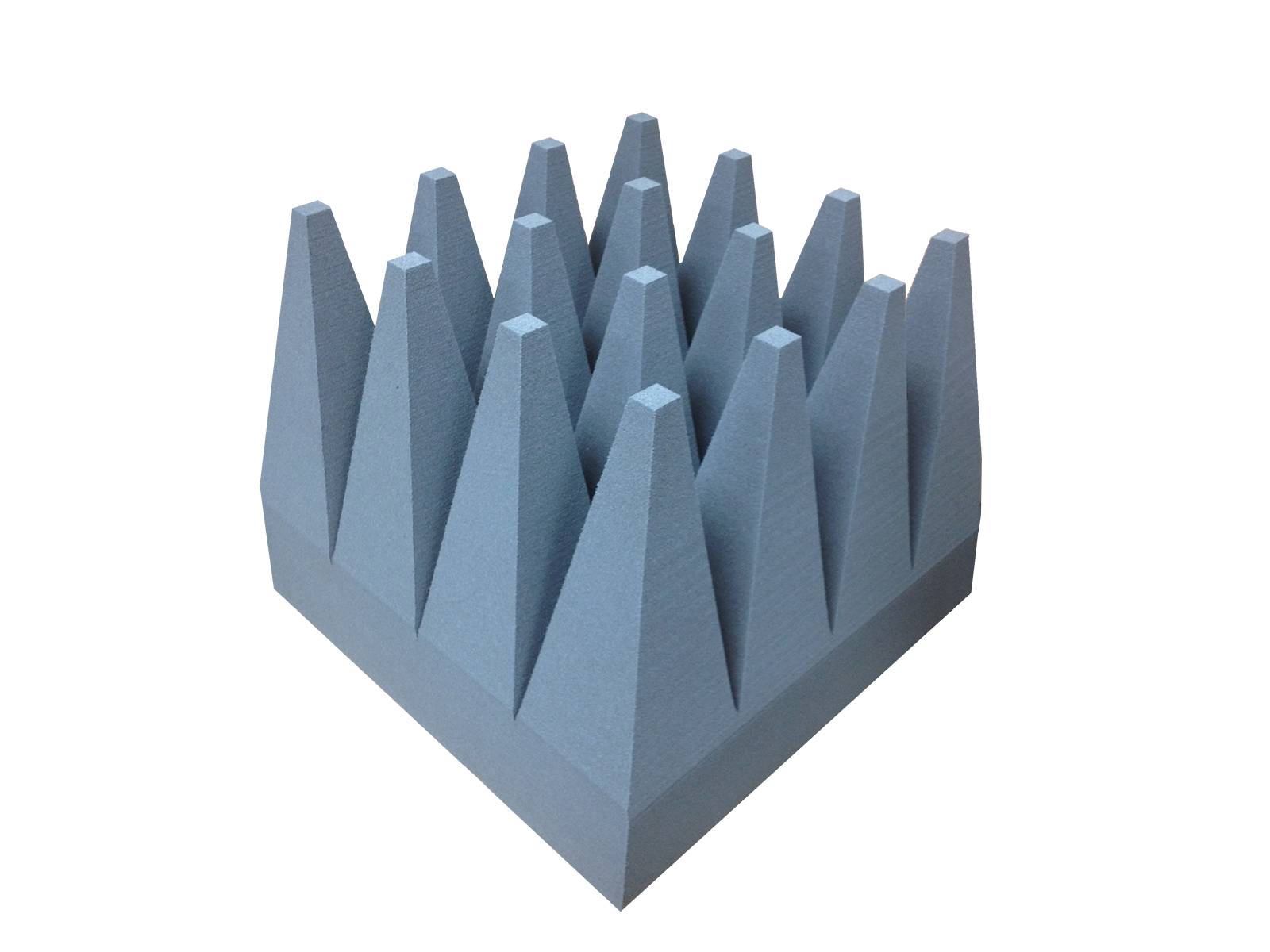

EMC-20PCL EMC Anechoic Absorber

Ultra-Broadband, High-Quality| Low-Density Absorber

The EMC-20PCL is an ultra broadband absorber manufactured with high-quality, low-density polyurethane foam and has been optimized for EMC applications. The absorber undergoes a double immersion process that evenly impregnates the foam with ETS‑Lindgren's proprietary conductive carbon formulation. This process optimizes absorber performance and provides an extra degree of protection against water and fire damage. EMC-20PCL absorber also features blunt tips, allowing for greater working space and reducing the chances of absorber tip damage.
EMC-20PCL can easily be installed into either new construction or as a retrofit to existing chambers. An optional FlexSorb™ treatment available to improve durability while retaining the same excellent performance characteristics.

• Designed for MIL-STD-461D/E/F, and RTCA-DO-160 Testing
• Ultra Broadband Performance: 80 MHz to 40 GHz
• 540 V/m CW Radiated Field Strength
• Maximum CM Power 0.5 W/in² or 775 W/m²
• Power Handling Fire Retardant: Meets NRL 8093 Tests 1,2, & 3, MIT MS-8-21, UL 94, and DIN 4102-B2
• FlexSorb Available
