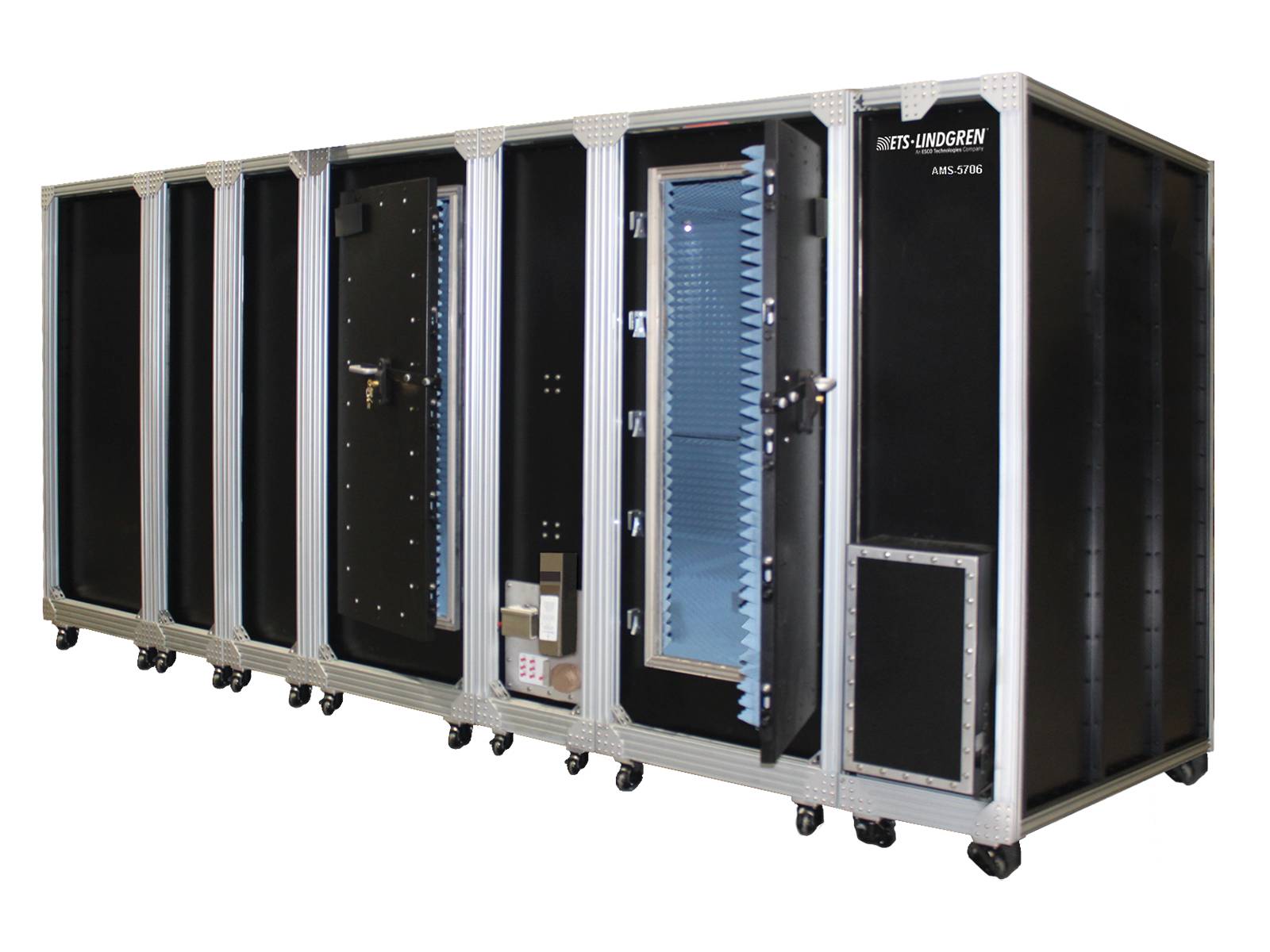

AMS-5706 5G CATR Antenna Measurement System
The AMS-5706 CATR 5G Antenna Measurement System is a modular compact test range with a 45 cm quiet zone, designed for 5G FR2 testing of larger devices like small cells and repeaters. Its seven-segment, roll-in design allows easy setup in standard office or lab spaces while providing precise, multi-axis DUT positioning for up to 10 kg.
Add to FavoritesRemove from Favorites
Add to Favorites
Scalable 5G FR2 Testing Made Easy with AMS-5706
AMS-5706 CATR 5G Antenna Measurement System is a reach-in indirect far-field compact antenna test range (CATR) with a 45 cm QZ. This system is built with a unique approach that slots between a permanent built-in-place chamber, such as our AMS-5703, and a portable chamber, such as our AMS-5705. AMS-5706 utilizes multiple segments small enough to roll through standard doorways, hallways, and elevators found in a typical office or lab. Seven segments are bolted together, and, once in place, form the final structure. The 45 cm QZ targets larger formfactor devices like small-cell base stations, consumer premises equipment, and signal repeaters, along with any CTIA approved phantoms or materials that might prove useful in testing user experience for 5G FR2-capable devices. DUT positioning is handled by a multi-axis positioning system capable of handling 10 kg (22 lb).
