AMS-5705 5G CATR Antenna Measurement System
The AMS-5705 CATR 5G Antenna Measurement System is a compact, semiportable test range designed for 5G FR2 (n257–n262) antenna and device testing. Featuring a 30 cm quiet zone, Qualcomm approval, and CTIA-compliant performance, it enables precise beam characterization and antenna pattern measurements for smartphones, tablets, and arrays up to 30 cm in diameter.
Add to FavoritesRemove from Favorites
Add to Favorites
Next Level 5G Testing with the AMS 5705 CATR System

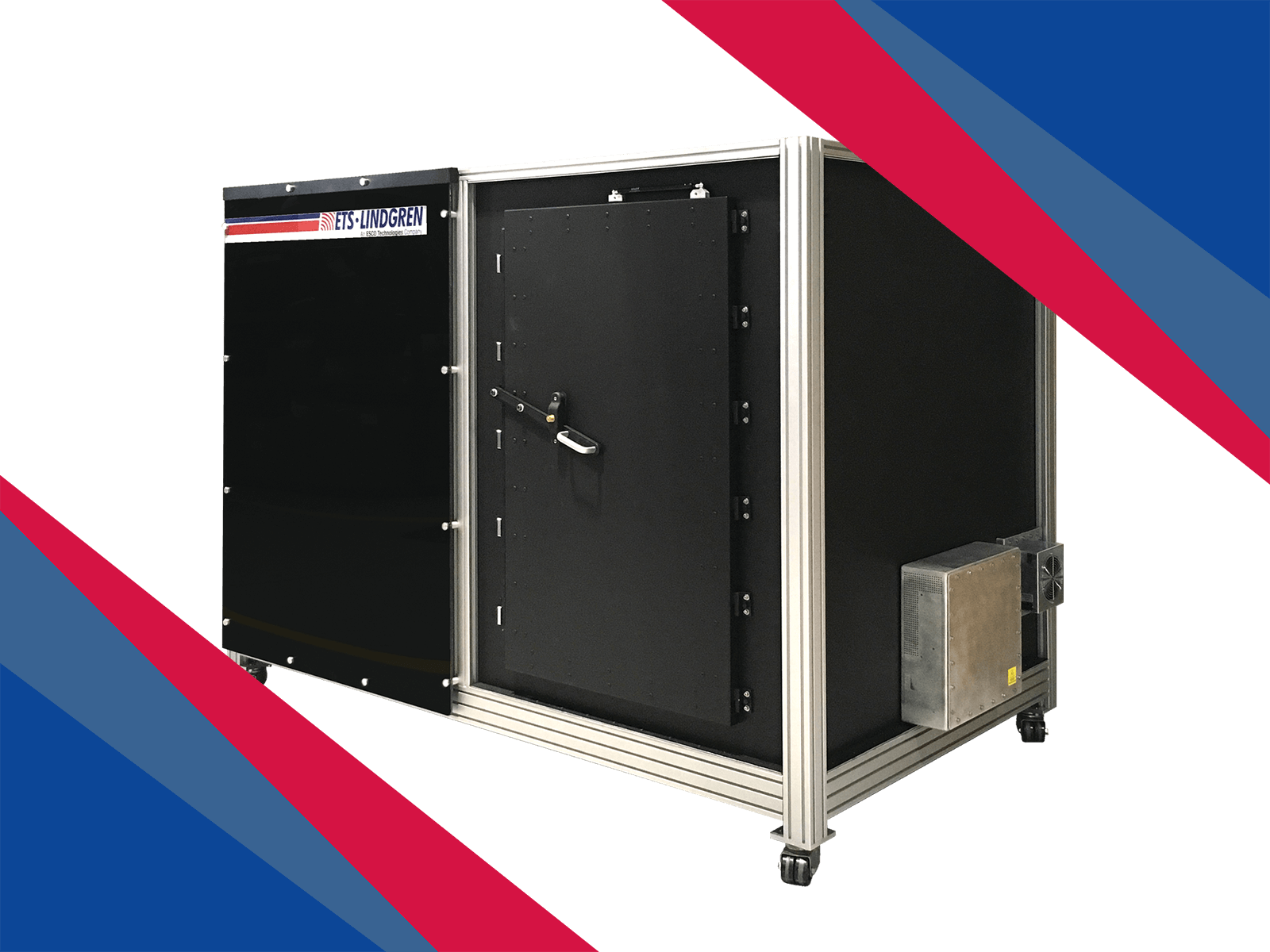

AMS-5705 CATR 5G Antenna Measurement System is an indirect far-field compact antenna test range (CATR) system with a 30 cm QZ. The system meets 3GPP and CTIA quality-of-quiet-zone and phase-validation requirements for 5GNR bands n257 through n262. AMS-5705 is also Qualcomm approved for FR2 beam characterization and verification. Its 30 cm QZ is perfect for 5G FR2-enabled smartphone and tablet testing with CTIA approved phantoms. This model offers 10 kg (22 lb) positioning capacity for the DUT and necessary FR2 phantoms, and provides USB for device communication and power on the multi-axis positioning system (MAPS). AMS-5705 is a reach-in semiportable chamber design on casters that can be relocated as needed through common double-door width office space. This system also supports passive antenna-pattern testing for any antenna array up to 30 cm diameter in the listed frequency range.
