AMS-5704 WiGig Antenna Measurement System
The AMS-5704 WiGig 5G Antenna Measurement System is a compact far-field test setup for precise 3D antenna performance measurements from 50–75 GHz. Featuring RF shielding, mobility, and EMQuest EMQ-100 software integration, it enables accurate testing of antenna arrays and WiGig device performance in both passive and active modes.
Add to FavoritesRemove from Favorites
Add to Favorites
Next-Gen Antenna Testing for 5G and Beyond

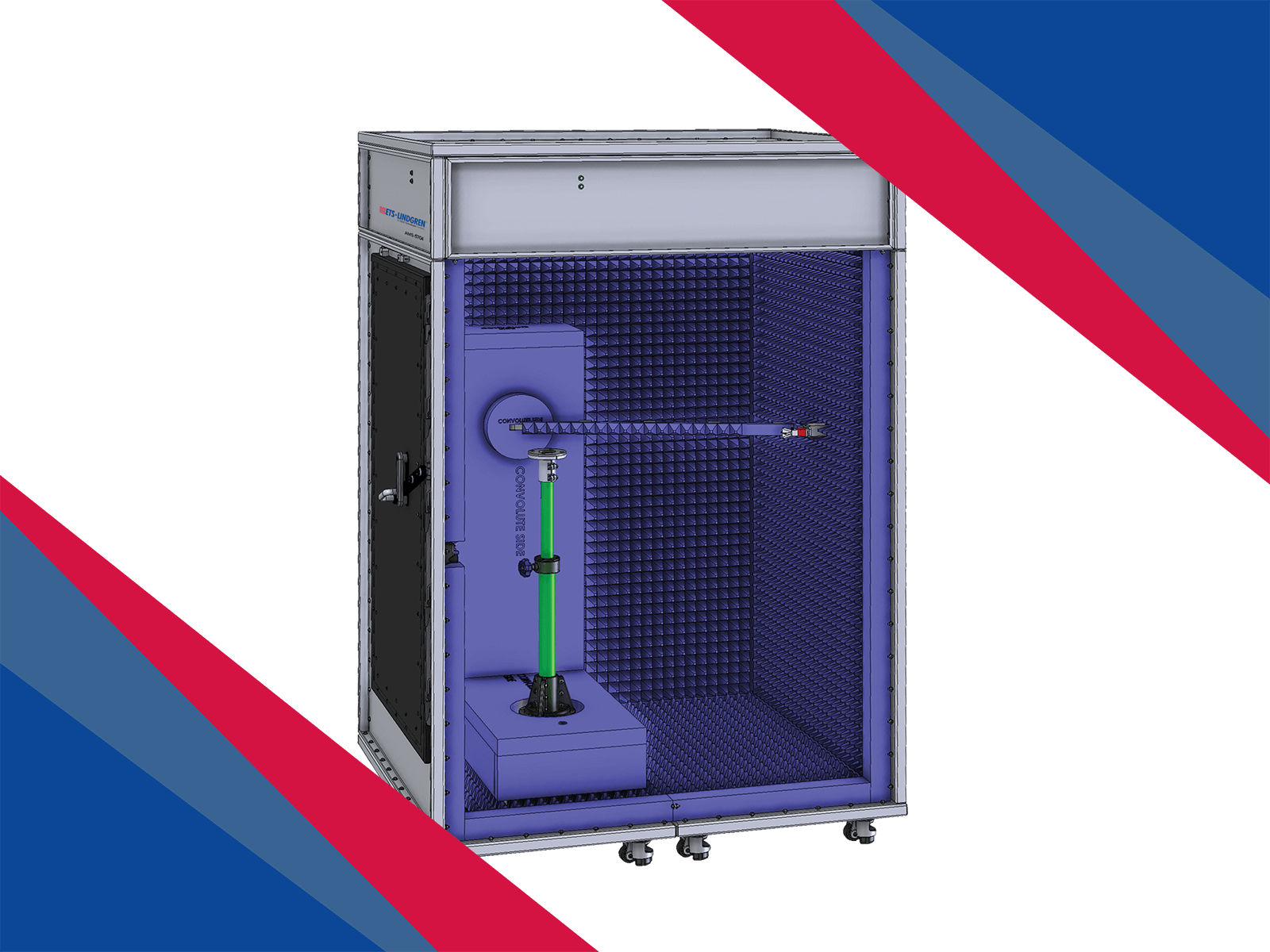

The AMS-5704 WiGig 5G Antenna Measurement System is a compact, mobile far-field test setup designed for 3D antenna performance measurements in the 50–75 GHz frequency range. It uses a distributed axis system with a theta arm and phi-axis turntable to accurately test high-frequency antennas, including array types up to 4.7 cm at 50 GHz and 3.8 cm at 75 GHz. Housed in an RF-shielded anechoic enclosure providing 80 dB isolation, it supports both passive and active testing for antenna performance, conformance, interoperability, and benchmarking. Integrated with ETS‑Lindgren’s EMQuest EMQ-100 software, it offers automated data acquisition, analysis, and compatibility with a wide range of test equipment for WiGig device evaluation.
