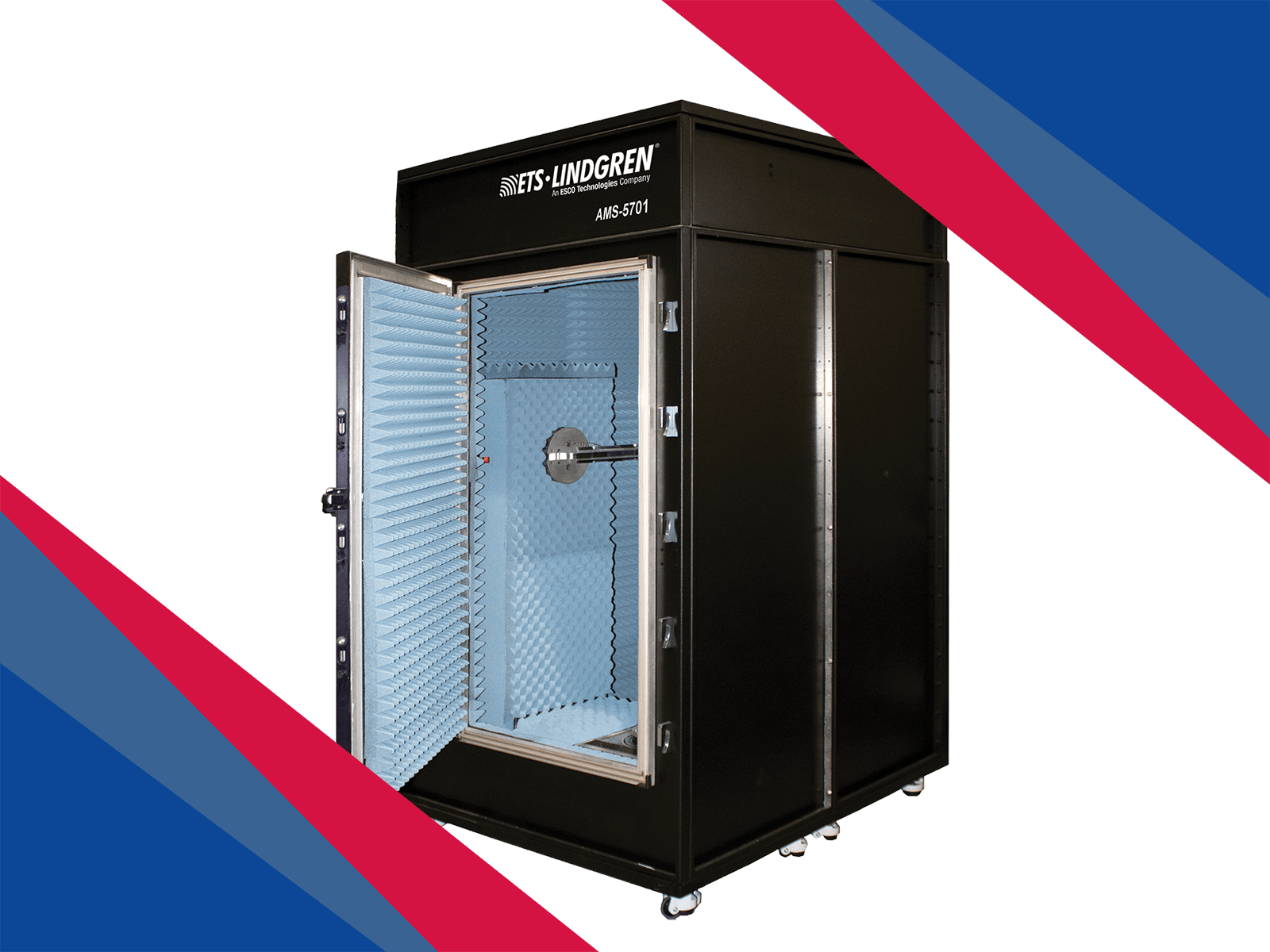

AMS-5701 Theta Arm 5G Antenna Measurement System (3D)
The AMS-5701 5G Antenna Measurement System is a compact, roll-in-place chamber designed for precise passive and active antenna testing across a wide frequency range. Its flexible design minimizes path loss and enables quick, accurate measurements—ideal for universities and R&D labs refining early 5G antenna designs.
Add to FavoritesRemove from Favorites
Add to Favorites
Empowering 3D 5G Innovation with the AMS-5701 Theta Arm

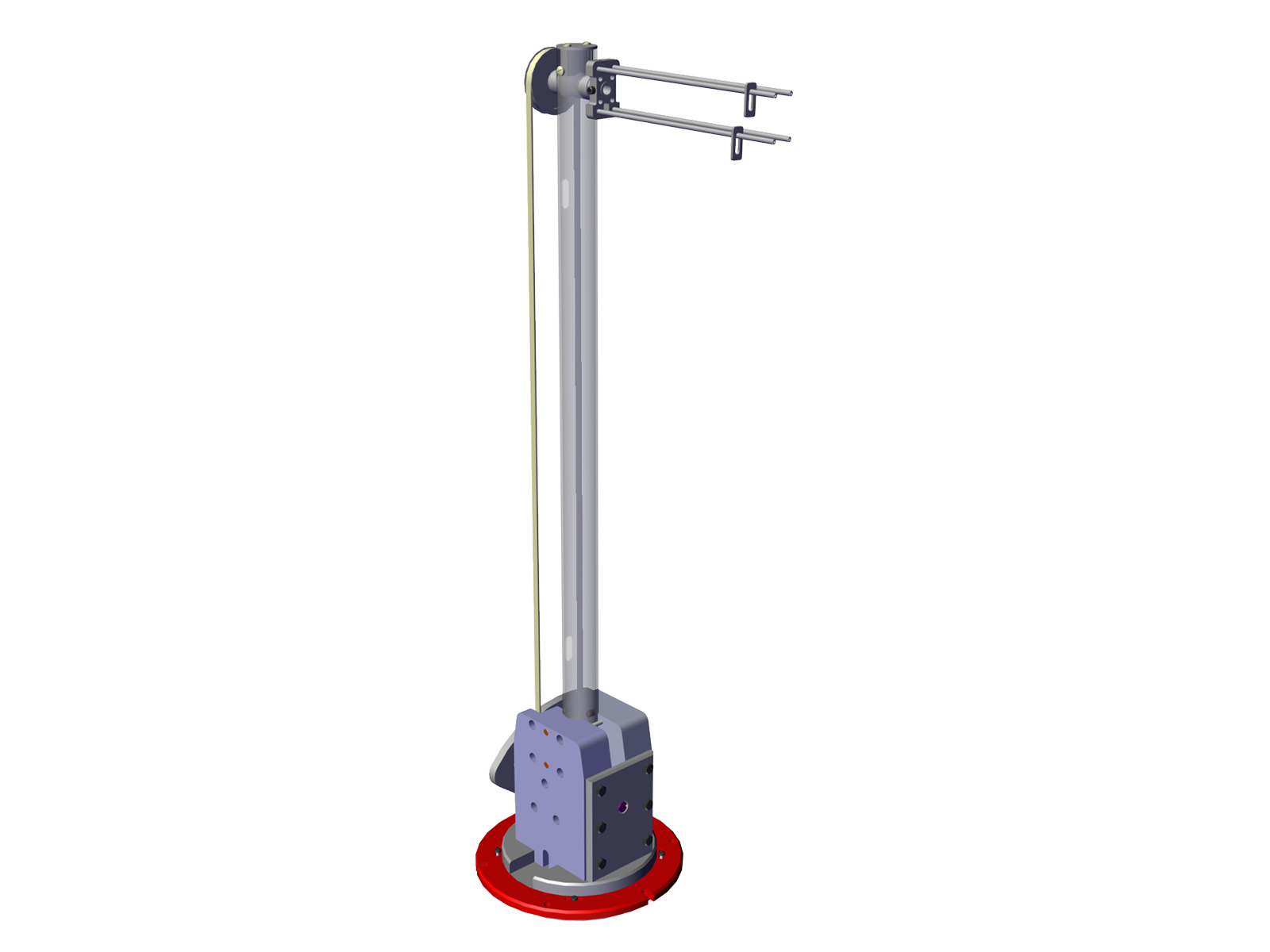

AMS-5701 5G Antenna Measurement System is a distributed-axis spherical-pattern antenna measurement system with a highly flexible application and frequency range. Passive and active antenna pattern tests are supported using an easy-to-fixture azimuth base with high accuracy and repeatability. Path losses are minimized with this design by placing components as close to the measurement antenna as possible. This chamber offers a 82 cm x 144 cm (32 in x 56 in) 160° swing door that allows full access to the internal volume of the chamber. AMS-5701 is a roll-in-place chamber that can move between floors, down hallways, and through standard doorways when the removable ceiling section is unbolted. Antennas of nearly any size and shape can be accommodated on the azimuth base, and cabling can be fixed to the mounting column as the test article requires. The AMS-5701 is well-suited for universities and R&D labs where immediate feedback is needed on early designs or revisions.
