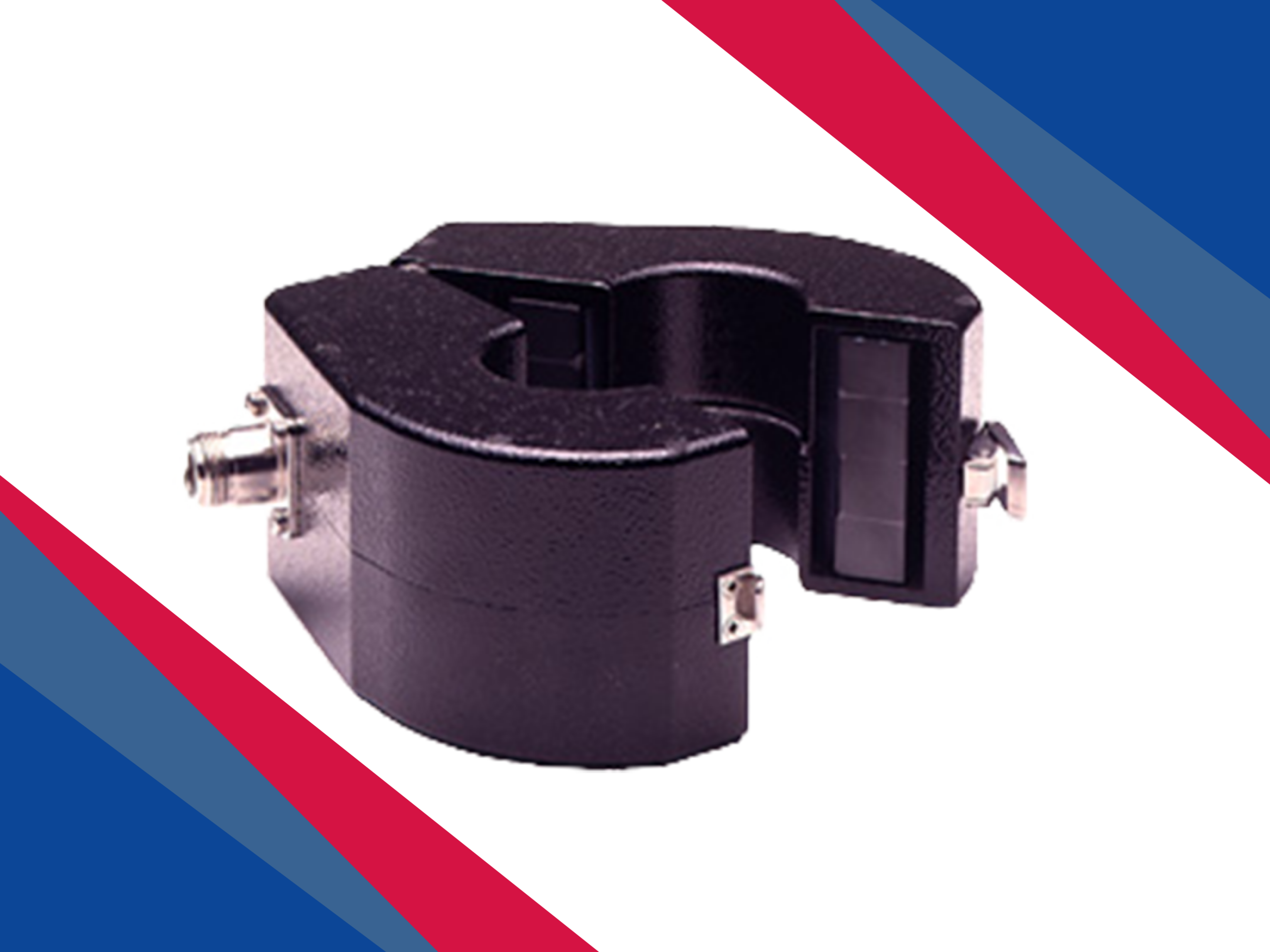

91550-1 Current Probe
Current Probes are a diagnostic tool for cable common mode current sources of radiated emissions and as measurement of cable common mode coupled currents during radiated susceptibility testing. The Model 91550-1 Probe has an extremely broad frequency range, covering 20 Hz to 100 MHz.
Add to FavoritesRemove from Favorites
Add to Favorites
A Diagnostic Probe for Radiated Emissions with a Broad Frequency Range
Current Probes are a diagnostic tool for cable common mode current sources of radiated emissions and as measurement of cable common mode coupled currents during radiated susceptibility testing.
The 91550-1 has 3.18 cm (1.25 in) window, making it suitable for measurements on most power cables (AWG 4/0 cable, good for several hundred Amps, is 12.7 mm (0.5 in) diameter, exclusive of insulation).
Key Advantages:
- For Standards Testing and Pre-Compliance Applications
- Measures RF Current Without Direct Connection
