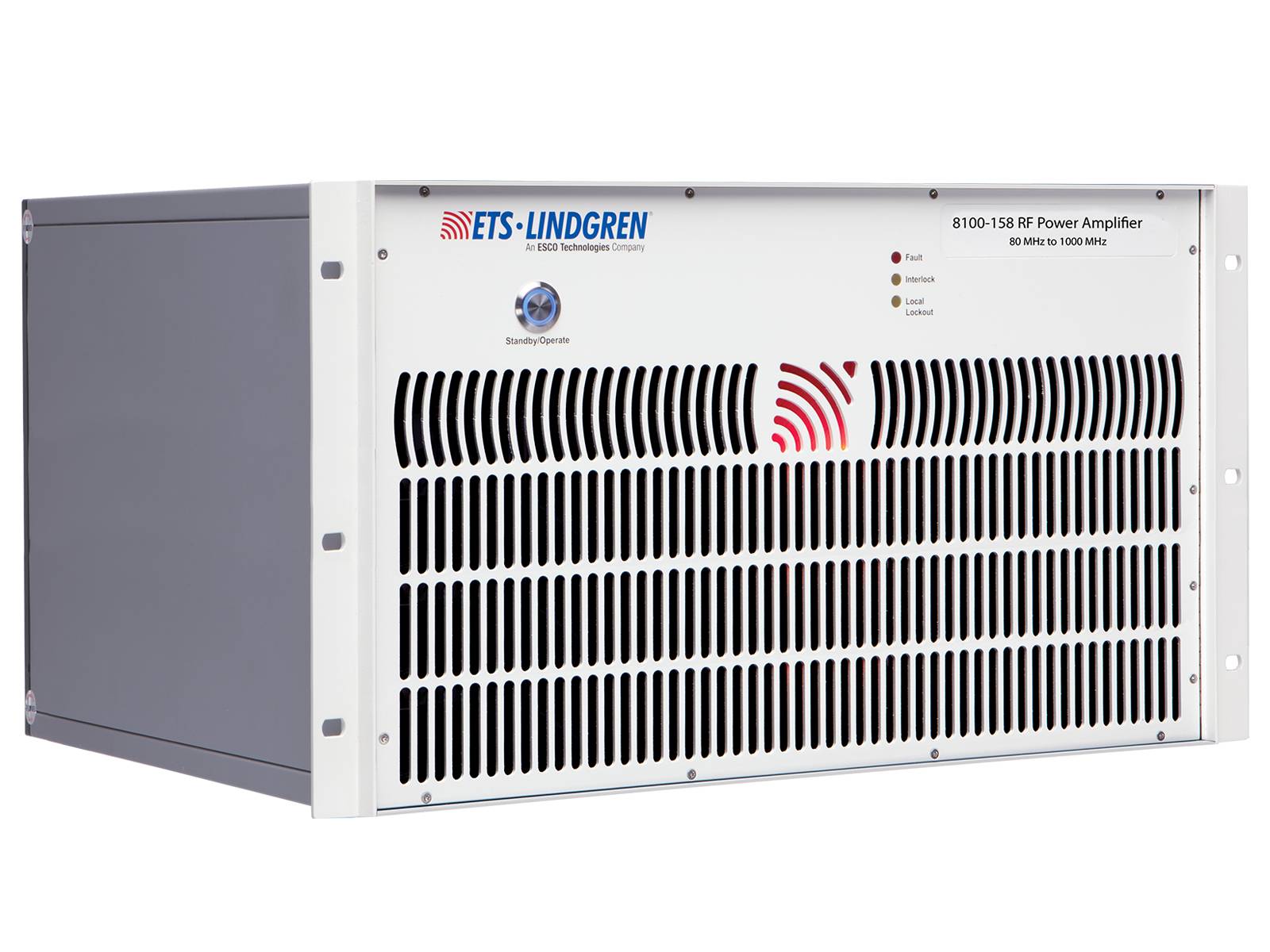

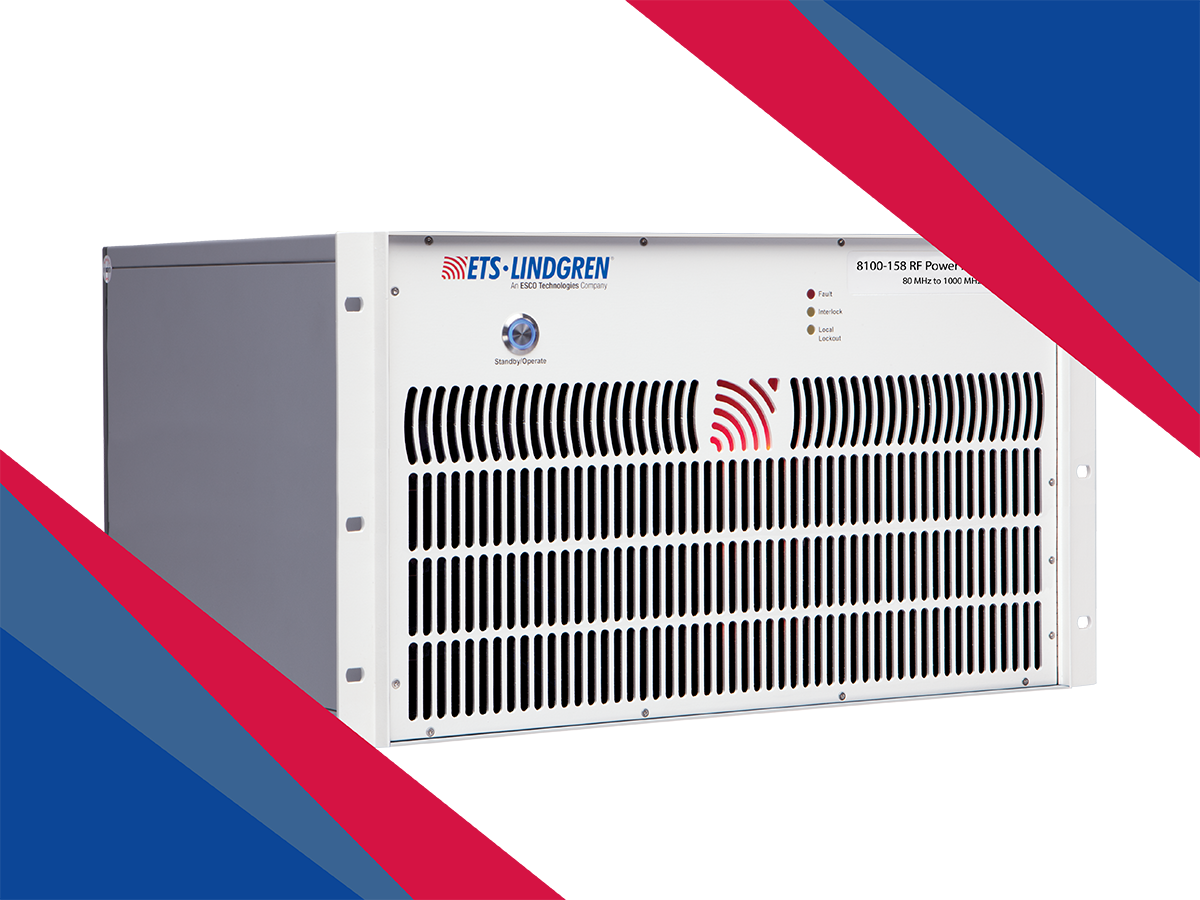

8100-158 RF Power Amplifier

Increases Testing Efficiency for Higher Output

The Model 8100-158 RF Power Amplifier delivers 2000 W of output power across the 80 to 1000 MHz range, making it well-suited for demanding EMC immunity applications, including MIL-STD 461 RS103 testing. Its high-reliability MOSFET Class A design provides excellent linearity, very low distortion, and full tolerance for 100% output mismatch, ensuring stable performance even under challenging load conditions. Operators can control the amplifier locally from the front panel or remotely via Ethernet, USB, and GPIB, enabling seamless integration into automated test systems. Housed in a 24U rack configuration with 1-5/8" EIA output and N-type input connectors, the Model 8100-158 offers the robustness, efficiency, and control flexibility required for modern EMC laboratories.
