8100-132 RF Power Amplifier

Boosts Test Execution for Faster Results

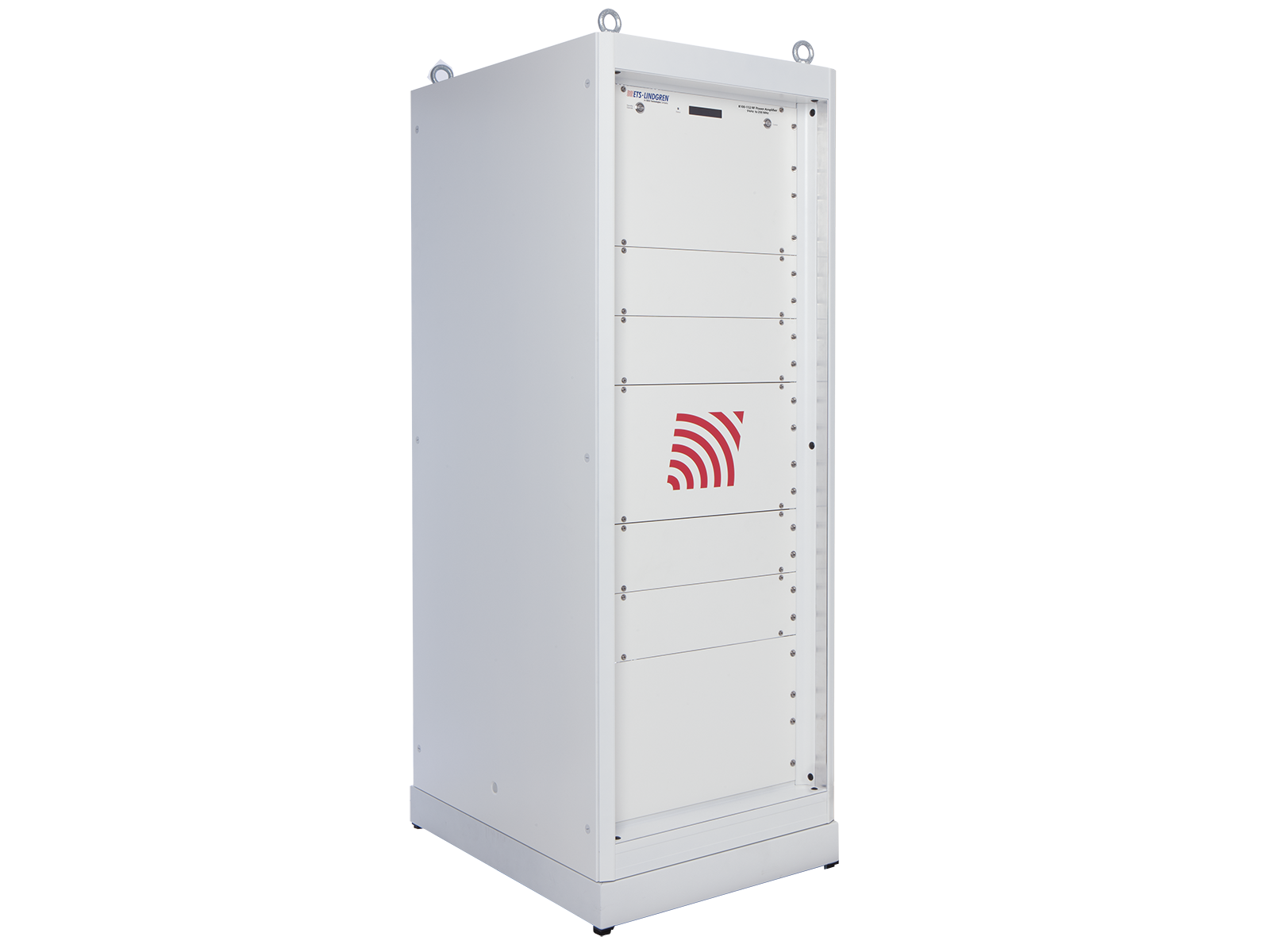

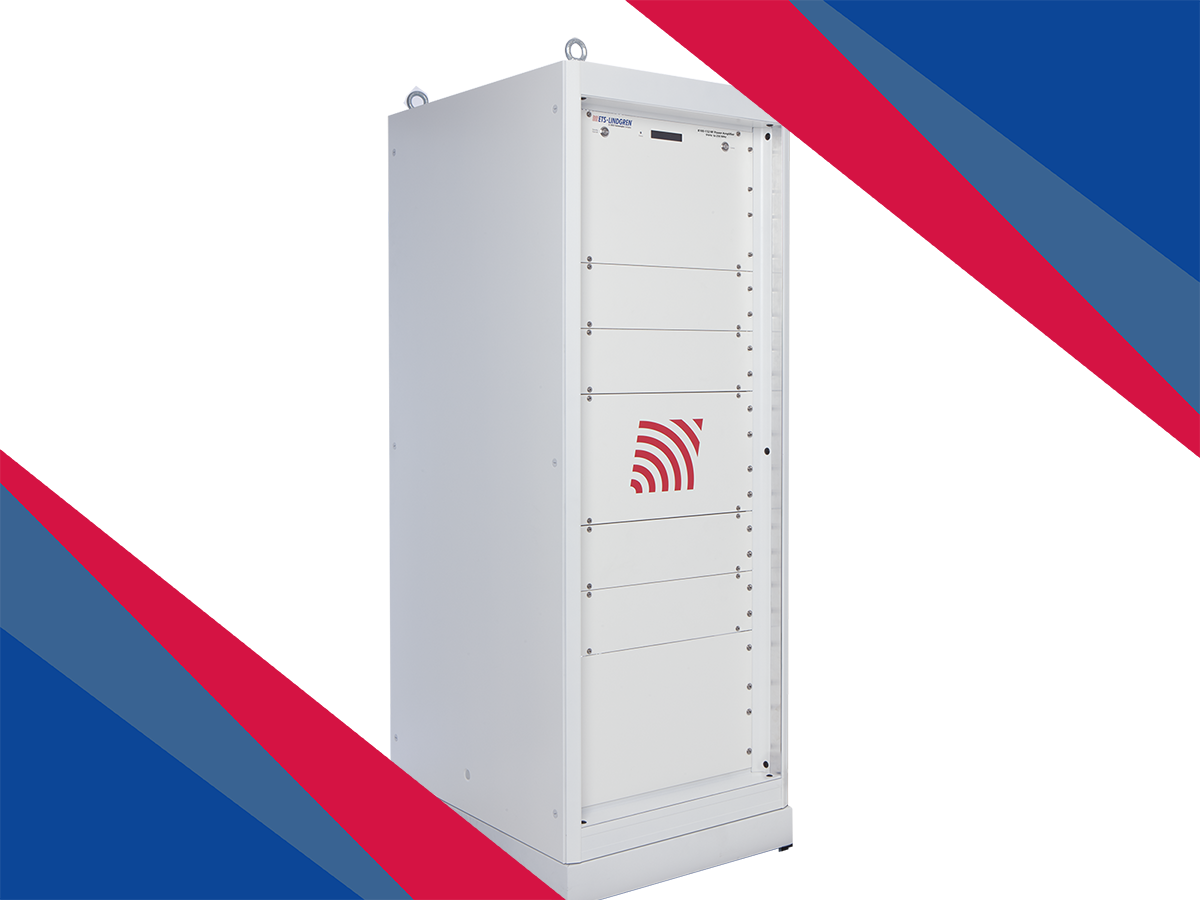

The Model 8100-132 RF Power Amplifier delivers 3000 W of output power from 9 kHz to 200 MHz and 2500 W up to 250 MHz, making it an exceptional solution for high-power EMC applications including MIL-STD 461 RS103 and ISO 11451-2 automotive immunity testing. This solid state design provides superior linearity, efficiency, and durability compared to silicon-based alternatives, ensuring reliable operation in demanding test environments. With full tolerance for 100% output mismatch and very low distortion, the 8100-132 maintains stable and consistent performance even under difficult load conditions. Featuring IEEE-488.2 GPIB remote control alongside Ethernet and USB interfaces, this 24U rack-mounted amplifier integrates seamlessly into automated test systems and high-power compliance laboratories.
