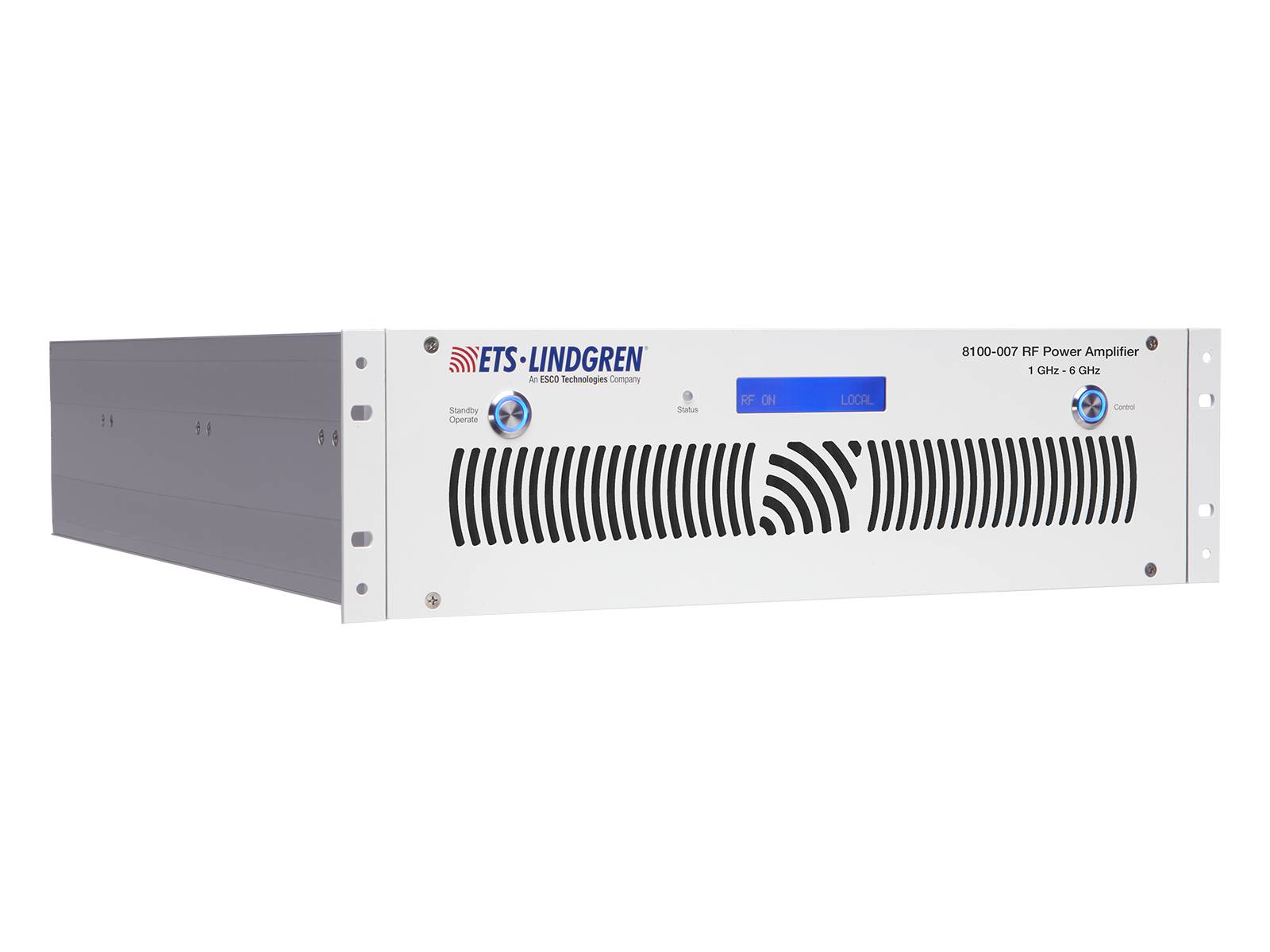

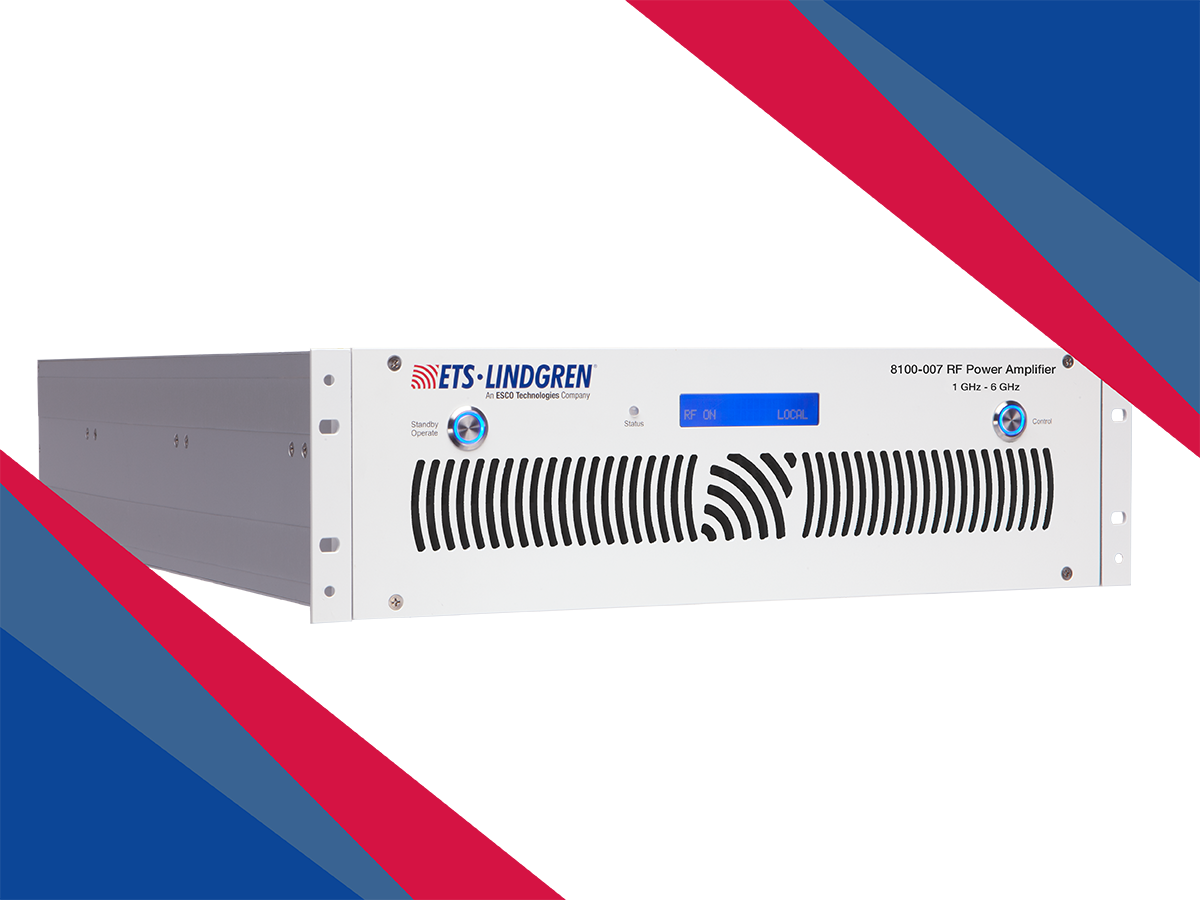

8100-007 RF Power Amplifier

Optimizes Test Throughput for Continuous Productivity

The Model 8100-007 RF Power Amplifier delivers 75 watts of output power from 1 GHz to 2.5 GHz and 50 watts from 2.5 GHz to 6 GHz, making it well suited for EMC applications requiring IEC 61000-4-3 radiated immunity testing up to 10 V/m. Utilizing advanced GaAs technology, it offers superior linearity and efficiency compared to traditional silicon-based amplifiers while maintaining a rugged, high-reliability design for continuous operation. Its wide operating frequency range supports modern high-frequency compliance testing needs across commercial and industrial environments. Very low distortion and 100% output mismatch tolerance ensure stable and accurate performance even under challenging load or antenna conditions. Remote control capability via GPIB, LAN, and USB provides seamless integration into automated test systems. With its 3U rack-mount design and optional bench configuration, the Model 8100-007 offers a dependable and flexible solution for high-frequency EMC laboratories.
