8100-004 RF Power Amplifier

Maximizes Testing Stability for Reliable Results

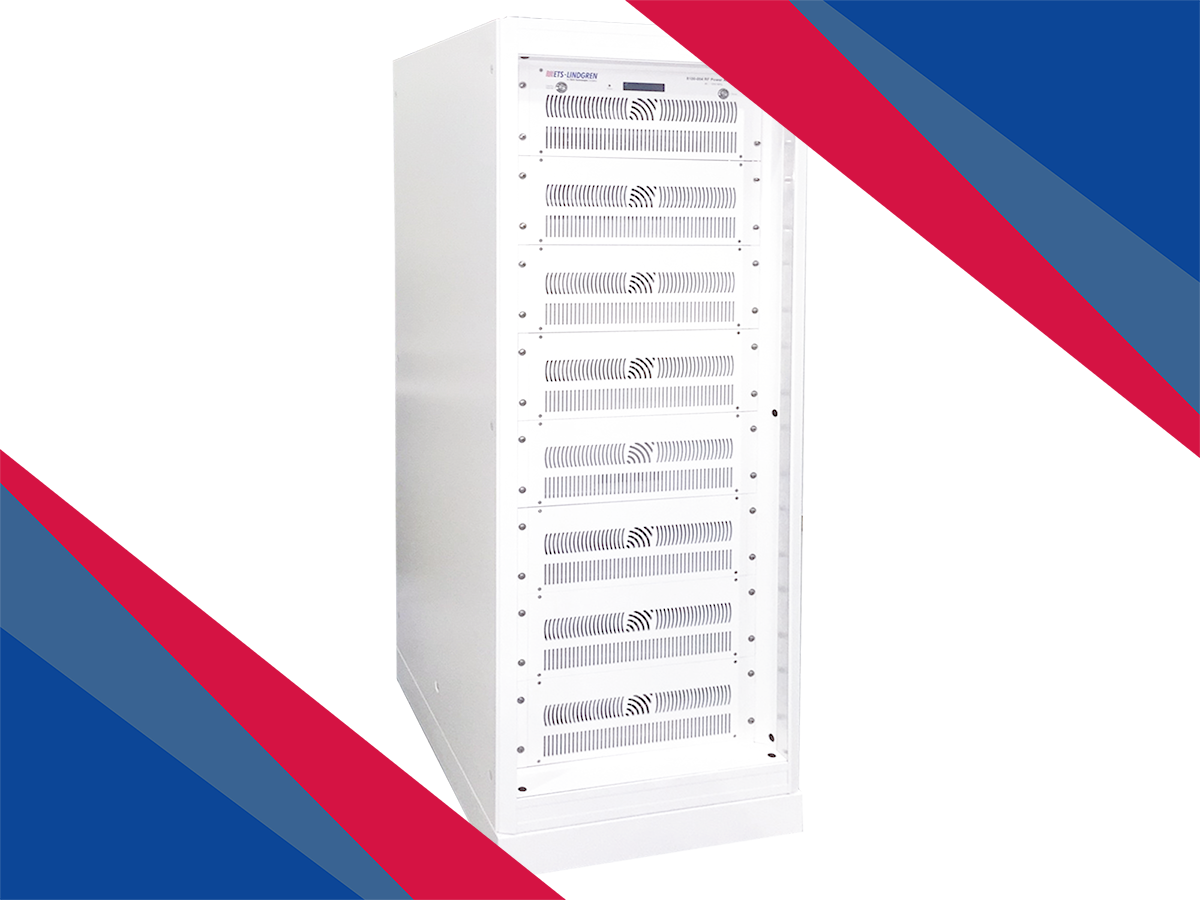

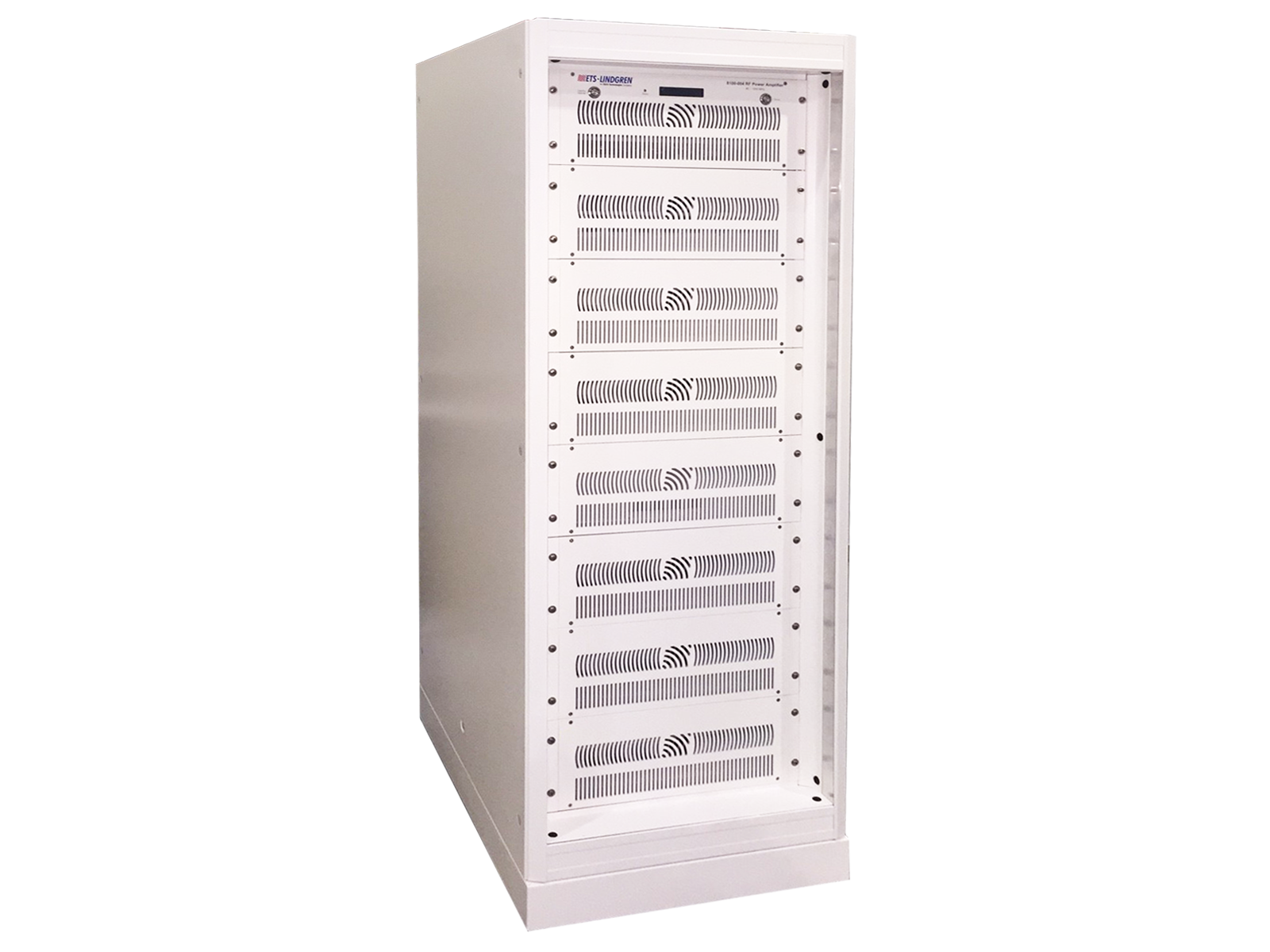

The Model 8100-004 RF Power Amplifier delivers up to 2000 watts of output power from 80 MHz to 280 MHz, 1000 watts from 280 MHz to 480 MHz, and 700 watts up to 1 GHz, making it ideal for demanding EMC applications requiring ISO 11452-2 testing at 200 V/m. Utilizing advanced GaAs technology, it provides superior linearity and efficiency compared to traditional silicon-based amplifiers while maintaining a rugged, high-reliability design suitable for continuous operation. Its wide operating frequency range supports automotive and commercial radiated immunity testing where high field strengths are required. Very low distortion and 100% output mismatch tolerance ensure stable, accurate performance even under challenging load or antenna conditions. Remote control capability via GPIB and LAN allows seamless integration into automated test environments. Housed in a robust 32U rack enclosure, the Model 8100-004 offers a powerful and dependable solution for high-performance EMC laboratories.
