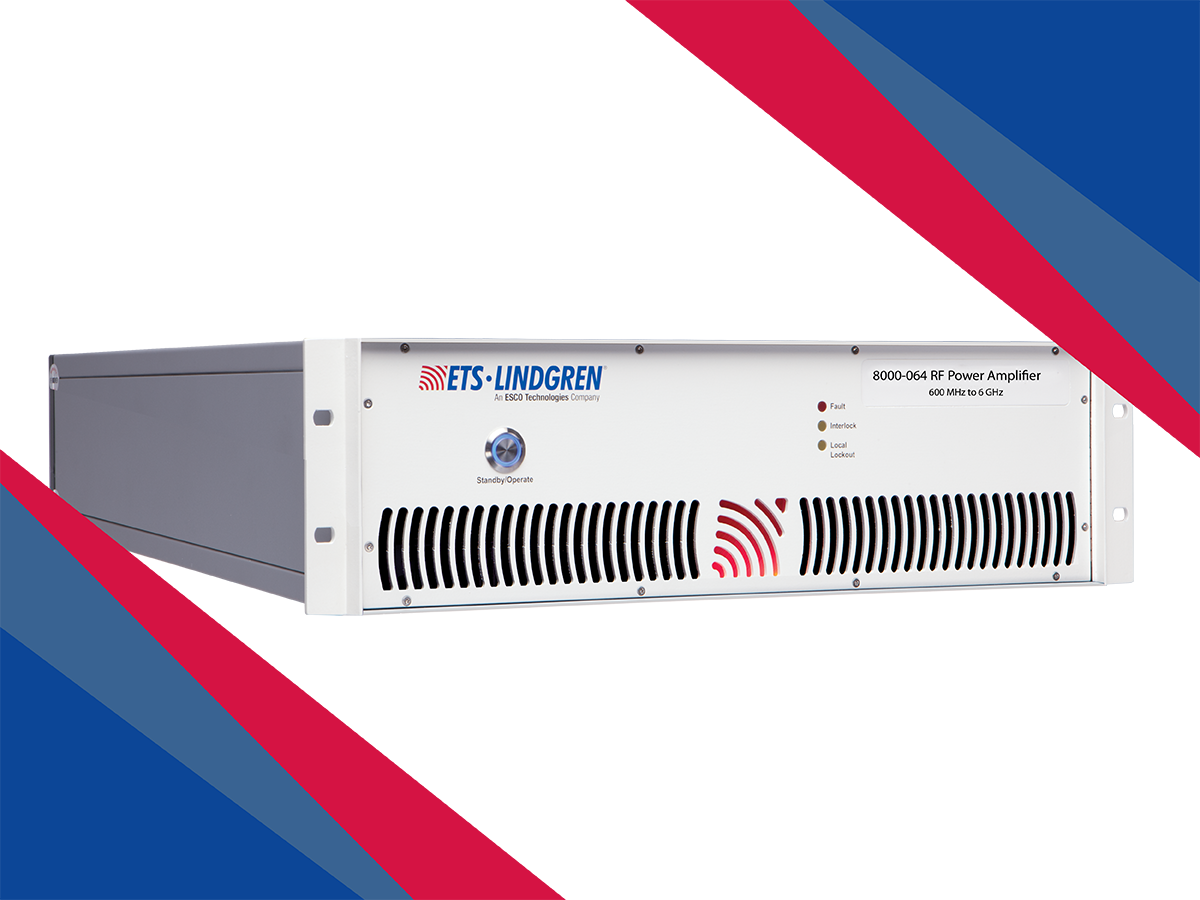

8000-064 RF Power Amplifier

Increases Testing Output for Reduced Delays

The Model 8000-064 RF Power Amplifier delivers 15 watts of output power and is designed for EMC applications requiring IEC/EN 61000-4-3 radiated immunity testing up to 3 V/m. Utilizing advanced GaN technology, it offers superior linearity and efficiency compared to traditional silicon-based amplifiers, while maintaining a rugged, high-reliability design suitable for continuous operation. Its wide operating frequency range from 600 MHz to 6 GHz supports modern high-frequency compliance testing needs in commercial and industrial environments. Very low distortion and 100% output mismatch tolerance ensure stable, accurate performance even under challenging load conditions. With its compact 3U rack-mount configuration and optional bench setup, the Model 8000-064 provides a space-efficient and dependable solution for high-frequency EMC laboratories.
