8000-037 RF Power Amplifier

Accelerates Test Completion for Higher Throughput

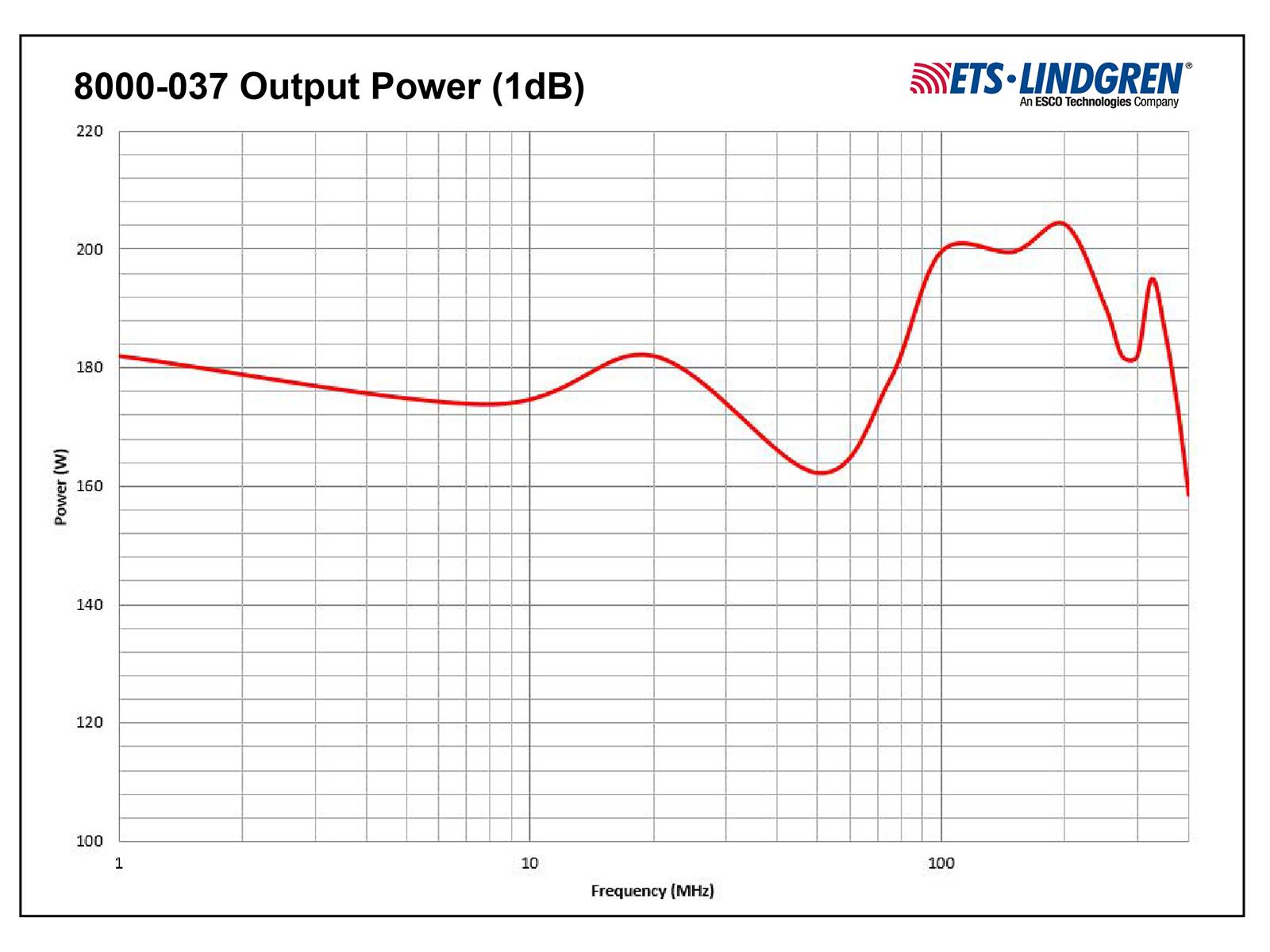

The Model 8000-037 RF Power Amplifier delivers 150 watts of output power and is designed for EMC applications requiring ISO 11452-4 bulk current injection testing up to 200 mA. Utilizing advanced GaAs technology, it provides superior linearity and efficiency compared to traditional silicon-based amplifiers, while offering the rugged reliability needed for continuous operation in demanding environments. Its operating frequency range from 10 kHz to 400 MHz supports a wide variety of automotive and commercial compliance testing needs. Very low distortion and 100% output mismatch tolerance ensure stable, accurate performance even under challenging load conditions. Remote interface capability via GPIB enables seamless integration into automated test systems, enhancing laboratory efficiency. With its compact 4U rack-mount design and optional bench configuration, the Model 8000-037 offers a dependable and versatile solution for modern EMC test facilities.
