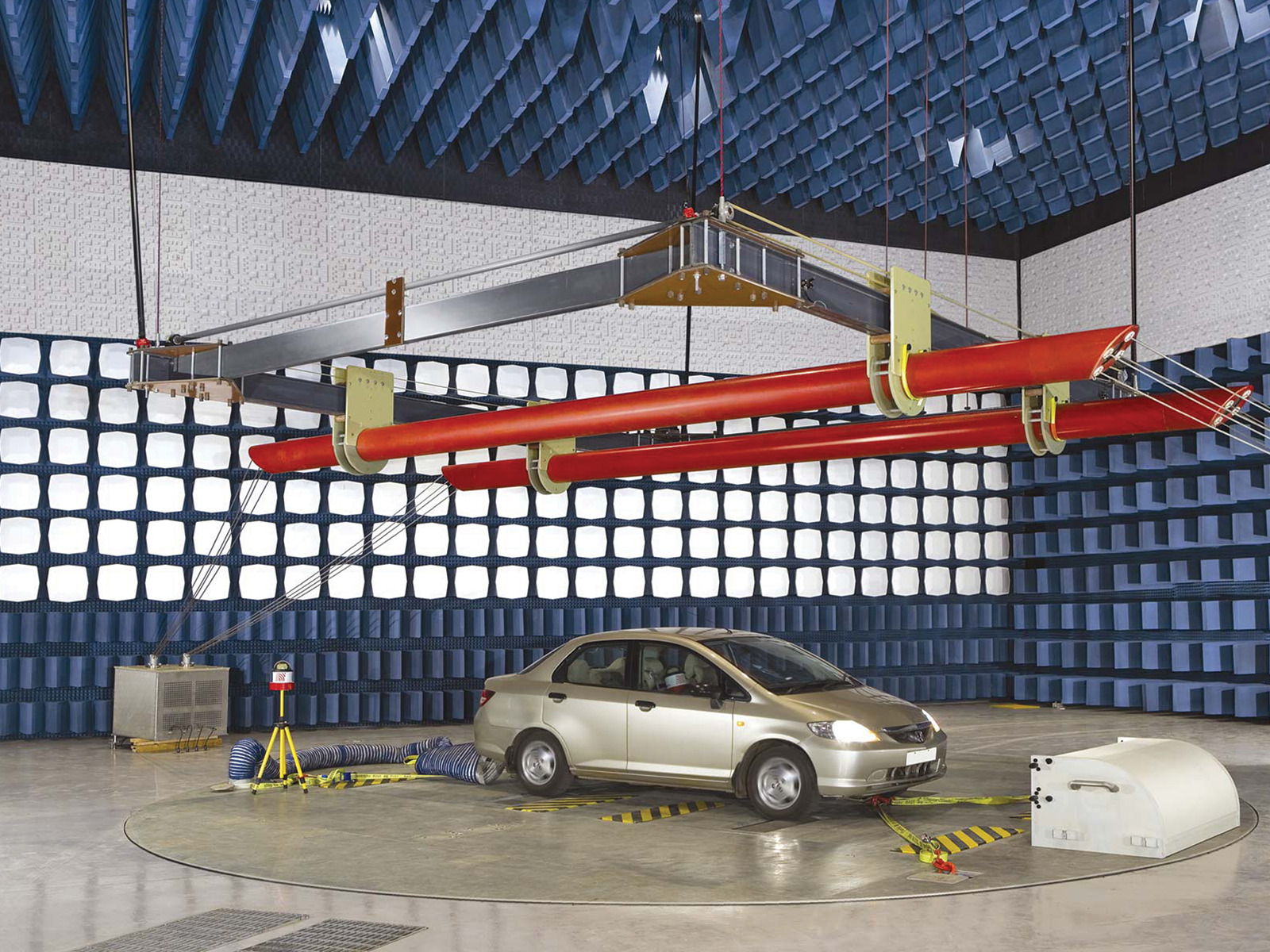

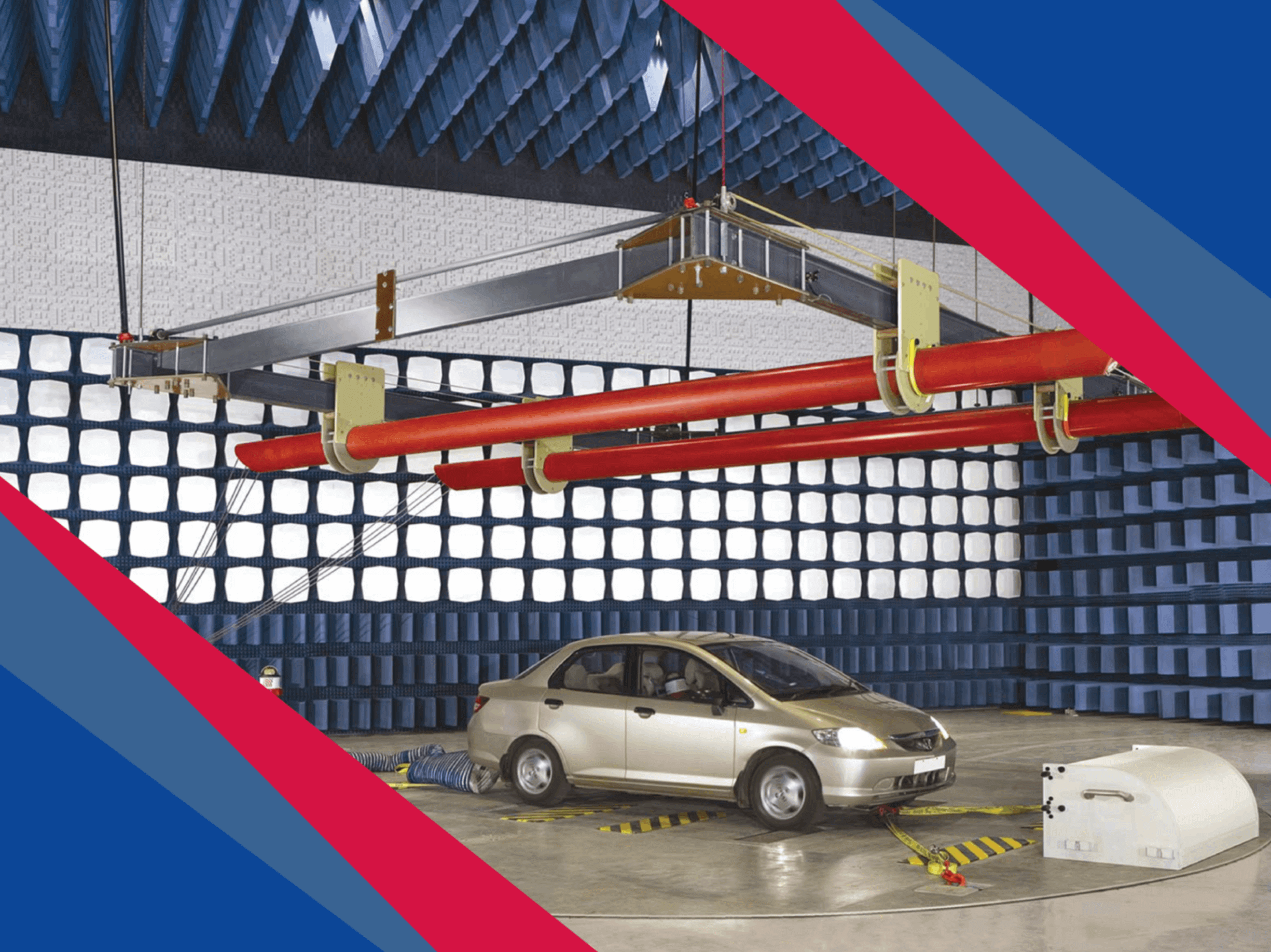

5502 Horizontal/Vertical (H/V) Electric Field Generator
The Model 5502 Horizontal/Vertical (H/V) Electric Field Generator is a two conductor transmission line system that generates a Transverse Electromagnetic wave (TEM) at low frequencies. The Model 5502 is also known as an E/H field generator for its ability to excite a vertical electric or magnetic field over the conductive ground of the chamber or outdoor site. Our E-Field Generators are highly customizable to handle different maximum continuous RF power levels and accomidate many different test devices.
A Fully Remote Controlled Two-Conductor Transmission Line System
The Model 5502 Horizontal/Vertical (H/V) Electric Field Generator is a two conductor transmission line system that generates a Transverse Electromagnetic wave (TEM) at low frequencies. The Model 5502 is also known as an E/H field generator for its ability to excite a vertical electric or magnetic field over the conductive ground of the chamber or outdoor site. Our E-Field Generators are highly customizable to handle different maximum continuous RF power levels and accomidate many different test devices.
The Model 5502 also has remote controllable height adjustments and in-ceiling storage, as well as two modes of operation.
- Generates Vertical or Horizontal Electric Field
- Generates Fields Up to 200 v/m in the 10 kHz to 30 MHz Frequency Range
- Fully Adjustable Height and Separation of Main Conductors
- Large Immunity Volume
- Fully Supported by the Structure of the Semi-Anechoic Chamber
- Fully Remote Controllable
