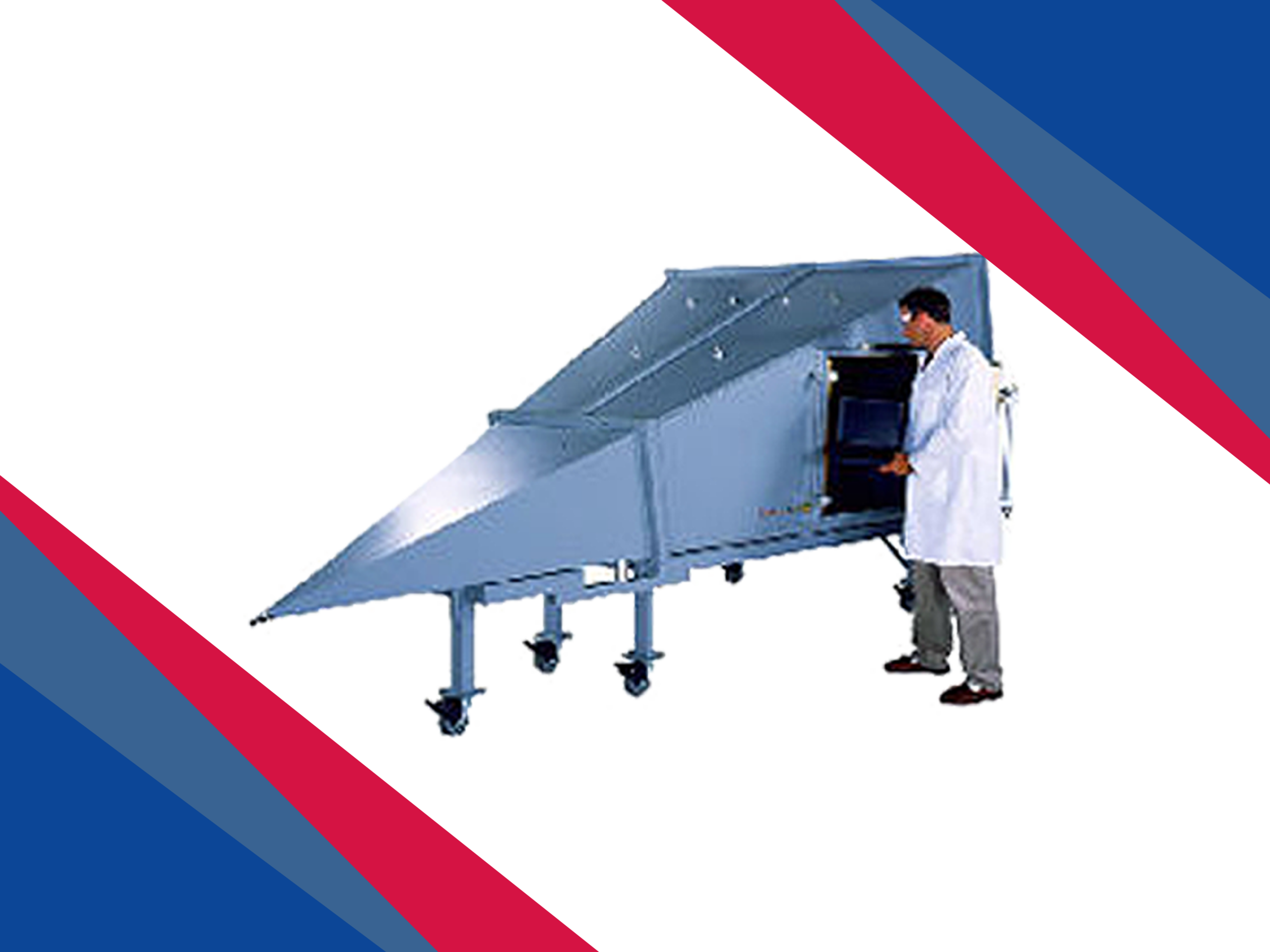

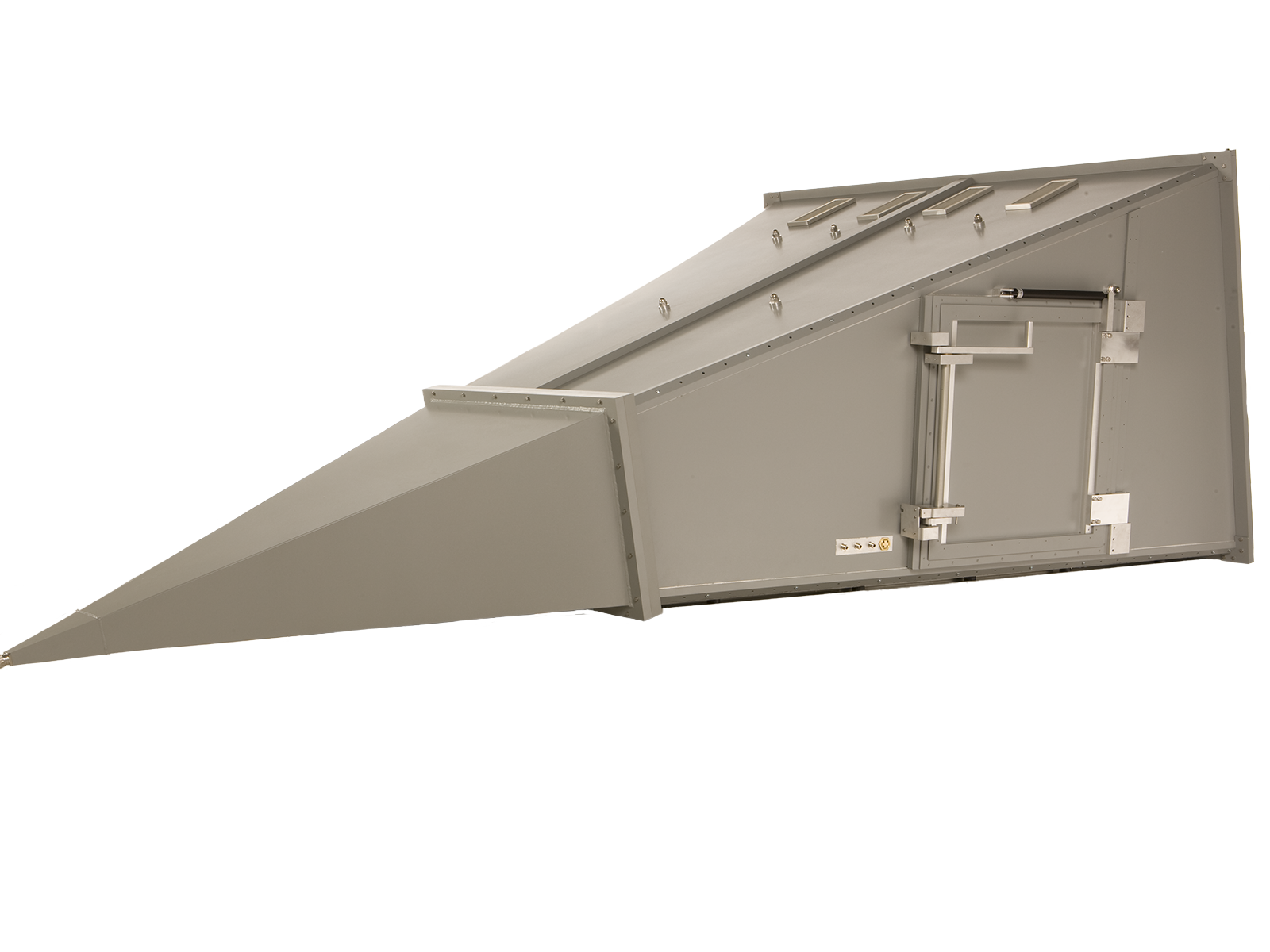

5407 GTEM! Test Cell
The Model 5407 GTEM! Test Cell saves time for labs conducting radiated emissions and radiated immunity tests.
An Efficient Time Saver for Radiated Emissions and Radiated Immunity Testing in Test Labs
Model 5407 GTEM! Test Cells enables users to perform radiated emissions and radiated immunity tests in less time than on either an OATS or in an anechoic chamber. Tests can be performed quickly and accurately throughout the product life cycle. Beginning with design qualification testing, and moving through to pre-compliance testing, full-compliance testing and production sampling, the model 5407 is a time saving device for your test lab. The compact GTEM 5405 is especially suited to measuring small self contained or battery powered devices that all fit within the test volume. A typical radiated emissions test (10,000 point scan) can be completed in 15 minutes or less, while a typical radiated immunity test can usually be completed in half the normal time.
The GTEM lends itself best to the measurement of devices that are self-contained with minimal cables that fit within a test volume that is 1/3 the height of the septum and 2/3 the width.
For All Phases of EMC Testing:
- Emissions, Immunity, and Shielding Effectiveness
- Design Qualification
- Pre-Compliance
- Full Compliance IEC 61000-4-20 ANSI 63.4
