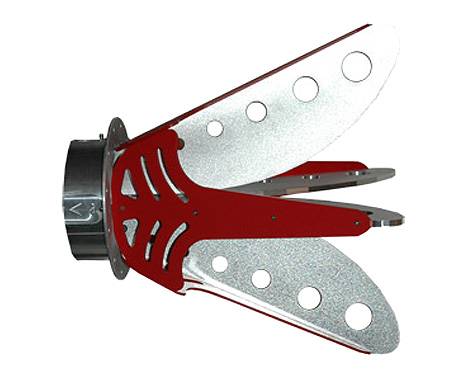

3164-05 Open Boundary Quad-Ridged Horn
Model 3164-05 Open Boundary Quad-ridged Horn has an open boundary design, making this antenna unique in appearance and performance.
Add to FavoritesRemove from Favorites
Add to Favorites
A Surprisingly Compact Open Horn Antenna
Model 3164-05 Open Boundary Quad-ridged Horn has an open boundary design, making this antenna unique in appearance and performance. The antenna's surprisingly compact size offers improved pattern and gain when compared with enclosed quad-ridged horns of similar dimensions.
Two orthogonally placed input feeds allow this antenna to generate both linear and circular polarized measurements across the entire frequency band.
Key Advantages:
- Frequency Range: 2 GHz to 18 GHz
- Linear or Circular Polarization (With Hybrid)
- Low Side Lobes Compact Design
- Flat Gain for Upper 2/3 of Range
- Flexible Mounting Schemes
- Flange for Wall Mounting
- Bracket for Tripod Mounting
