3143B BiConiLog™ Antenna
The Model 3143B BiConiLog simplifies EMC testing by replacing multiple antennas with one compact, calibrated solution for emissions and immunity measurements.
Add to FavoritesRemove from Favorites
Add to Favorites
Innovation, Efficiency, and Excellent Performance

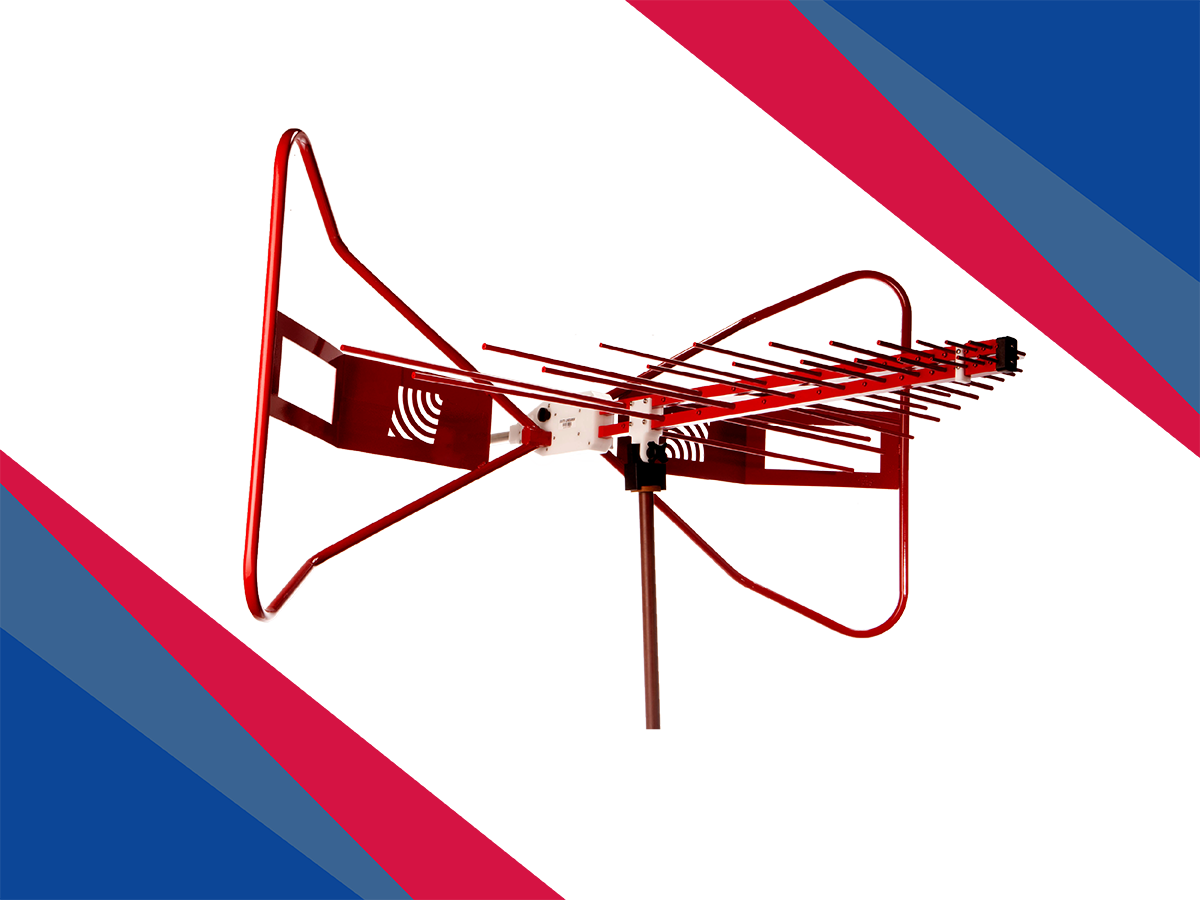

The Model 3143B BiConiLog is a hybrid antenna that combines innovative design, compact size, and excellent performance. This antenna enables users to measure a frequency range of 30 MHz to 1 GHz in one sweep, negating the need for multiple antennas and time-consuming equipment setup. Accuracy and repeatability are improved, while time and money are saved. This BiConiLog is designed as a dual-purpose antenna that can be used for both immunity and emission testing.

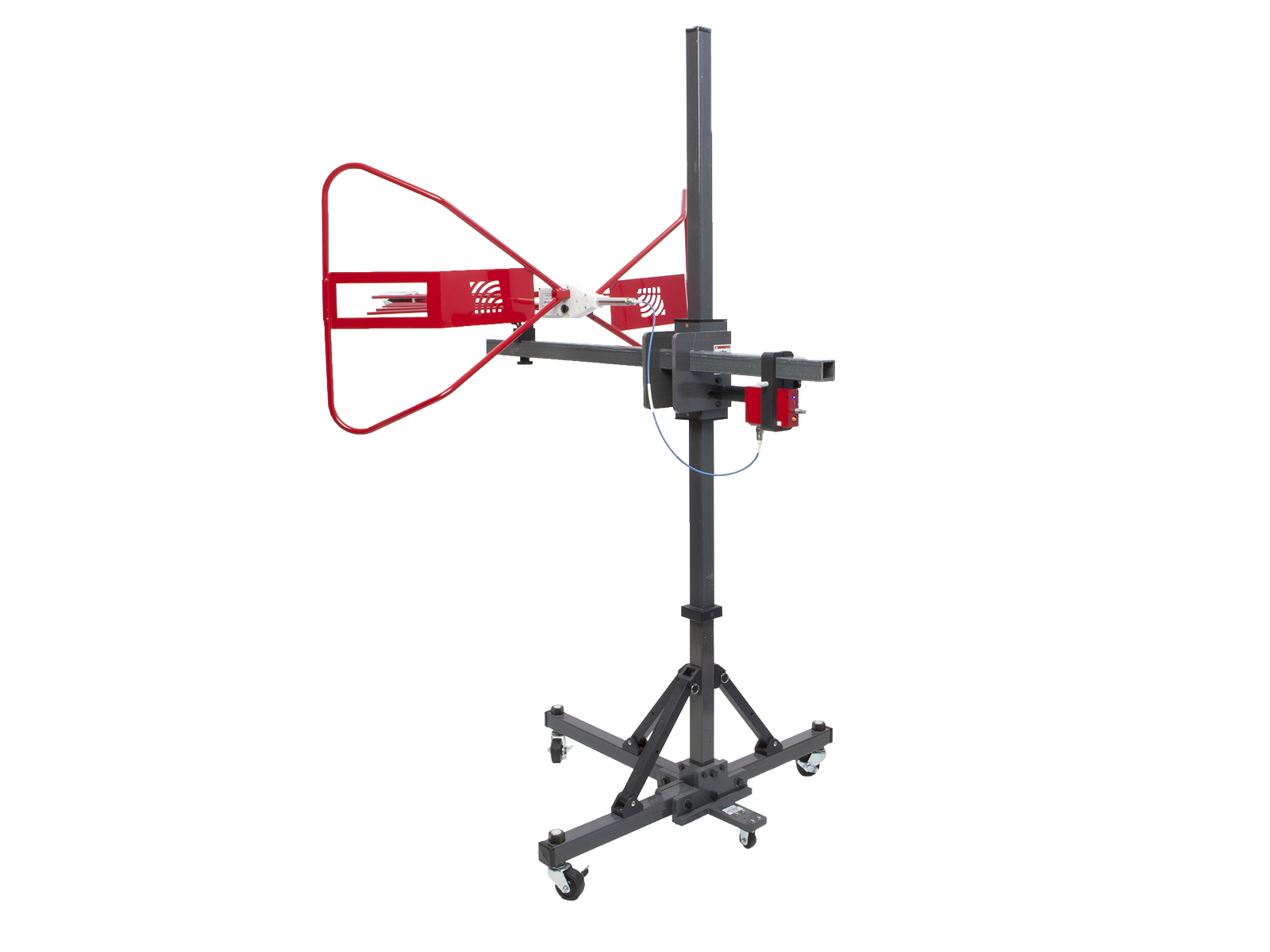

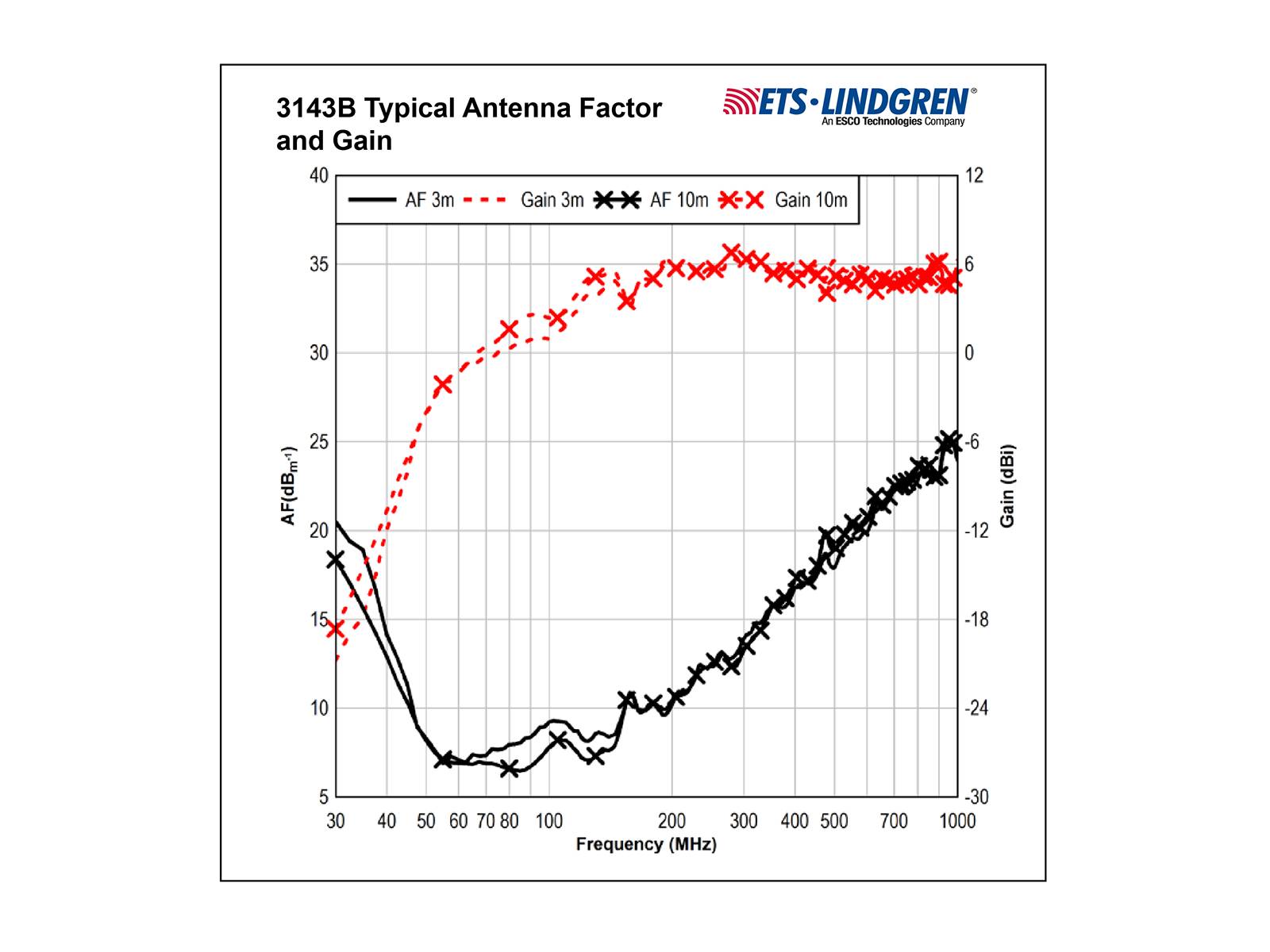

This model includes a stinger mount as standard equipment. Individual antenna calibration data is provided for emission testing.
Key Advantages:
- Frequency Range: 30 MHz to 1 GHz

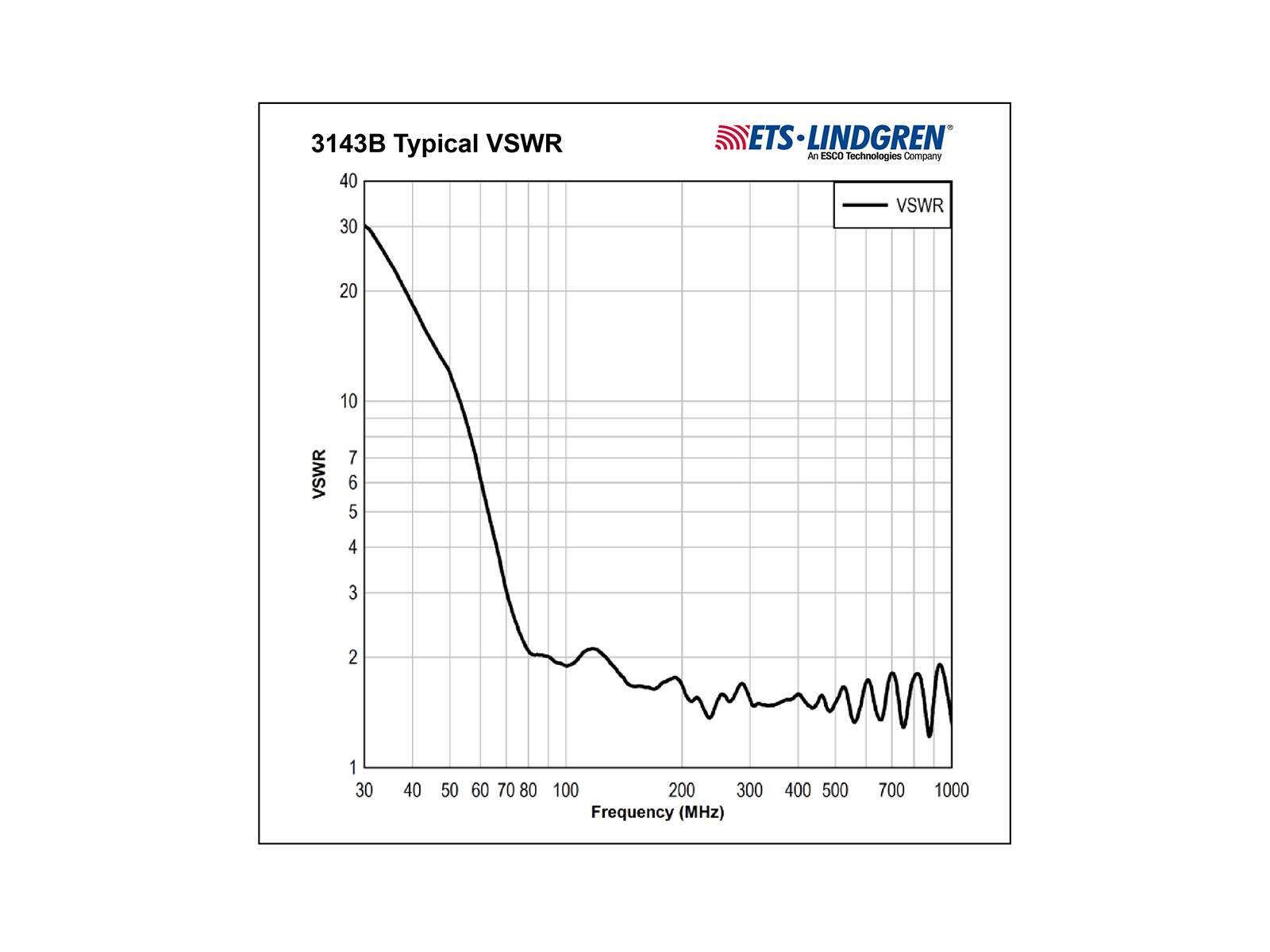

- 3:1 VSWR Above 70 MHz for Emissions and Immunity Testing
- Flexible Mounting
- Individually Calibrated
Case Study : Category : EMC Testing
New EMC Test System for TÜV Rheinland in Vietnam TÜV Rheinland in Vietnam was eager to expand their test capabilities to include an environment that supported full certification testing per ANSI C63.4,…
