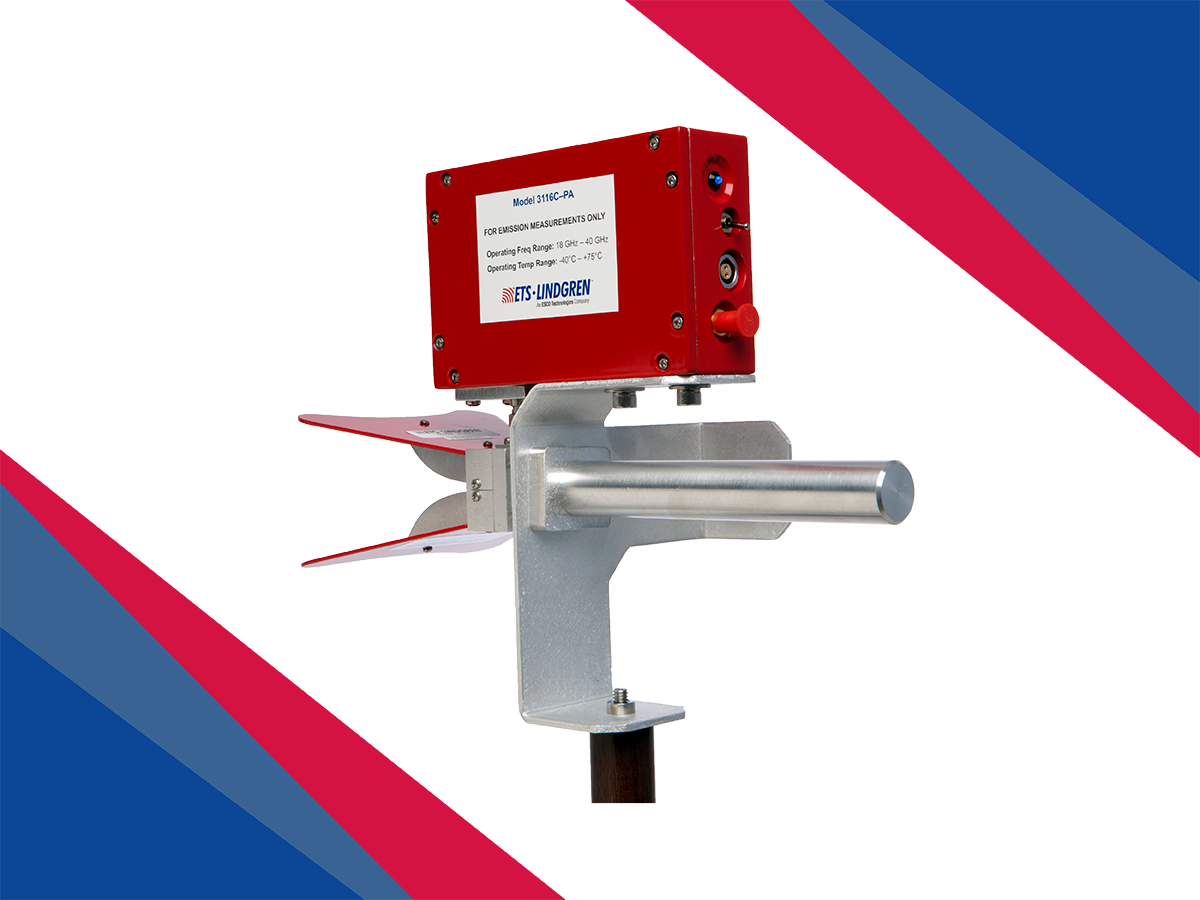

3116C-PA Double-Ridged Waveguide Horn with Pre-Amplifier
The Model 3116C-PA is a specially calibrated version of the Model 3116C Double-Ridged Waveguide Horn Antenna with an integrated pre-amplifier, designed to account for antenna-pre-amplifier mismatches, but not intended for RSE testing of intentional radiators.
Add to FavoritesRemove from Favorites
Add to Favorites
Amplified Accuracy in Every Measurement
The Model 3116C-PA is a specialized version of the Model 3116C Double-Ridged Waveguide Horn Antenna, equipped with a pre-amplifier package and calibrated as a single unit. This calibration accounts for any mismatches between the antenna and pre-amplifier, which is reflected in the provided antenna factor (AF). Please note that the 3116C-PA is not intended for radiated spurious emission (RSE) testing of intentional radiators.
Key Features:
- Frequency Range: 18 GHz to 40 GHz
- Maintains Single Lobe Radiation, Allowing Accurate Measurement of Gains and Emissions
- Fitted with a Pre-Amplifier for Increased Sensitivity
- Extremely Low Antenna Factor: Less than 15 dB (1/m) for entire frequency range
- Flexible Mounting
