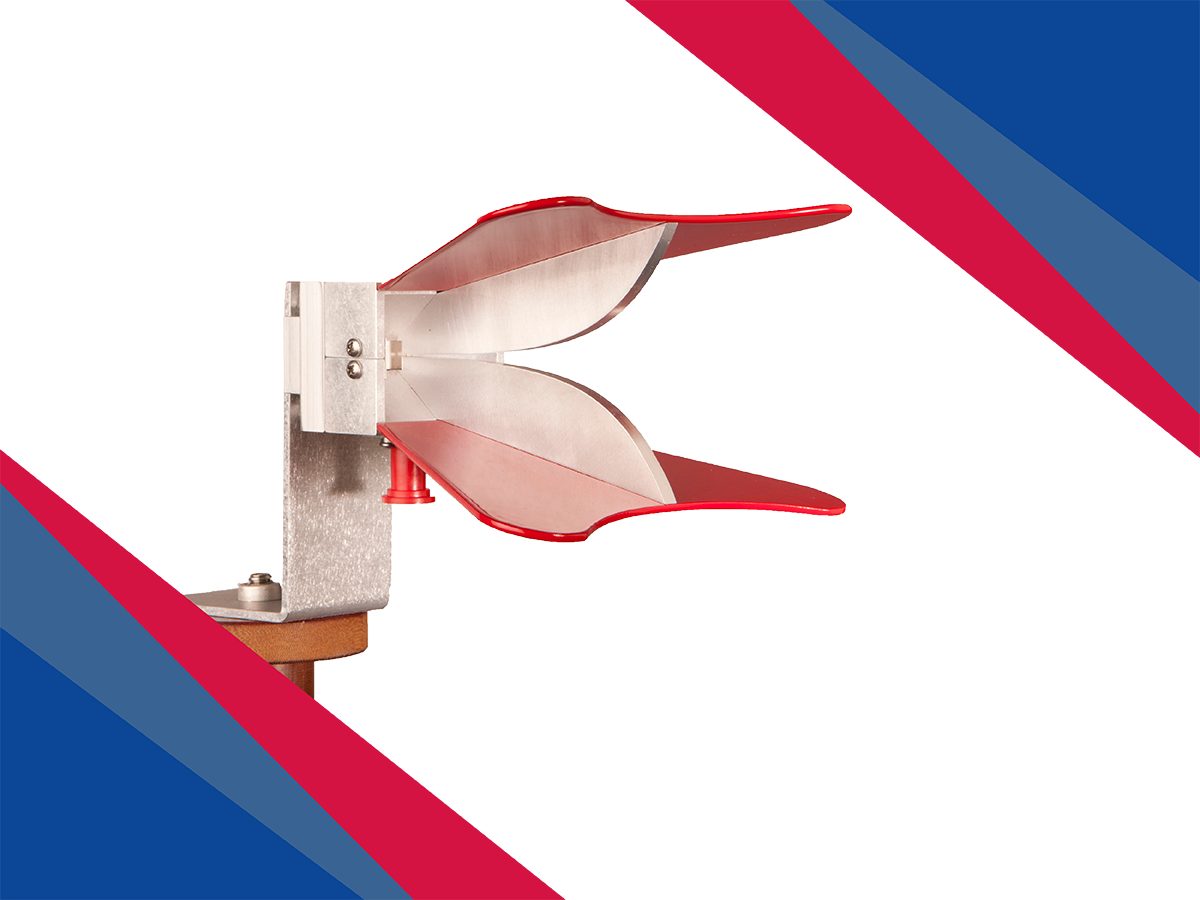

3116C Double-Ridged Waveguide Horn
The 3116C Double-Ridged Waveguide Horn Antenna corrects the lower gain at the upper end of the frequency range that is commonly found in ridged waveguide antennas.
Add to FavoritesRemove from Favorites
Add to Favorites
Amplified Accuracy in Every Measurement
The 3116C Double-Ridged Waveguide Horn Antenna corrects the lower gain at the upper end of the frequency range that is commonly found in ridged waveguide antennas. It was designed and modeled using powerful workstations running electromagnetic simulation software as experienced RF engineers and the manufacturing team produced the practical and affordable antenna. All production units are individually calibrated at our A2LA accredited lab.
Key Benefits:
- Frequency Range: 10 GHz to 40 GHz
- Power Handling Capability: 20 W

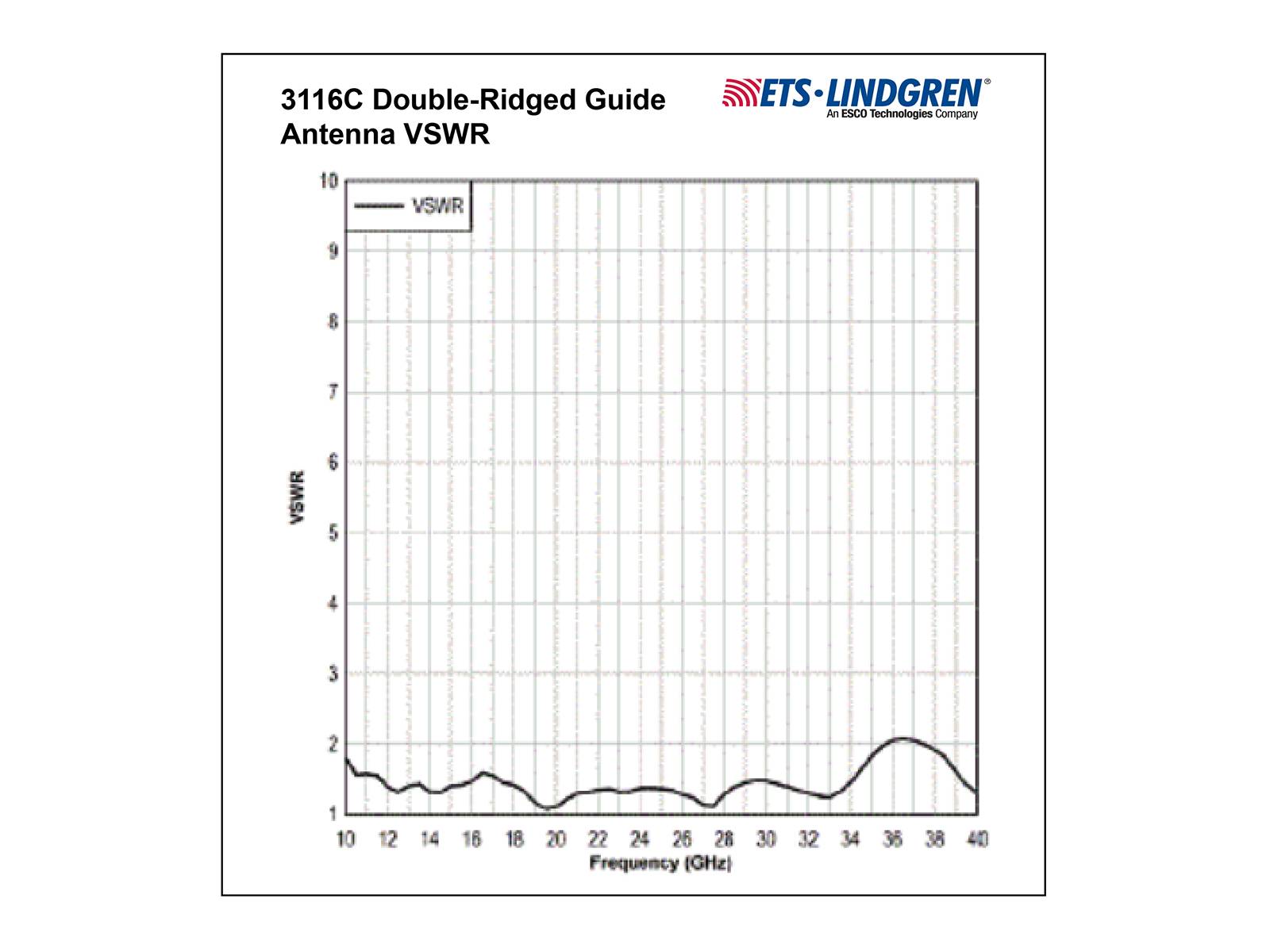

- Low VSWR

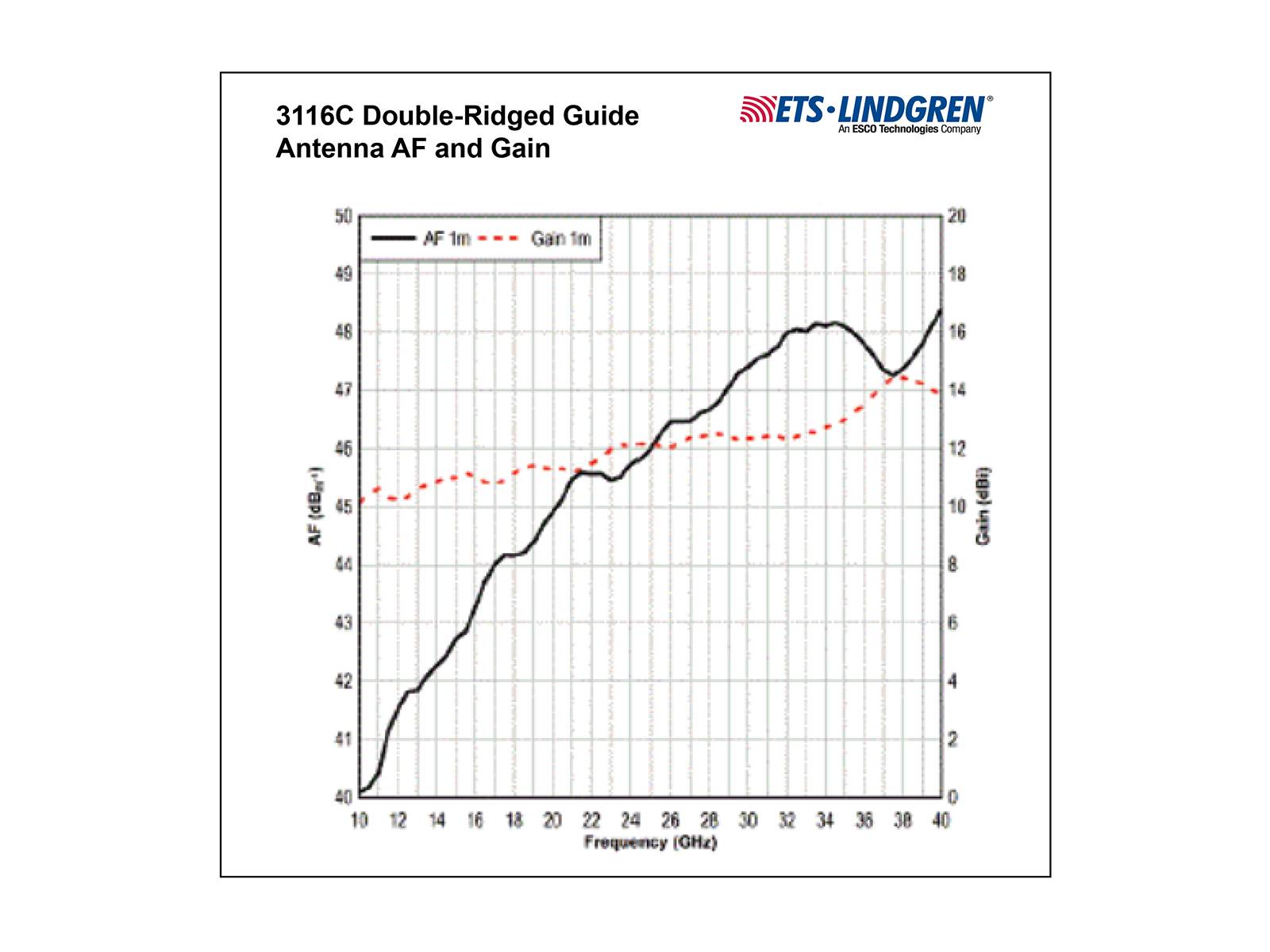

- Uniform Gain
- Individually Calibrated
Case Study : Category : EMC Testing
Silicon Labs, a global leader in silicon, software, and solutions for a smarter, more connected world, sought to enhance its in-house radiated performance measurement capabilities. With a growing demand for more comprehensive…
