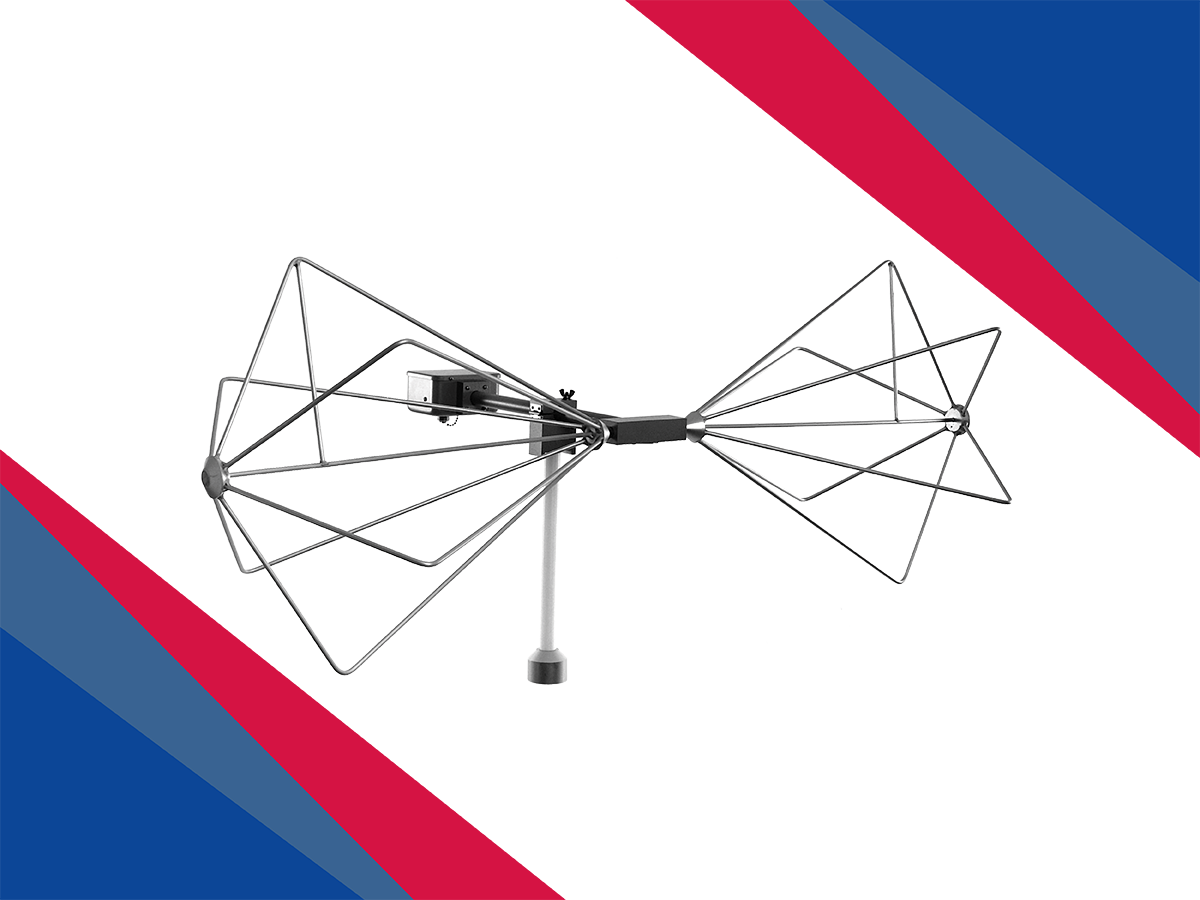

3104D Biconical Antenna

The Model 3104D Biconical Antenna provides reliable radiated immunity performance in a compact design, with optional extended elements to efficiently generate high fields at low frequencies.

Add to FavoritesRemove from Favorites

Industries: Academia, Aerospace & Defense, Automotive, Commercial

Solutions: EMC

Share:

Key details
Resources

Compact Biconical Antenna with Unique Elemental Designs to Suit Any User's Needs

The Model 3104D Biconical Antenna is a traditional coaxial wound balun that can be used for radiating immunity measurements. Optional extended elements can be added to the 3104D to make it twice as long and enable users to generate high fields at low frequencies with less than 25% of the power usually required.

Key Advantages:

Frequency Range: 20 MHz to 200 MHz
Compact Size for Use in Limited Space
Quality Construction for Trouble-Free Service
Unique Elemental Design Improves Performance
Peak Power Handling Capability Up to 100 W
