2304 PRECISION MULTI-AXIS POSITIONER (MAPS)

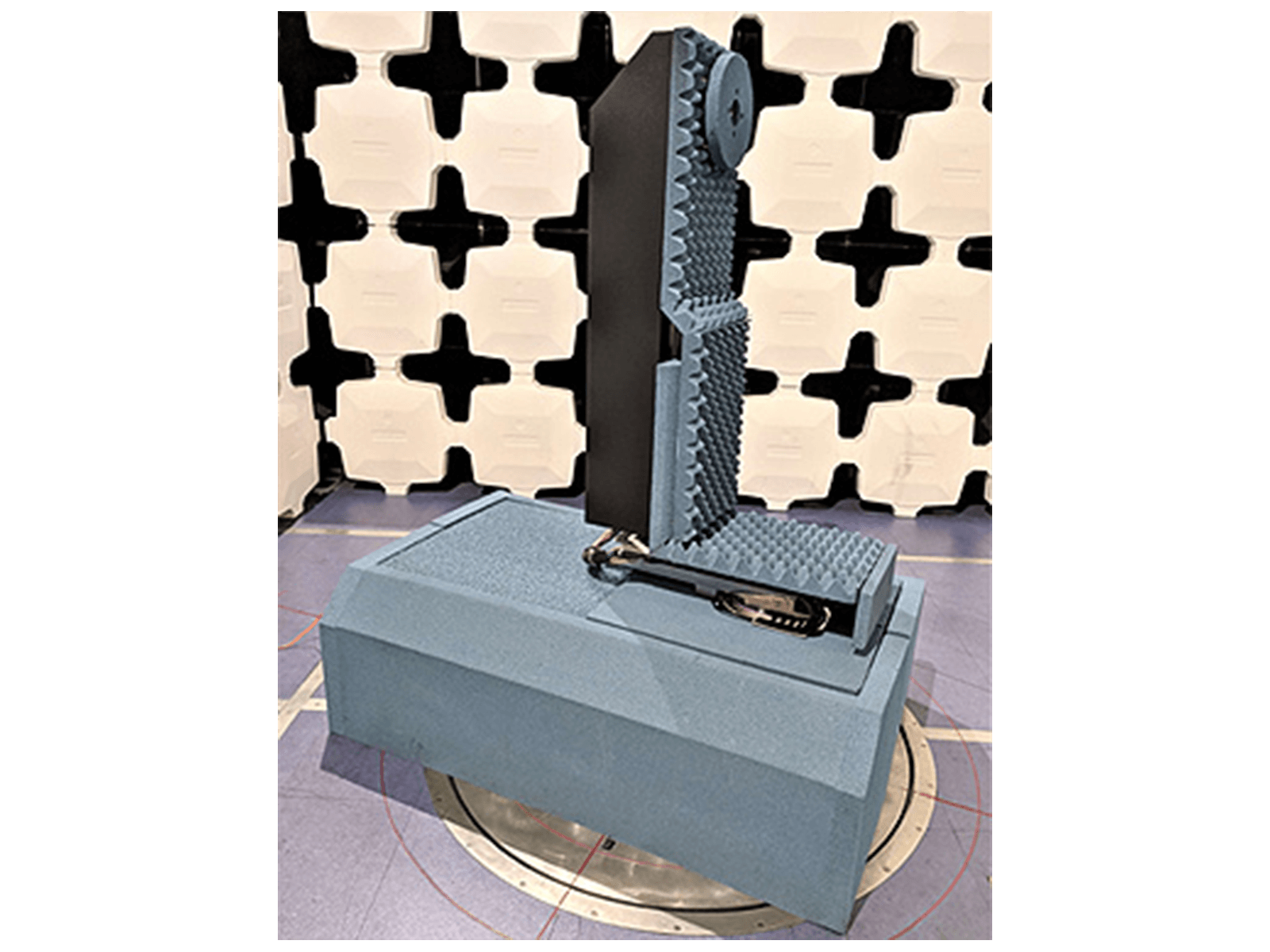

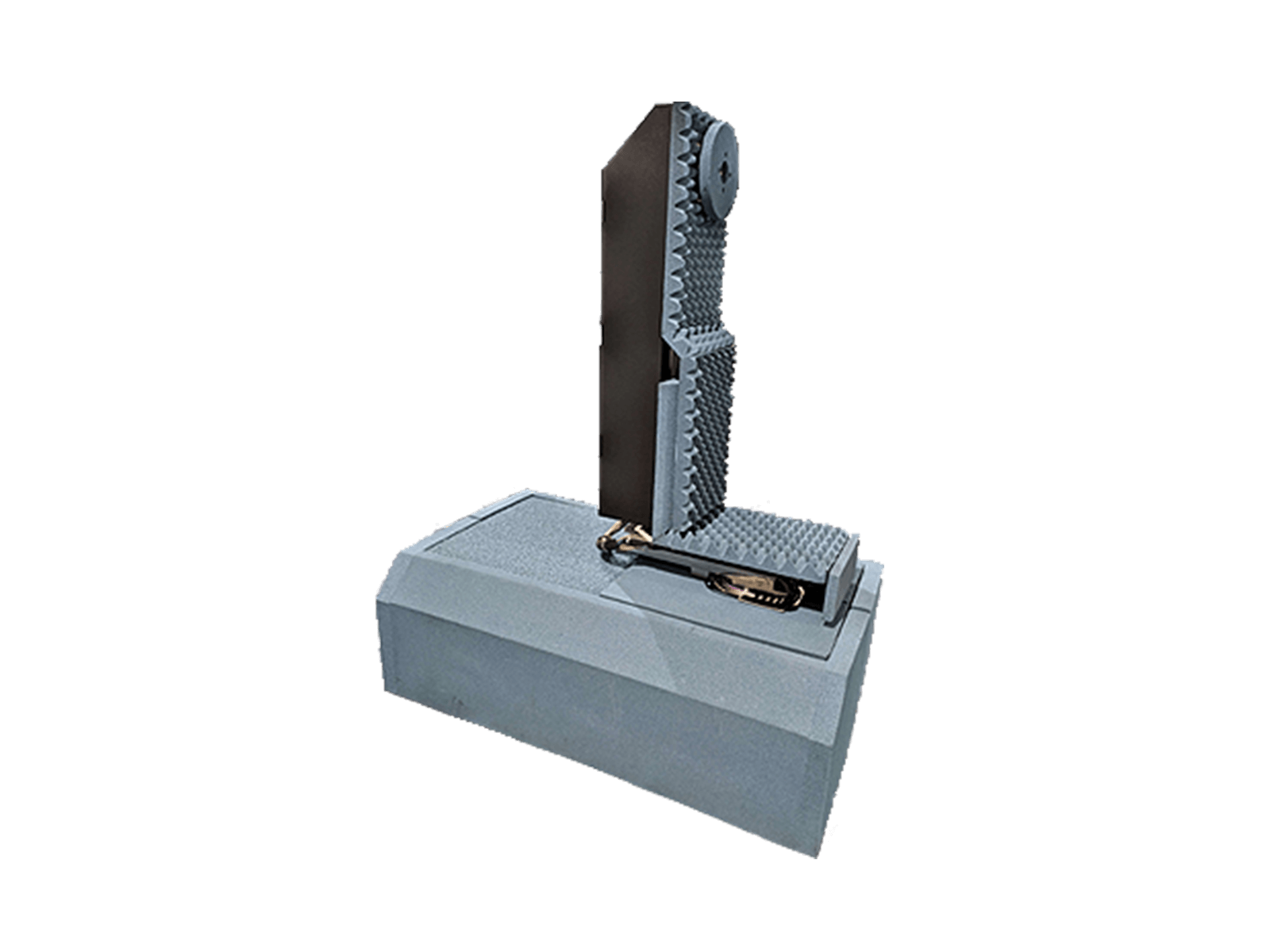

The Model 2304 Precision Mobile Multi-Axis Positioning System (MAPS) is engineered for smooth, independent 360‑degree rotation of a test object in both theta and phi axes, making it ideal for measuring spherical antenna patterns and totalradiated power.
Add to FavoritesRemove from Favorites
Add to Favorites
Smooth 360 Degree Rotation with Precise Results
The Model 2304 Precision Mobile Multi-Axis Positioning System (MAPS) is engineered for smooth, independent 360‑degree rotation of a test object in both theta and phi axes, making it ideal for measuring spherical antenna patterns and totalradiated power.
With a positioner accuracy of 0.3 degrees and fine resolution of 0.01 degrees, the 2304 delivers highly precise, repeatable positioning. Variable-speed axis rotation enhances flexibility for a wide range of test scenarios.
The Model 2304 is designed for ease of use and mobility within existing semi‑anechoic chambers and multipurpose test facilities. Optimized for radiated spurious emissions (RSE) measurements and other advanced testing needs, the 2304 offers a versatile, space‑efficient solution for accurate multi‑axis positioning in shared or dynamic test environments.
- 360 Degree Independent Rotation in Both Theta and Phi Axes
- Positioner Accuracy of 0.3 degrees
- Positioner Resolution of 0.01 degrees
- Variable Speed Axis Rotation
- Vairable Height on Theta Axis
- Slip ring for Power (+/-), RF (to 50 GHz), and USBconnectivity to the test object
- Casters Integrate both Wheels for Mobility and Feet forMeasurement Stability
- Easily Moved by One Person
- Suitable for Radiated Spurious Emissions (RSE) Measurements
- Fiber Optic Control Lines
