2122 Multi-Axis Positioner (MAPS)

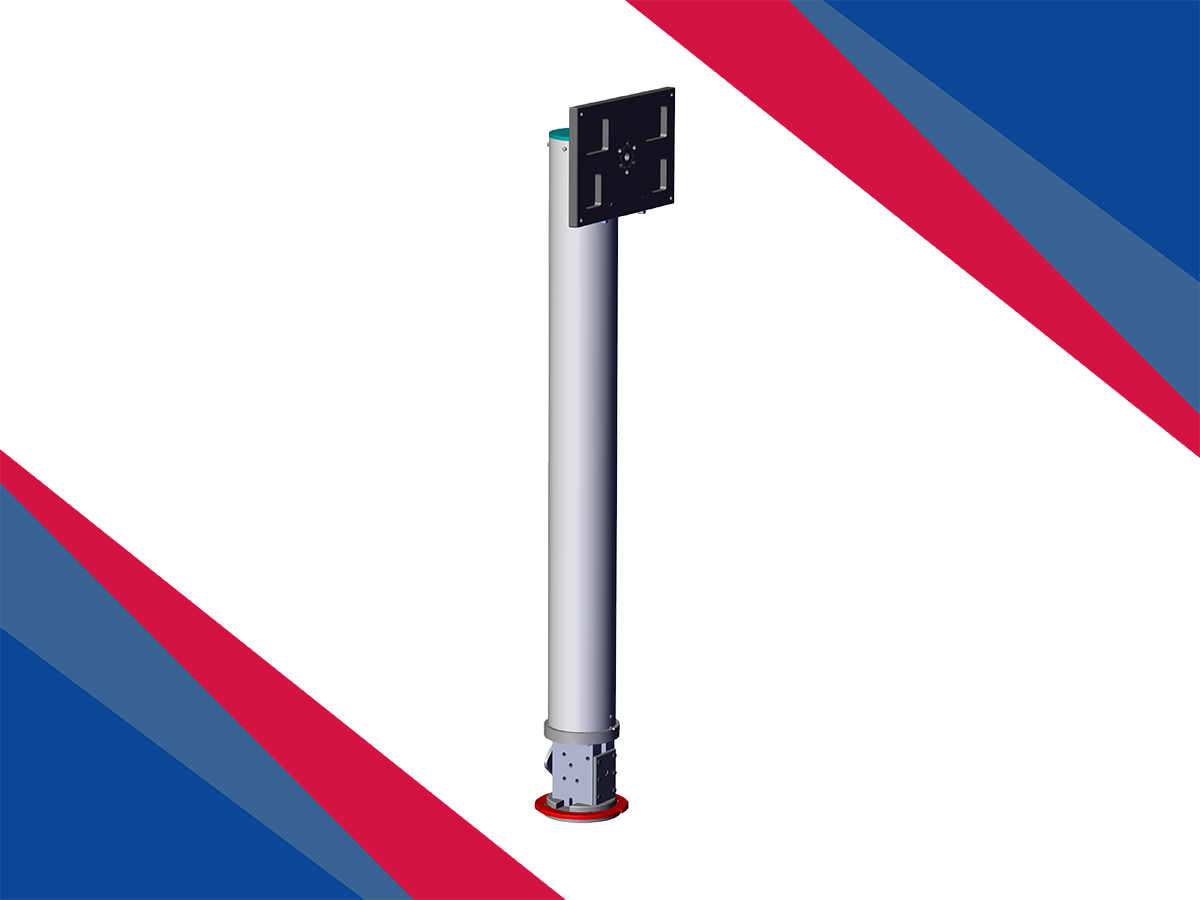

Model 2122 Heavy Duty Multi-Axis Positioning System (MAPS) is a heavy-duty multi-axis positioning system engineered to deliver smooth and precise rotation of test objects in both theta and phi axes.

Add to FavoritesRemove from Favorites

Industries: Wireless

Solutions: mm Wave, Wireless

Share:

Key details
Resources

Smooth| Accurate Rotation for a Variety of Wireless Testing in Demanding Environments

Model 2122 Heavy Duty Multi-Axis Positioning System (MAPS) is a heavy-duty multi-axis positioning system engineered to deliver smooth and precise rotation of test objects in both theta and phi axes. Optimized for measuring spherical antenna patterns and Total Radiated Power (TRP) of wireless devices, the Model 2122 is ideal for high-load and demanding test environments.
This robust system is deployed in several CTIA Authorized Test Labs (CATLs), supporting rigorous wireless performance testing and compliance verification.

360 Independent Rotation in Both Theta and Phi Axes,Continuous Rotation in Phi Axis
Angular Positioner Accuracy Better than -0.5 with EUT loadcentered on rotation axis
Variable Speed Axis Rotation
Convenience Outlet and Coaxial Rotary Joint Installedat Turntable Center
Suitable for RSE Testing
Testing With/Without SAM Phantom Head (Optional)
EMCenter™ Positioning Controller (Required)
IEEE-488-2 (GPIB) Compatible
Fiber Optic Control Lines
EMQuest™ EMQ-100 Integrated Automated Test and Measurement Software (Optional)
